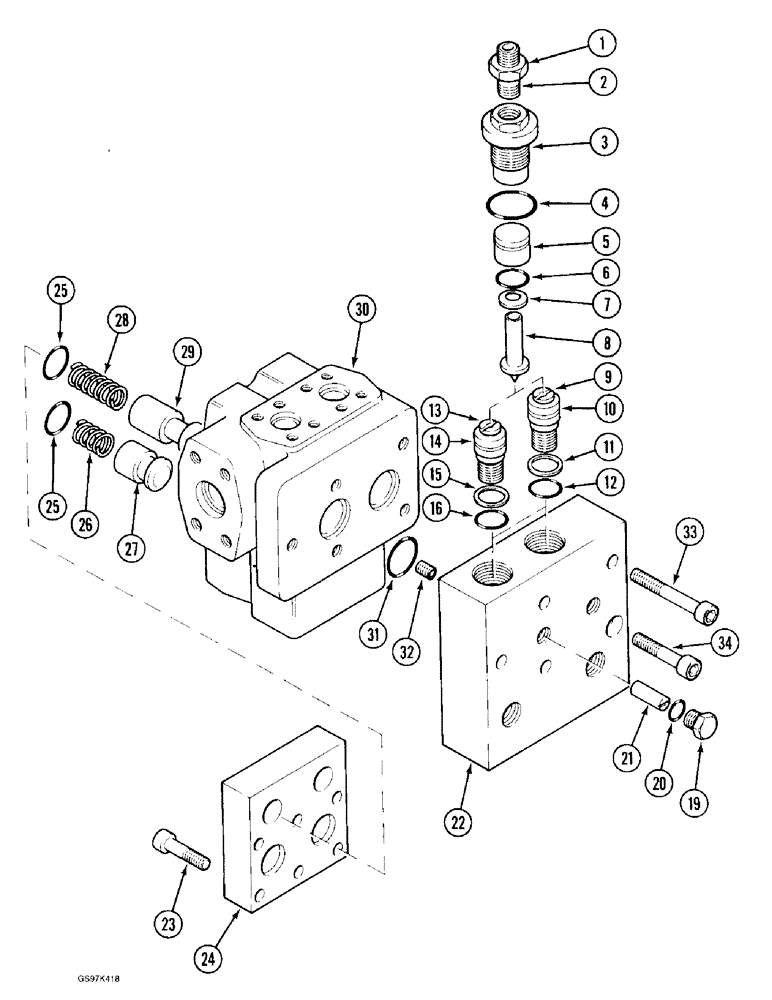

Запчасти Case 170C (8-138) - POWER SENSING VALVE (08) - HYDRAULICS

P3143338

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, Includes: P2543324 and Ref. 1-32

1шт.

P2543324

SHIN

BLOCK ASSEMBLY - power sensing valve, Includes: Ref. 1-12

1шт.

1

P34564

NUT

- locking

2шт.

2

P32859

SCREW

- set, adjusting

2шт.

3

P2037720

CAP

BODY - valve

2шт.

4

P130486

O-RING

- body

2шт.

5

P929835

TAPPET

SLEEVE - plunger

2шт.

6

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Sleeve (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

2шт.

7

P34909

RUBBER WASHER

SPRING - Belleville, plunger

1шт.

8

P1229870

GUIDE

PLUNGER - valve

2шт.

P4037702

VALVE POPPET

HOUSING ASSEMBLY - plunger seat, Includes: Ref. 9-12

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - plunger, order housing assembly P4037702

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - plunger seat, order housing assembly P4037702

1шт.

11

P4746098

BACK-UP RING

RING - backup, O-ring (Replaces ring P945217)

1шт.

12

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Housing (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

1шт.

P4037703

VALVE POPPET

HOUSING ASSEMBLY - plunger seat, Includes: 13-16

1шт.

13

NSS

NOT SOLD SEPARAT

SEAT - plunger, order housing assembly P4037703

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - plunger seat, order housing assembly P4037703

1шт.

15

P4746098

BACK-UP RING

RING - backup, O-ring (Replaces ring P945217)

1шт.

16

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Housing (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

1шт.

19

P1437455

PLUG

- valve block (Replaces plug P1737452)

2шт.

20

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

2шт.

21

NSS

NOT SOLD SEPARAT

PISTON - valve, order block assembly P2543324

2шт.

22

NSS

NOT SOLD SEPARAT

BLOCK - valve, order block assembly P2543324

1шт.

P4237786

SHIN

BLOCK AND HOUSING ASSEMBLY - power sensing, Includes: Ref. 23-32

1шт.

23

864-10050

HEX SOC SCREW,M10 x 50mm, Cl 8.8

Hex socket, 10 - 1.5 x 50 mm, Block mounting (Replaces bolt P32937)

6шт.

24

NSS

NOT SOLD SEPARAT

BLOCK - end, order block assembly P4237786

1шт.

25

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

Block (Replaces O-ring D54277) -121, 90 Duro, 1.049" ID x .103" Thk

4шт.

26

P38192

COMPRESSION SPRING

SPRING - poppet

2шт.

27

NSS

NOT SOLD SEPARAT

POPPET - power sensing valve, order block assembly P4237786

2шт.

28

P1038171

COMPRESSION SPRING

SPRING - spool

2шт.

29

NSS

NOT SOLD SEPARAT

SPOOL - power sensing valve, order block assembly P4237786

2шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - spool, order block assembly P4237786

1шт.

31

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

Spool housing (Replaces O-ring D54277) -121, 90 Duro, 1.049" ID x .103" Thk

2шт.

32

P233094

SCREW

PLUG - orifice

2шт.

33

P32954

SCREW

BOLT - valve block, long

4шт.

34

864-10050

HEX SOC SCREW,M10 x 50mm, Cl 8.8

Hex socket, 10 - 1.5 x 50 mm, Valve block, Short (Replaces bolt P32937)

1шт.
