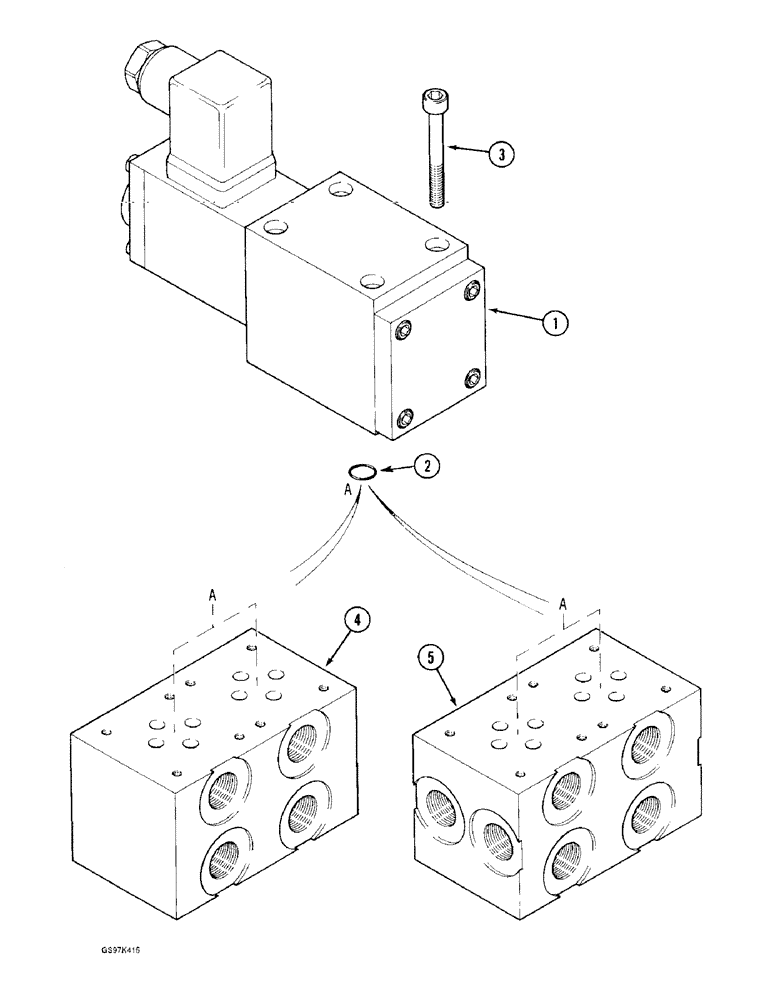

Запчасти Case 170C (8-132) - SOLENOID CONTROL VALVE, 35 BAR (08) - HYDRAULICS

P1843371

SHIN

VALVE ASSEMBLY - solenoid, 35 bar, Includes: Ref. 1-5

6шт.

1

NSS

NOT SOLD SEPARAT

VALVE - solenoid, order valve assembly P1843371

1шт.

2

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- valve to block (Replaces O-ring P1230430)

4шт.

3

864-5030

HEX SOC SCREW,M5 x 30mm, Cl 8.8

Valve to block (Replaces bolt P232916) Hex Soc Hd, M5 x 30, 8.8

4шт.

4

P3237722

LARGE PLATE

BLOCK - manifold, solenoid valve

1шт.

5

P3237734

LARGE PLATE

BLOCK - manifold, solenoid valve

1шт.
