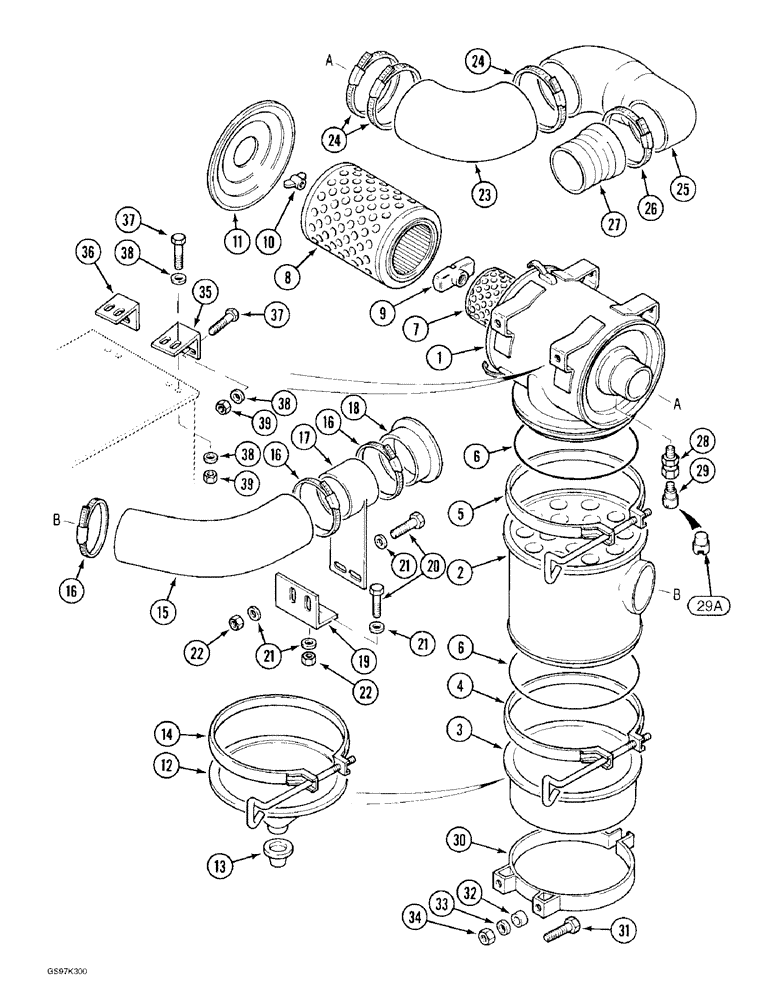

Запчасти Case 170C (2-2) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

P850553

AIR CLEANER

CLEANER ASSEMBLY - air, complete, also includes tube P1037418, item 28 below, Includes: Ref. 1-11

1шт.

1

P850548

BODY

- air cleaner

1шт.

2

P850557

BODY

- precleaner

1шт.

3

P850552

BOWL

CUP - dust, precleaner, without dust valve

1шт.

4

P1036959

CLAMP

- dust, Serial Range: cup-precleaner

1шт.

5

P1036958

CLAMP

- precleaner to air cleaner

1шт.

6

P1246069

SEAL

- precleaner to dust cup and air cleaner body

2шт.

7

A43657

FILTER

ELEMENT - secondary, inner

1шт.

8

A43656

FILTER

ELEMENT - primary, outer

1шт.

9

P2141610

INDICATOR

NUT - wing, safety indicator, secondary, Serial Range: element-body

1шт.

10

P34405

THUMB SCREW

NUT - wing, primary, Serial Range: element-body

1шт.

11

P740457

COVER

- end, air cleaner

1шт.

12

P1950533

BOWL

CUP - dust, precleaner, used with dust valve

1шт.

13

P450542

VALVE

- dust, rubber

1шт.

14

P3036951

CLAMP

- dust, Serial Range: cup-precleaner

1шт.

15

P5931905

LARGE HOSE

HOSE - air intake to air cleaner

1шт.

16

P2036959

COLLAR CLAMP

CLAMP - air intake hose

3шт.

17

P3450146

CONDUIT

TUBE - air cleaner intake

1шт.

18

P8046066

GASKET

ADAPTER - intake tube, rubber

1шт.

19

P1831651

ANGLE BAR

BRACKET - support, intake tube

1шт.

20

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

(Replaces bolt P833802) Hex, M10 x 50, 8.8

4шт.

21

P3528795

WASHER

SPACER - bracket bolt, 7 mm thick

8шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

4шт.

23

P6531984

LARGE HOSE

HOSE - air, Serial Range: cleaner-engine

1шт.

24

P2036959

COLLAR CLAMP

CLAMP - hose to air cleaner and tube

3шт.

25

P6531985

CONDUIT

TUBE - air, Serial Range: cleaner-engine

1шт.

26

P136901

CLAMP

- hose, at engine

2шт.

27

P6531983

LARGE HOSE

HOSE - air cleaner, at engine

1шт.

28

P1037418

PLUG

TUBE - air restriction indicator, included with P850553 air cleaner assembly

1шт.

29

P2141684

INDICATOR

SENDER - air restriction indicator, no longer available, order switch 1983640C1, item 29A

1шт.

29a

1983640C1

RESTRICTION SWITCH

SWITCH - air filter restriction

1шт.

30

P136947

COLLAR CLAMP

CLAMP - precleaner, includes bolt and nut

1шт.

31

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

(Replaces bolt P833802) Hex, M10 x 50, 8.8

2шт.

32

P4328730

WASHER

SPACER - body and clamp bolt, 20 mm thick

2шт.

33

P3528795

WASHER

SPACER - body and clamp bolt, 7 mm thick

2шт.

34

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

2шт.

35

P4825688

ANGLE BAR

BRACKET - support, air cleaner, inner

1шт.

36

P4825687

ANGLE BAR

BRACKET - support, air cleaner, outer

1шт.

37

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm (Replaces bolt P933818)

6шт.

38

P3528795

WASHER

SPACER - air cleaner mounting, 7 mm thick

10шт.

39

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

6шт.
