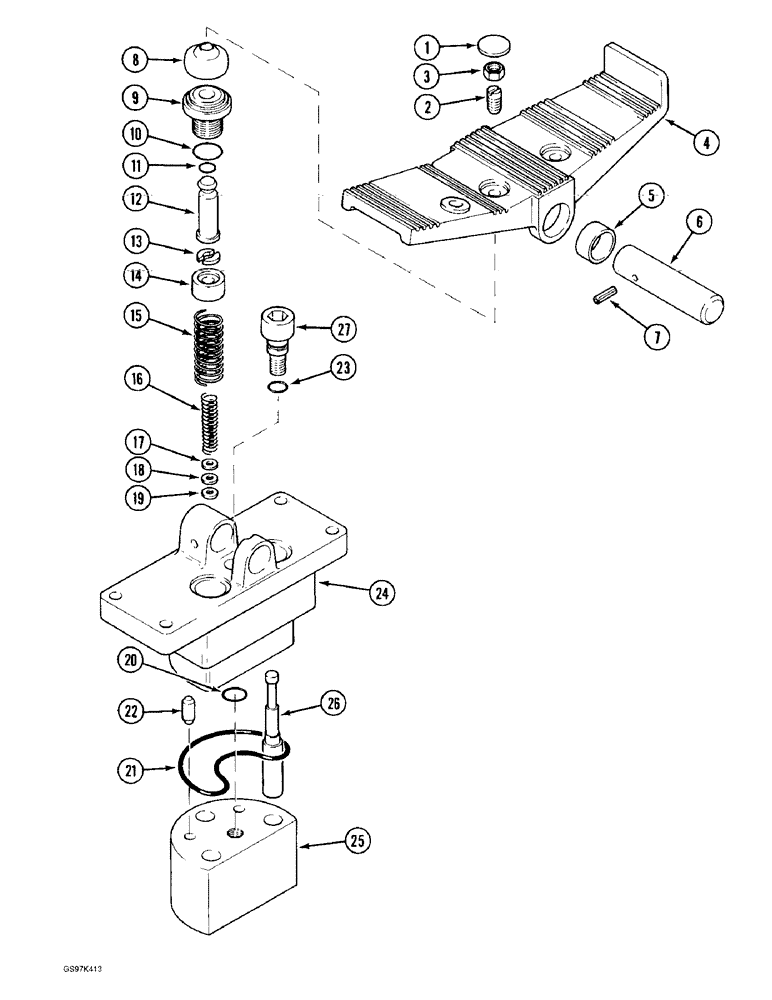

Запчасти Case 170C (8-128) - FOOT CONTROL VALVE, REXROTH MANUFACTURED (08) - HYDRAULICS

P1643394

BLOCK ASSY.

VALVE ASSEMBLY - foot control, Includes: P5242747 and Ref. 1-27

2-3шт.

P5242747

PEDAL

ASSEMBLY - foot, Includes: Ref. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - pedal set screw, order pedal assembly P5242747

1шт.

2

NSS

NOT SOLD SEPARAT

SCREW - set, foot pedal, order pedal assembly P5242747

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - hex, jam, order pedal assembly P5242747

1шт.

4

NSS

NOT SOLD SEPARAT

PEDAL - valve control, order pedal assembly P5242747

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - pedal, order pedal assembly P5242747

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - pedal pivot, order pedal assembly P5242747

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - roll, pivot shaft, order pedal assembly P5242747

1шт.

P3749679

KIT

PISTON ASSEMBLY - foot control valve, Includes: Ref. 8-12

2шт.

8

NSS

NOT SOLD SEPARAT

BOOT - piston

1шт.

Part of seal repair kit P/N P5449620.

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - piston, order piston assembly P3749679

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston guide, outer

1шт.

Part of seal repair kit P/N P5449620.

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston guide, inner

1шт.

Part of seal repair kit P/N P5449620.

1шт.

12

NSS

NOT SOLD SEPARAT

PISTON - foot control valve, order piston assembly P3749679

1шт.

P5449661

KIT

- spring and shim, Includes: Ref. 13-16

2шт.

13

NSS

NOT SOLD SEPARAT

ORIFICE - spring guide, order kit P5449661

1шт.

14

NSS

NOT SOLD SEPARAT

GUIDE - spring, order kit P5449661

1шт.

15

NSS

NOT SOLD SEPARAT

SPRING - outer, order kit P5449661

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING - inner, order kit P5449661

1шт.

17

P1545342

BLOCK

SHIM - 0.10 mm (0.004 inch) thick

1шт.

18

P1545342

BLOCK

SHIM - 0.20 mm (0.008 inch) thick

1шт.

19

P1545343

BLOCK

SHIM - 0.50 mm (0.020 inch) thick

1шт.

P5449620

KIT

- seal, Includes: Ref. 8, 10, 11, 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - body to block, small

1шт.

Part of seal repair kit P/N P5449620.

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - body to block, large

1шт.

Part of seal repair kit P/N P5449620.

1шт.

22

NSS

NOT SOLD SEPARAT

PIN -, Serial Range: block-body

2шт.

Part of seal repair kit P/N P5449620.

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - retainer stud

1шт.

Part of seal repair kit P/N P5449620.

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - foot control valve, order valve assembly P1643394

1шт.

25

NSS

NOT SOLD SEPARAT

BLOCK - foot pedal mounting, order valve assembly P1643394

1шт.

26

NSS

NOT SOLD SEPARAT

SPOOL - foot control valve, order valve assembly P1643394

2шт.

27

NSS

NOT SOLD SEPARAT

STUD - retainer, foot control valve, order valve assembly P1643394

1шт.

P5449620

KIT

- seal repair, Includes: Ref. 8, 10, 11 and 20 - 23

1шт.
