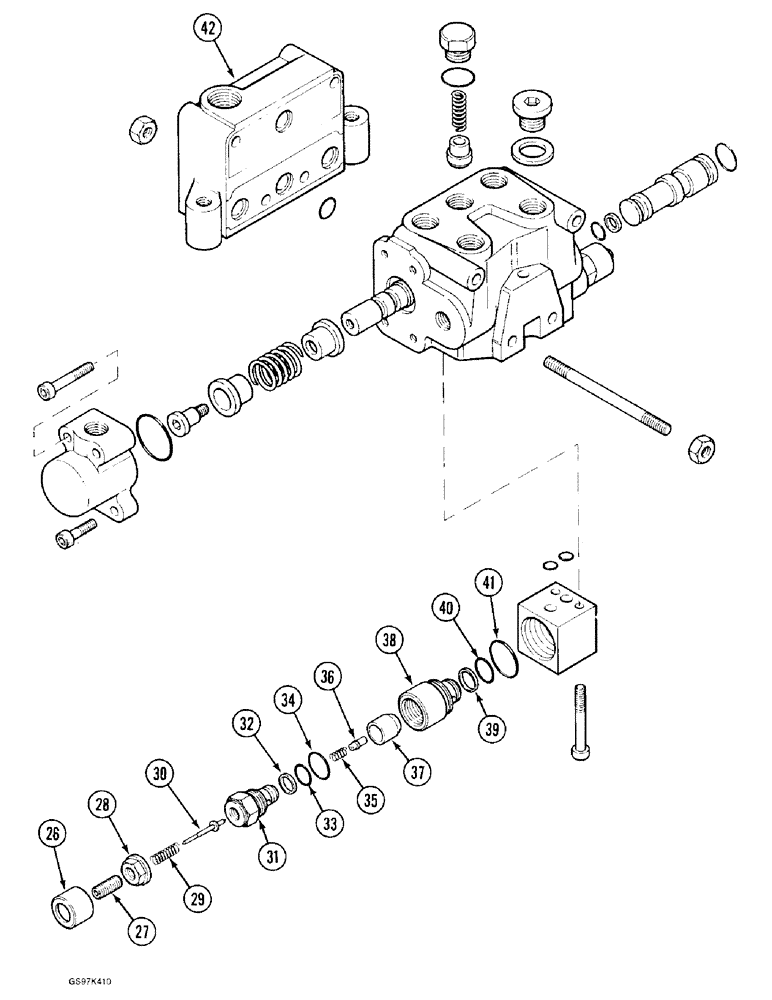

Запчасти Case 170C (8-122) - CONTROL VALVE FOR OPTIONS (08) - HYDRAULICS

P3143630

CARTRIDGE

ASSEMBLY - relief valve assembly, 370 bar, Includes: Ref.26-41

2шт.

26

NSS

NOT SOLD SEPARAT

CAP - circuit relief valve, order cartridge assembly P3143630

1шт.

27

NSS

NOT SOLD SEPARAT

SCREW - adjusting, order cartridge assembly P3143630

1шт.

28

NSS

NOT SOLD SEPARAT

NUT - jam, adjusting screw

1шт.

Part of circuit relief valve seal kit P/N P5449633.

1шт.

29

P1038223

SPRING

- poppet (Replaces spring P38298)

1шт.

30

NSS

NOT SOLD SEPARAT

PLUNGER - check, order cartridge assembly P3143630

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve, order cartridge assembly P3143630

1шт.

32

NSS

NOT SOLD SEPARAT

RING - backup, body3

1шт.

Part of circuit relief valve seal kit P/N P5449633.

1шт.

33

NSS

NOT SOLD SEPARAT

O-RING - body, small

1шт.

Part of circuit relief valve seal kit P/N P5449633.

1шт.

34

NSS

NOT SOLD SEPARAT

O-RING - body, large

1шт.

Part of circuit relief valve seal kit P/N P5449633.

1шт.

35

P1038221

SPRING

- poppet

1шт.

36

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve, order cartridge assembly P3143630

1шт.

37

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve, order cartridge assembly P3143630

1шт.

38

NSS

NOT SOLD SEPARAT

HOUSING - circuit relief valve, order cartridge assembly P3143630

1шт.

39

NSS

NOT SOLD SEPARAT

RING - backup, housing

1шт.

Part of circuit relief valve seal kit P/N P5449633.

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING - housing, small

1шт.

Part of circuit relief valve seal kit P/N P5449633.

1шт.

41

NSS

NOT SOLD SEPARAT

O-RING - housing, large

1шт.

Part of circuit relief valve seal kit P/N P5449633.

1шт.

42

P2243693

ELEMENT

SECTION - outlet

1шт.

P5449633

SEAL PACKAGE

KIT - seal, circuit relief valve, Includes: Ref. 28, 32 - 34 and 39 - 41

1шт.
