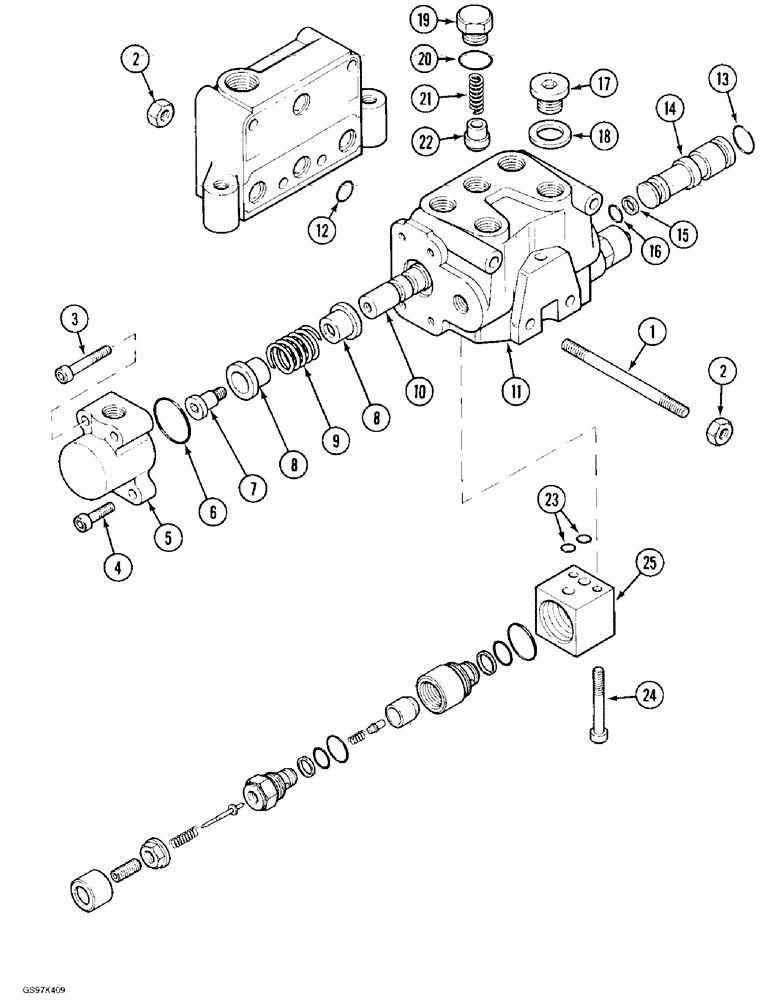

Запчасти Case 170C (8-120) - CONTROL VALVE FOR OPTIONS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
P2527712
TRUSS ROD
STUD - section retaining
4шт.
2
P1634589
NUT
- hex
8шт.
P2243690
DISTRIBUTOR
SECTION ASSEMBLY - inlet, Includes: Ref. 3-25
1шт.
3
864-6040
HEX SOC SCREW,M6 x 40mm, Cl 8.8
Mounting, Upper (Replaces bolt P432913) Hex Soc Hd, M6 x 40, 8.8
4шт.
4
864-6020
HEX SOC SCREW,M6 x 20mm, Cl 8.8
Mounting, lower (Replaces bolt P32911) Hex Soc Hd, M6 x 20, 8.8
4шт.
5
P2241022
CASE
CAP - spool
2шт.
6
NSS
NOT SOLD SEPARAT
O-RING - cap
2шт.
Part of seal kit P/N P5449657.
1шт.
7
P2033090
SCREW
BOLT - spool
2шт.
8
P8230112
CUPEL
SEAT - spring
4шт.
9
P38259
SPRING
- spool
2шт.
10
NSS
NOT SOLD SEPARAT
SPOOL - control valve, order section assembly P2243690
1шт.
11
NSS
NOT SOLD SEPARAT
SECTION - inlet, order section assembly P2243690
1шт.
12
NSS
NOT SOLD SEPARAT
O-RING - section
4шт.
Part of seal kit P/N P5449657.
1шт.
13
NSS
NOT SOLD SEPARAT
O-RING - plug, large
1шт.
Part of seal kit P/N P5449657.
1шт.
14
P2537402
BLANK-OFF PLUG
PLUG - section
1шт.
15
NSS
NOT SOLD SEPARAT
RING - backup, small O-ring
1шт.
Part of seal kit P/N P5449657.
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING - small
1шт.
Part of seal kit P/N P5449657.
1шт.
P2537410
PLUG
ASSEMBLY - section., Includes: Ref. 17, 18
1шт.
17
NSS
NOT SOLD SEPARAT
PLUG - section, order plug assembly P2537410
1шт.
18
NSS
NOT SOLD SEPARAT
SEAL - plug, order plug assembly P2537410
1шт.
19
P2537433
PLUG
- load check valve
1шт.
20
NSS
NOT SOLD SEPARAT
O-RING - plug
1шт.
Part of seal kit P/N P5449657.
1шт.
21
P38283
SPRING
- poppet
1шт.
22
P2643624
VALVE POPPET
POPPET - load check valve
1шт.
NSS
NOT SOLD SEPARAT
VALVE ASSEMBLY - circuit relief, 370 bar
2шт.
23
P330406
O-RING
- circuit relief valve
4шт.
24
P1332912
SCREW
BOLT - circuit relief valve mounting
2шт.
25
P3940393
BODY
BLOCK - circuit relief valve
1шт.
P5449657
SEAL PACKAGE
KIT - seal, Includes: Ref. 6, 12, 13, 15, 16 and 20, continued on next figure
1шт.
Выбрано товаров: 35
