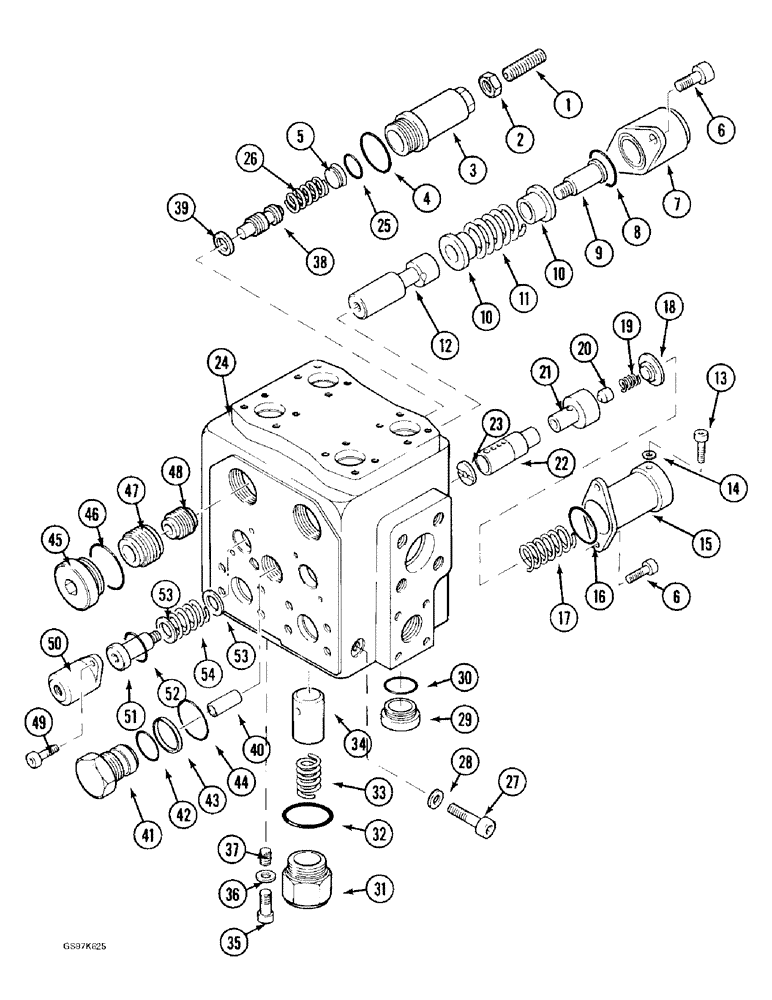

Запчасти Case 170C (8-119A) - SWING AND DRIVE CONTROL VALVE, SWING CONTROL VALVE SECTION (08) - HYDRAULICS

P3143614

DISTRIBUTOR

SECTION ASSEMBLY - swing control valve, Includes: Ref. 1-54

1шт.

1

P32850

SCREW

- adjusting

1шт.

2

P34564

NUT

- hex, locking

1шт.

3

P3143608

CAP

BODY - relief valve

1шт.

4

P130486

O-RING

- relief valve body

1шт.

5

P1229891

TAPPET

SEAT - plunger

1шт.

6

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

- end cap mounting

6шт.

7

P1640401

CAP

- end, spool

2шт.

8

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

- cap, 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)

2шт.

9

P930008

END FITTING

STUD - spring retaining, no longer available

2шт.

10

P2328851

CUPEL

SEAT - spring

4шт.

11

P1838162

COMPRESSION SPRING

SPRING - spool

2шт.

12

NSS

NOT SOLD SEPARAT

SPOOL - order section assembly P3143614

2шт.

13

P933005

SCREW

- air removal

1шт.

14

P1446072

WASHER

SEAL - screw

1шт.

15

P1640440

CAP

- end, speed regulating valve spool, order kit P3240460

1шт.

16

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- cap

1шт.

17

P1838159

COMPRESSION SPRING

SPRING - speed regulating valve

1шт.

18

P1429886

STOP

GUIDE - spring

1шт.

19

P738161

COMPRESSION SPRING

SPRING - poppet

1шт.

20

P1429885

VALVE POPPET

POPPET - speed regulating valve, order kit P3240460

1шт.

21

P1329621

PISTON

SHUTTLE - speed regulating valve, order kit P3240460

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL - speed regulating valve, order section assembly P3143614

1шт.

23

NSS

NOT SOLD SEPARAT

PLUG - spool end, order section assembly P3143614

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - control valve, order section assembly P3143614

1шт.

25

P1630451

O-RING

- seat

1шт.

26

P1538128

SPRING

- plunger

1шт.

27

P932912

SCREW

- Allen head, housing, side

2шт.

28

P1446072

WASHER

SEAL - screw

2шт.

29

P1337445

PLUG

ASSEMBLY - housing, Includes: Ref. 30

1шт.

30

P945293

WASHER, SEALING

O-RING - plug

1шт.

31

P930006

GUIDE

BODY - load check valve

2шт.

32

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

- body, load check valve, 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)

2шт.

33

P138102

COMPRESSION SPRING

SPRING - poppet, load check valve

2шт.

34

P2643397

VALVE POPPET

POPPET - load check valve

2шт.

35

P32919

SCREW

- Allen head, housing, bottom

2шт.

36

P2646060

BACK-UP RING

SEAL - screw

2шт.

37

P233094

SCREW

PLUG - housing, bottom

2шт.

P2643398

VALVE POPPET

PLUNGER ASSEMBLY - relief valve, Includes: Ref. 38-44

1шт.

38

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve, order plunger assembly P2643398

1шт.

39

P545234

SEAL

- plunger

1шт.

P5137709

SHIN

VALVE ASSEMBLY - speed regulating

1шт.

40

NSS

NOT SOLD SEPARAT

PISTON - speed regulating valve, order valve assembly P5137709

1шт.

41

NSS

NOT SOLD SEPARAT

BODY - speed regulating valve, order valve assembly P5137709

1шт.

42

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

(Replaces O-ring D63414) -117, 90 Duro, .799" ID x .103" Thk

1шт.

43

P1145245

BACK-UP RING

RING - backup, small O-ring

1шт.

44

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

- 1-5/16 ID x 3/32 inch wide

1шт.

45

P1737447

PLUG

- housing

4шт.

46

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- plug

4шт.

47

P943367

VALVE POPPET

VALVE - anticavitation

4шт.

48

P1343375

VALVE POPPET

VALVE - flow check

4шт.

49

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

- end cap mounting

4шт.

50

P1640401

CAP

- end, spool

2шт.

51

P930007

END FITTING

STUD - spring retaining

2шт.

52

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

- cap, 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)

2шт.

53

P3128701

WASHER

- spring retaining

4шт.

54

P1638101

COMPRESSION SPRING

SPRING - spool

2шт.
