Запчасти Case 170C (8-118) - SWING AND DRIVE CONTROL VALVE, SWING CONTROL VALVE SECTION (08) - HYDRAULICS

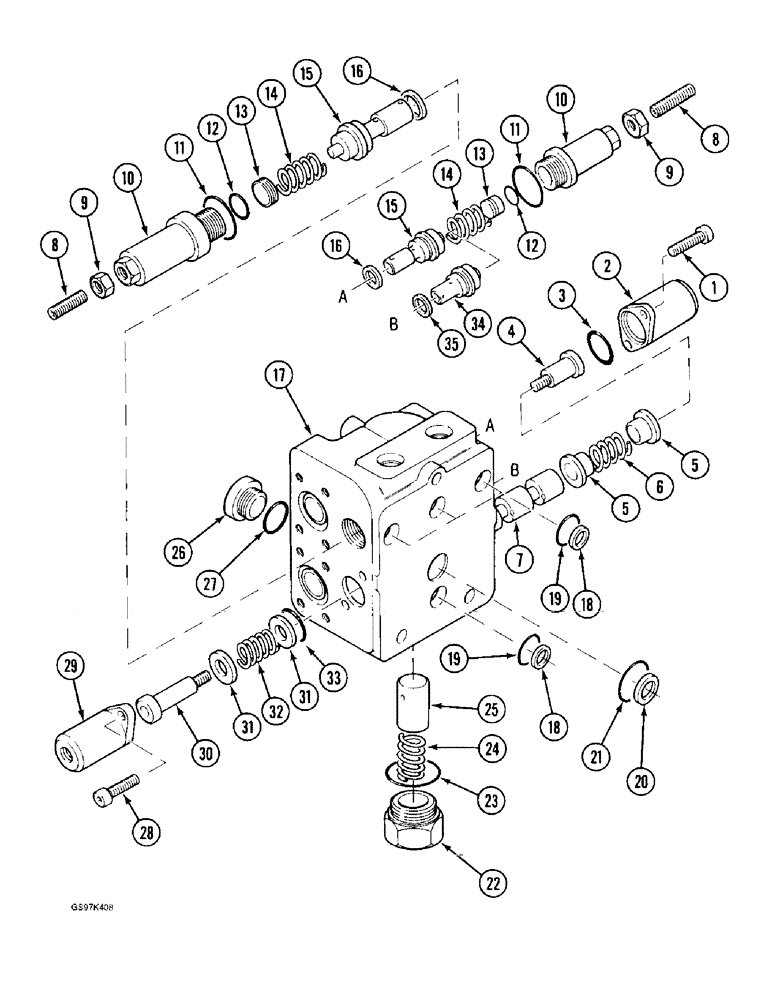

Схема запчастей Case 170C - (8-118) - SWING AND DRIVE CONTROL VALVE, SWING CONTROL VALVE SECTION (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

P3143607

DISTRIBUTOR

SECTION ASSEMBLY - swing control valve, no longer available, order section assembly P3143614, parts list, Figure 8-119A, Includes: Ref. 1-35

1шт.

1

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

- end cap mounting

2шт.

2

P1640401

CAP

- end, swing control valve spool

1шт.

3

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

- end cap, 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)

1шт.

4

P930008

END FITTING

STUD - spring retaining, no longer available

1шт.

5

P2328851

CUPEL

RETAINER - spring

2шт.

6

P1838162

COMPRESSION SPRING

SPRING - swing control valve

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - swing control valve, order section assembly P3143607

1шт.

8

P32850

SCREW

- set, adjusting

3шт.

9

P34564

NUT

- hex, locking

3шт.

10

P3143608

CAP

BODY - relief valve

3шт.

11

P130486

O-RING

- valve body

3шт.

12

P1630451

O-RING

- seat

3шт.

13

P1229891

TAPPET

SEAT - plunger

3шт.

14

P1538128

SPRING

- plunger

3шт.

P2643399

VALVE POPPET

PLUNGER ASSEMBLY - valve, Includes: Ref. 15, 16

2шт.

15

NSS

NOT SOLD SEPARAT

PLUNGER - valve, order plunger assembly P2643399

1шт.

16

P545234

SEAL

- plunger

1шт.

17

NSS

NOT SOLD SEPARAT

BLOCK - swing control valve, order section assembly P3143607

1шт.

18

P1745337

BACK-UP RING

RING - retaining, small O-ring

4шт.

19

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

(Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

4шт.

20

P1745338

BACK-UP RING

RING - retaining, large O-ring

1шт.

21

P1230443

O-RING

- large

1шт.

22

P930006

GUIDE

PLUG - load check valve

1шт.

23

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

- plug, 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)

1шт.

24

P138102

COMPRESSION SPRING

SPRING - poppet

1шт.

25

P2643397

VALVE POPPET

POPPET - load check valve

1шт.

26

P237405

PLUG

- block

1шт.

27

P30491

O-RING

- plug

1шт.

28

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

- end cap mounting

2шт.

29

P1640401

CAP

- end, swing control valve spool

1шт.

30

P930007

END FITTING

STUD - spring retaining

1шт.

31

P3128701

WASHER

- spring retaining

2шт.

32

P1638101

COMPRESSION SPRING

SPRING - spool

1шт.

33

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

- block, 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)

1шт.

P2643398

VALVE POPPET

PLUNGER ASSEMBLY - valve, Includes: Ref. 34, 35

1шт.

34

NSS

NOT SOLD SEPARAT

PLUNGER - valve, order plunger assembly P2643398

1шт.

35

P545234

SEAL

- plunger

1шт.

Выбрано товаров: 38
