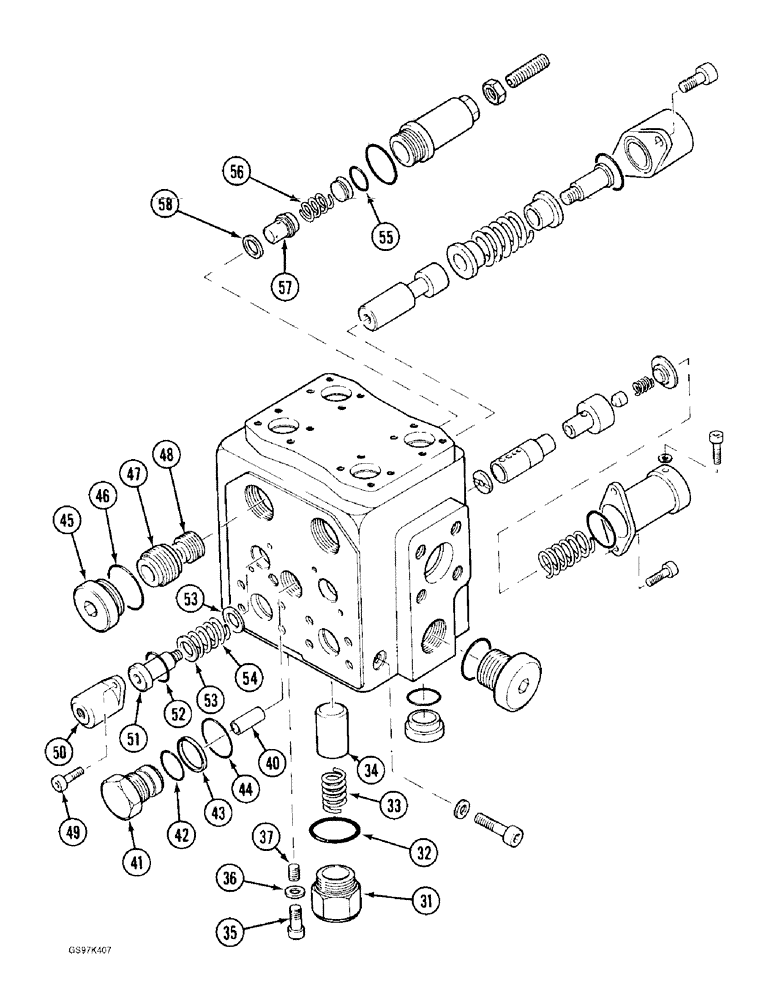

Запчасти Case 170C (8-116) - SWING AND DRIVE CONTROL VALVE, DRIVE CONTROL VALVE SECTION (08) - HYDRAULICS

REF

INSTRUCTION

SECTION ASSEMBLY - drive control valve, continued

1шт.

31

P930006

GUIDE

BODY - load check valve

2шт.

32

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

- valve body, 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)

2шт.

33

P138102

COMPRESSION SPRING

SPRING - poppet

2шт.

34

P2643397

VALVE POPPET

POPPET - load check valve

2шт.

35

P32919

SCREW

- Allen head, block, bottom

2шт.

36

P2646060

BACK-UP RING

SEAL - screw

2шт.

37

P233094

SCREW

PLUG - block

2шт.

P5137709

SHIN

VALVE ASSEMBLY - speed regulating, Includes: 40-44

1шт.

40

NSS

NOT SOLD SEPARAT

PISTON - speed regulating valve, order valve assembly P5137709

1шт.

41

NSS

NOT SOLD SEPARAT

BODY - speed regulating valve, order valve assembly P5137709

1шт.

42

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

(Replaces O-ring D63414) -117, 90 Duro, .799" ID x .103" Thk

1шт.

43

P1145245

BACK-UP RING

RING - backup, small O-ring

1шт.

44

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

- large, 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)

1шт.

45

P1737447

PLUG

- block

4шт.

46

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- plug

4шт.

47

P943367

VALVE POPPET

VALVE - anticavitation

4шт.

48

P1343375

VALVE POPPET

VALVE - flow check

4шт.

49

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

- end cap mounting

4шт.

50

P1640401

CAP

- end, drive valve spool

2шт.

51

P930007

END FITTING

STUD - spring retaining

2шт.

52

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

- cap, 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)

2шт.

53

P3128701

WASHER

- spring retaining

4шт.

54

P1638101

COMPRESSION SPRING

SPRING - drive valve spool

2шт.

55

P1630451

O-RING

- seat

1шт.

56

P1538128

SPRING

- plunger

1шт.

P2643398

VALVE POPPET

PLUNGER ASSEMBLY - valve, Includes: Ref. 57, 58

1шт.

57

NSS

NOT SOLD SEPARAT

PLUNGER - valve, order plunger assembly P2643398

1шт.

58

P545234

SEAL

- plunger

1шт.
