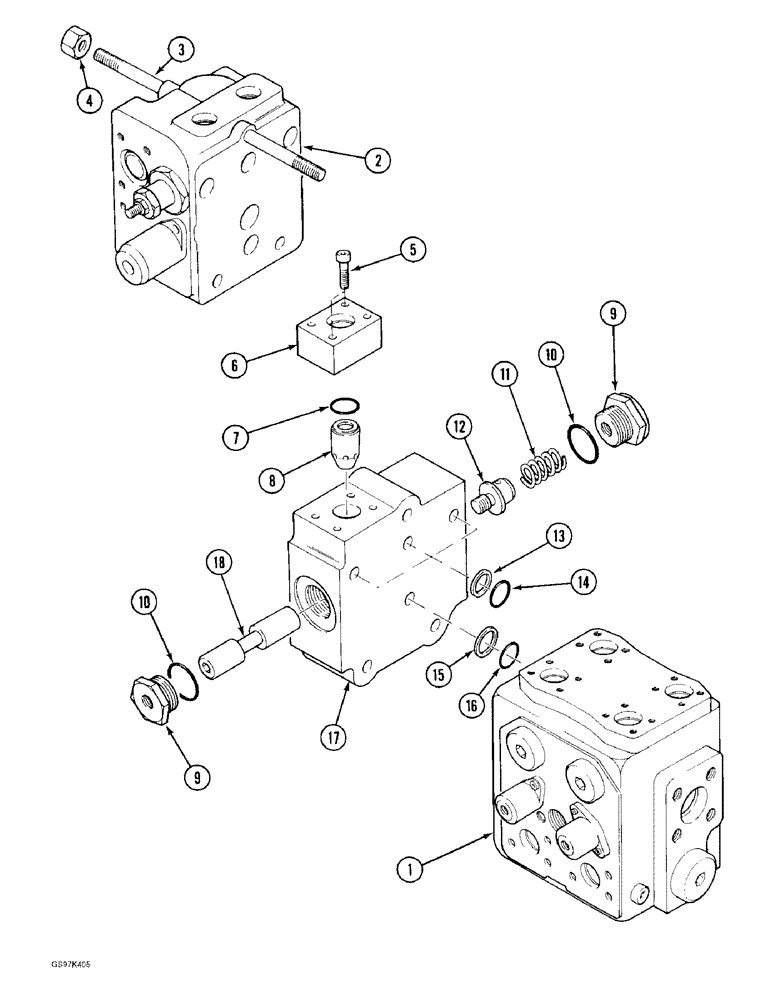

Запчасти Case 170C (8-112) - SWING AND DRIVE CONTROL VALVE, CENTER BLOCK (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - drive control, parts list, Figures 8-114 and 8-116

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - swing control, parts list, Figure 8-118 or 8-119A

1шт.

3

P1827708

THREADED ROD

ROD - valve mounting

3шт.

4

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10 (Replaces nut P34169)

3шт.

P1743672

SELECTOR

BLOCK ASSEMBLY - center, Includes: Ref. 5-18

1шт.

5

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

SCREW, Hex Soc Hd, M10 x 30, 8.8

2шт.

6

P2123325

SHIN

BLOCK - check valve

1шт.

7

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

- block, 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)

1шт.

8

P1829809

VALVE POPPET

VALVE - check, center block

1шт.

9

P2337420

PLUG

- block

2шт.

10

P130486

O-RING

- plug

2шт.

11

P1838108

COMPRESSION SPRING

SPRING - spool

1шт.

12

P1627927

STOP

GUIDE - spring

1шт.

13

P1745337

BACK-UP RING

RING - backup, upper O-ring

3шт.

14

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Upper (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

3шт.

15

P1745338

BACK-UP RING

RING - backup, lower O-ring

1шт.

16

P1230443

O-RING

- lower

1шт.

17

NSS

NOT SOLD SEPARAT

BLOCK - center, order block assembly P1743672

1шт.

18

NSS

NOT SOLD SEPARAT

SPOOL - center block, order block assembly P1743672

1шт.
