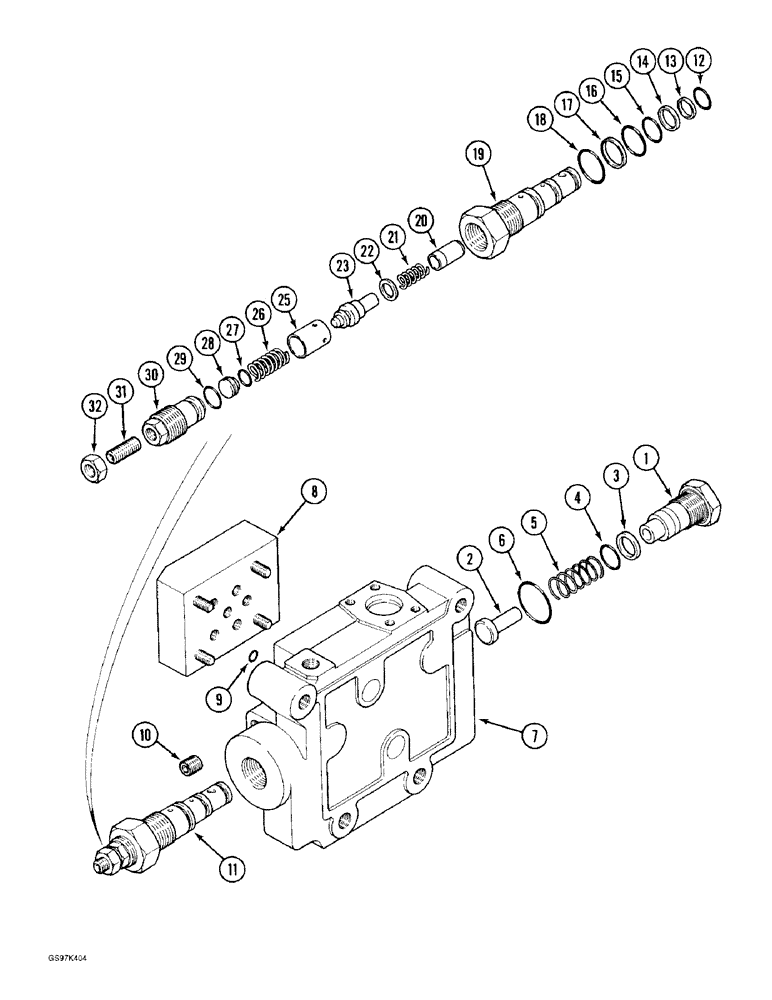

Запчасти Case 170C (8-110) - ATTACHMENT CONTROL VALVE, MAIN RELIEF VALVE, CHECK VALVE, END INLET (08) - HYDRAULICS

P1943662

LARGE PLATE

SECTION ASSEMBLY - check valve, end inlet, Includes: Ref. 1-32

1шт.

1

P3843607

VALVE POPPET

VALVE ASSEMBLY - check, body (Replaces valve assembly P1943683), Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

POPPET - check valve, order valve assembly P3843607

1шт.

3

P1945331

OIL SEAL

RING - backup, small O-ring

1шт.

4

238-6123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

(Replaces O-ring R30990) -123, 90 Duro, 1.174" ID x .103" Thk

1шт.

5

P738197

COMPRESSION SPRING

SPRING - poppet

1шт.

6

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

- 1-5/16 ID x 3/32 inch wide (Replaces O-ring A43669)

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - valve section, order section assembly P1943662

1шт.

8

P1943648

VALVE

BLOCK - selector

1шт.

9

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk (Replaces O-ring P1630460)

6шт.

10

P1037475

PLUG

- body

1шт.

11

P1943654

CARTRIDGE

VALVE ASSEMBLY - main relief, heavy lift valve section, Includes: 12-32

1шт.

12

P30318

O-RING

- relief valve

1шт.

13

P1245529

RING - backup, O-ring (Replaces ring P5346092)

1шт.

14

P1945329

BACK-UP RING

RING - backup, O-ring

1шт.

15

P1230465

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

- relief valve (Replaces O-ring P1630457)

1шт.

16

P1230487

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

- relief valve

1шт.

17

P1945330

BACK-UP RING

RING - backup, O-ring

1шт.

18

P1630459

GASKET

O-RING - relief valve

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - relief valve, order valve assembly P1943654

1шт.

20

NSS

NOT SOLD SEPARAT

POPPET - relief valve, order valve assembly P1943654

1шт.

21

P138102

COMPRESSION SPRING

SPRING - poppet

1шт.

P1943650

VALVE POPPET

PLUNGER ASSEMBLY - valve, Includes: Ref. 22, 23

1шт.

22

P945270

WASHER, SEALING

SEAL - plunger

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - plunger, order plunger assembly P1943650

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE - spring, order valve assembly P1943654

1шт.

26

P1038138

COMPRESSION SPRING

SPRING - plunger

1шт.

27

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

Spring seat (Replaces O-ring D48359) -113, 90 Duro, .549" ID x .103" Thk

1шт.

28

NSS

NOT SOLD SEPARAT

SEAT - spring, order valve assembly P1943654

1шт.

29

P1630456

O-RING

- body

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly P1943654

1шт.

31

P33085

SCREW

- set, adjusting

1шт.

32

P34564

NUT

- locking

1шт.
