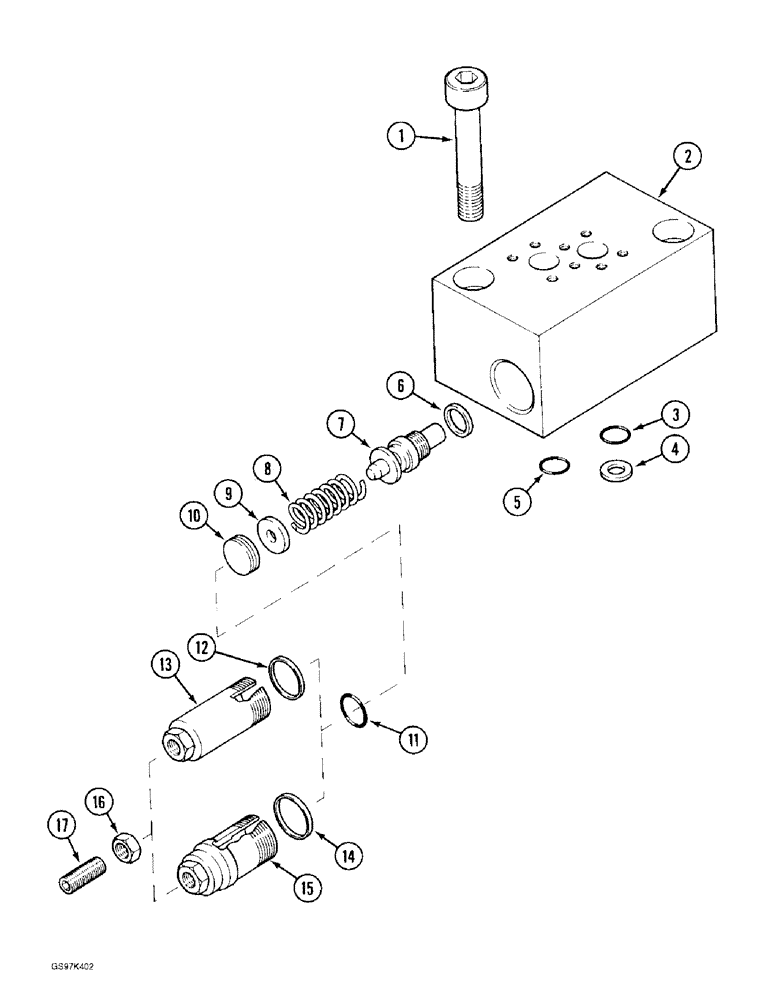

Запчасти Case 170C (8-106) - ATTACHMENT CONTROL VALVE, CIRCUIT RELIEF VALVES (08) - HYDRAULICS

P1943628

SHOCK ABSORBER

VALVE ASSEMBLY - circuit relief, three used with P.I.N. 74501 (2) 74502 to (2) 74662

2-3шт.

P1943628

SHOCK ABSORBER

VALVE ASSEMBLY - circuit relief, three used with P.I.N. 74501, Start Serial: 0230

2-3шт.

1

P532993

SCREW

BOLT - mounting

2шт.

2

NSS

NOT SOLD SEPARAT

BLOCK - valve, order valve assembly P1943628

1шт.

3

P630426

O-RING

- block

2шт.

4

K262716

BACK-UP RING

RING - block (Replaces spacer P945258)

2шт.

5

P130490

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

- block

1шт.

P3237711

VALVE POPPET

PLUNGER ASSEMBLY - valve, Includes: Ref. 6, 7

2шт.

6

P945270

WASHER, SEALING

SEAL - plunger

1шт.

7

NSS

NOT SOLD SEPARAT

PLUNGER - valve, order plunger assembly P3237711

1шт.

8

P1538128

SPRING

- plunger

2шт.

9

P5630199

STOP

SPACER - spring

2шт.

10

P1229891

TAPPET

PLUG - housing

2шт.

11

P1630451

O-RING

- housing

2шт.

12

P1245209

COPPER SEAL

SPACER - housing, used with P729769 housing

2шт.

13

P729769

CAP

HOUSING - valve, if used

2шт.

14

P6146048

GASKET

SPACER - housing, used with P1540471 housing

2шт.

15

P1540471

CAP

HOUSING - valve, if used

2шт.

16

P34564

NUT

- locking

2шт.

17

P33085

SCREW

- set, adjusting

2шт.
