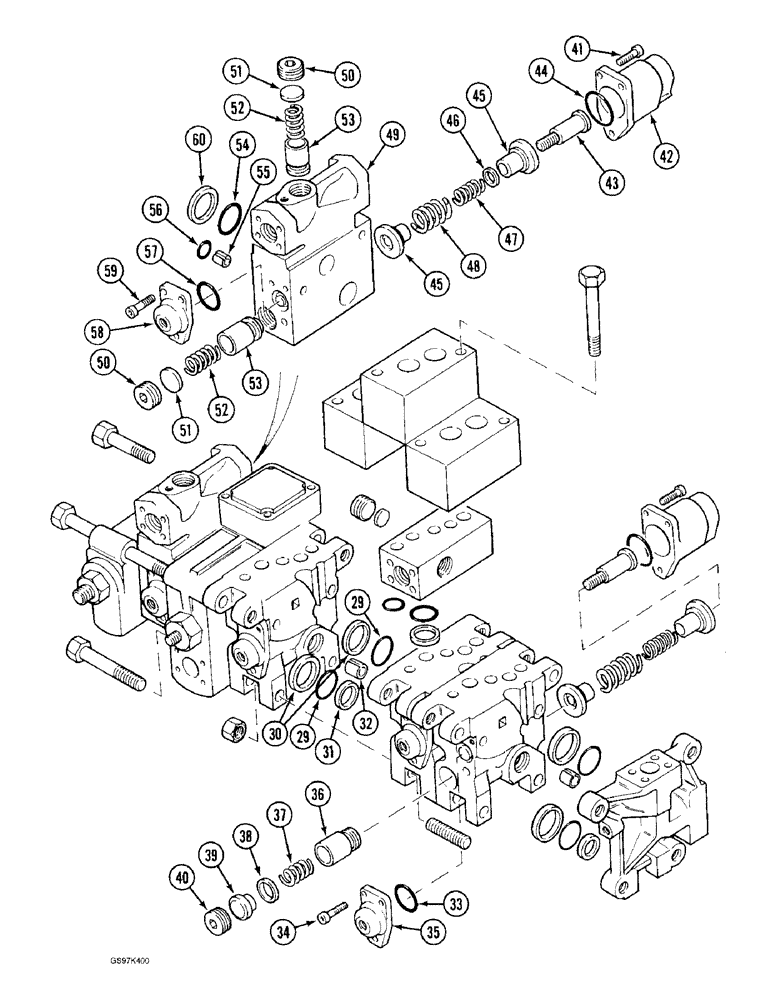

Запчасти Case 170C (8-102) - ATTACHMENT CONTROL VALVE, BOOM, ARM, TOOL AND PARALLEL ARM SECTION (08) - HYDRAULICS

REF

INSTRUCTION

SECTION ASSEMBLY - boom, arm and tool, continued, Includes: Ref. 29-40

3шт.

29

P630426

O-RING

- body

2шт.

30

K262716

BACK-UP RING

RING - backup (Replaces ring P945258)

2шт.

31

P2045403

WASHER

RING - backup, steel

1шт.

32

P35754

SPLIT PIN/SAFETY PIN

PIN - roll, body

2шт.

33

P130412

O-RING

- cover

1шт.

34

P732909

SCREW

BOLT - mounting

3шт.

35

P2643679

CAP

- end, section

1шт.

36

P929914

VALVE POPPET

POPPET - valve section

1шт.

37

P1038179

COMPRESSION SPRING

SPRING - poppet

1шт.

38

P545228

SEAL

SPACER - spring

1шт.

39

P827895

BLANK-OFF PLUG

RETAINER - spring

1шт.

40

P737441

PLUG

- body

1шт.

P2643628

DISTRIBUTOR

SECTION ASSEMBLY - parallel arm, Includes: 41-60

1шт.

41

P732909

SCREW

BOLT - mounting

3шт.

42

P2643678

CAP

- end, section

1шт.

43

P1229860

END FITTING

STUD - spring retaining

1шт.

44

P130412

O-RING

- cover

1шт.

45

P5130110

CUPEL

RETAINER - spring

2шт.

46

P2728850

SPACER

- spring

1шт.

47

P1538118

COMPRESSION SPRING

SPRING - small, inner

1шт.

48

P1538119

COMPRESSION SPRING

SPRING - large, outer

1шт.

49

NSS

NOT SOLD SEPARAT

BODY - section, order section assembly P2643628

1шт.

50

P737453

PLUG

- section

2шт.

51

P645050

HOLE PLUG BUTTON

SPACER - plug

2шт.

52

P738197

COMPRESSION SPRING

SPRING - poppet

2шт.

53

P529922

VALVE

POPPET - section

2шт.

54

P130450

O-RING

- block, large (Replaces O-ring P430455)

2шт.

55

P35754

SPLIT PIN/SAFETY PIN

PIN - roll, block

2шт.

56

L30522

O-RING,0.492" ID x 0.106" Width

- block, small

1шт.

57

P130412

O-RING

- spool

1шт.

58

P2643679

CAP

- end, section

1шт.

59

P732909

SCREW

BOLT - mounting

3шт.

60

P8846066

BACK-UP RING

RING - backup, large O-ring

2шт.
