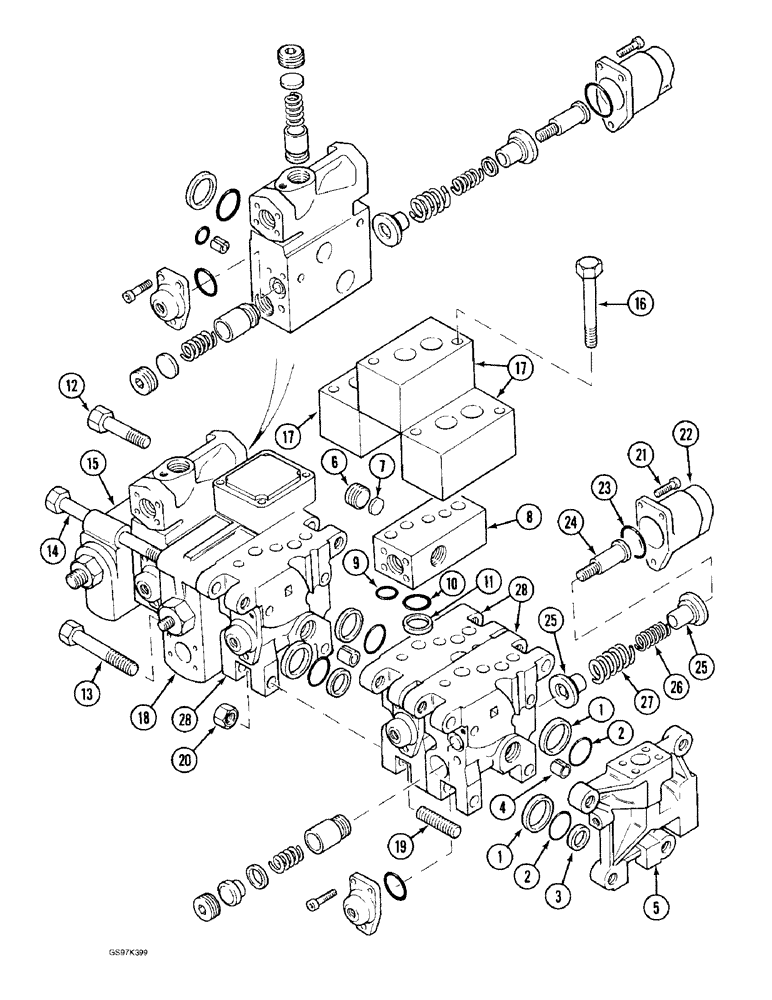

Запчасти Case 170C (8-100) - ATTACHMENT CONTROL VALVE, BOOM, ARM, TOOL AND PARALLEL ARM SECTION (08) - HYDRAULICS

P2243672

LARGE PLATE

PLATE ASSEMBLY - control valve end, Includes: Ref. 1-5

1шт.

1

K262716

BACK-UP RING

RING - backup (Replaces ring P945258)

2шт.

2

P630426

O-RING

- end plate

2шт.

3

P2045403

WASHER

RING - backup, steel

1шт.

4

P35754

SPLIT PIN/SAFETY PIN

PIN - roll, end plate

2шт.

5

NSS

NOT SOLD SEPARAT

PLATE - control valve end, order plate assembly P2243672

1шт.

P2243673

BLOCK ASSY.

BLOCK ASSEMBLY - adapter, Includes: Ref. 6-10

1шт.

6

P1737486

PLUG

- block

2шт.

7

P145045

HOLE PLUG BUTTON

BUTTON - block

2шт.

8

NSS

NOT SOLD SEPARAT

BLOCK - adapter, order block assembly P2243673

1шт.

9

P130490

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

- block,small

1шт.

10

P630426

O-RING

- block, large

2шт.

11

K262716

BACK-UP RING

RING - backup, large O-ring (Replaces ring P945258)

2шт.

12

P932941

SCREW

BOLT - hex, upper

2шт.

13

P2033084

SCREW

BOLT - hex, lower

2шт.

14

P532934

SCREW

BOLT - mounting

4шт.

15

P1943662

LARGE PLATE

VALVE ASSEMBLY - relief, main, parts list Figure 8-110

1шт.

16

P2033083

SCREW

BOLT - section

2шт.

17

P1943628

SHOCK ABSORBER

VALVE ASSEMBLY - circuit relief, parts list Figure 8-106, if used

2-3шт.

17

P1943629

SHOCK ABSORBER

VALVE ASSEMBLY - circuit relief, parts list Figure 8-108, if used

1шт.

18

P2643629

SELECTOR

SECTION ASSEMBLY - heavy lift, parts list Figure 8-104

1шт.

19

P1127737

THREADED ROD

STUD - section retaining

12шт.

20

825-1418

NUT,M18, Cl 8

- hex, 18 mm (Replaces nut P34180)

24шт.

P1943641

DISTRIBUTOR

SECTION ASSEMBLY - boom, arm, and tool, Includes: Ref. 21-28

3шт.

21

P732909

SCREW

BOLT - mounting

3шт.

22

P2643678

CAP

- end, section

1шт.

23

P130412

O-RING

- cover

1шт.

24

P1229860

END FITTING

STUD - spring retaining

1шт.

25

P5130110

CUPEL

RETAINER - spring

2шт.

26

P1338193

COMPRESSION SPRING

SPRING - small, inner

1шт.

27

P1338194

COMPRESSION SPRING

SPRING - large, outer

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - section, order section assembly P1943641 Continued on next figure

1шт.
