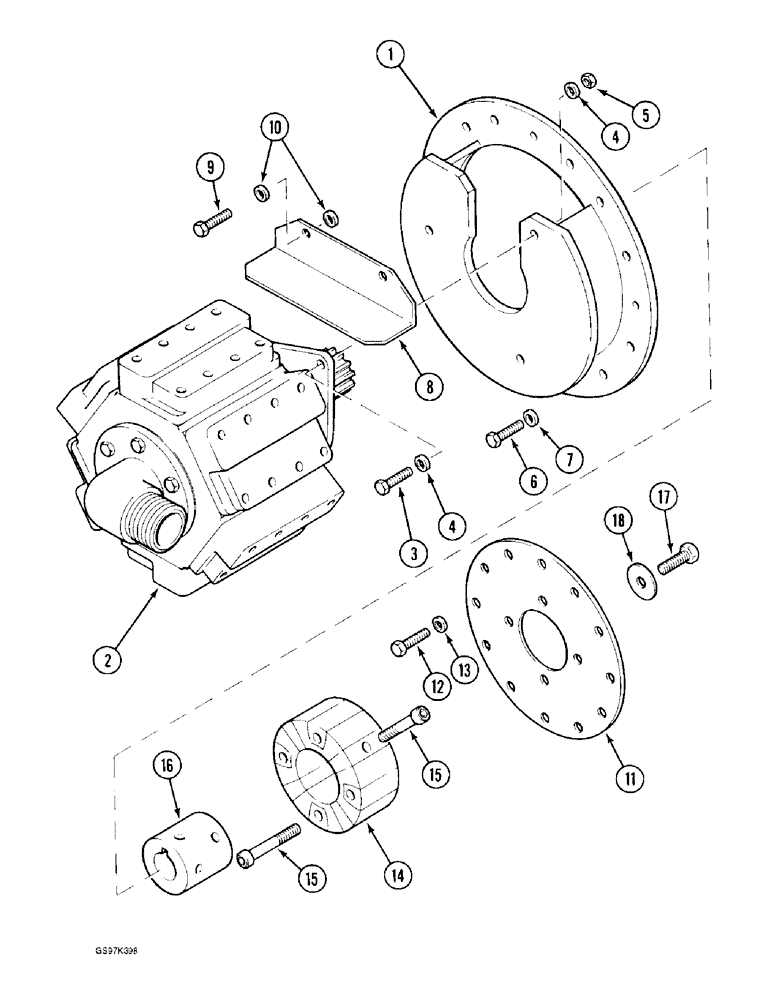

Запчасти Case 170C (8-098) - HYDRAULIC PUMP TO ENGINE COUPLINGS (08) - HYDRAULICS

1

P2254858

ENGINE VENT SLEEVE

MOUNT - main hydraulic pump

1шт.

2

REF

INSTRUCTION

PUMP ASSEMBLY - main hydraulic, parts list Figure 8-92 or 8-94

1шт.

3

P33868

SCREW

BOLT - hex, 16 mm x 80 mm

3шт.

4

P3528790

WASHER

SPACER - bolt, 11 mm thick

6шт.

5

P134547

SAFETY NUT

NUT - hex, self-locking, 16 mm

3шт.

6

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm

10шт.

7

P3528795

WASHER

SPACER - bolt, 7 mm thick

10шт.

8

P5125627

PROTECTOR

COVER - pump mount

1шт.

9

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

(Replaces bolt P833802) Hex, M10 x 50, 8.8

2шт.

10

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

11

P8230180

PLATE, THRUST

ADAPTER - hydraulic pump, at engine

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

8шт.

13

P4328796

WASHER

SPACER - bolt, 7 mm thick

8шт.

14

P7646293

COUPLING, BREAK AWAY

COUPLING - flexible, to engine adapter

1шт.

15

P532969

SCREW

BOLT - hex socket, 16 mm x 50 mm

8шт.

16

P2728885

HUB

COUPLING - pump drive, at pump

1шт.

17

614-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

(Replaces bolt P33802) Hex, M16 x 30, 8.8, Full Thd

1шт.

18

P2745407

WASHER

- special

1шт.
