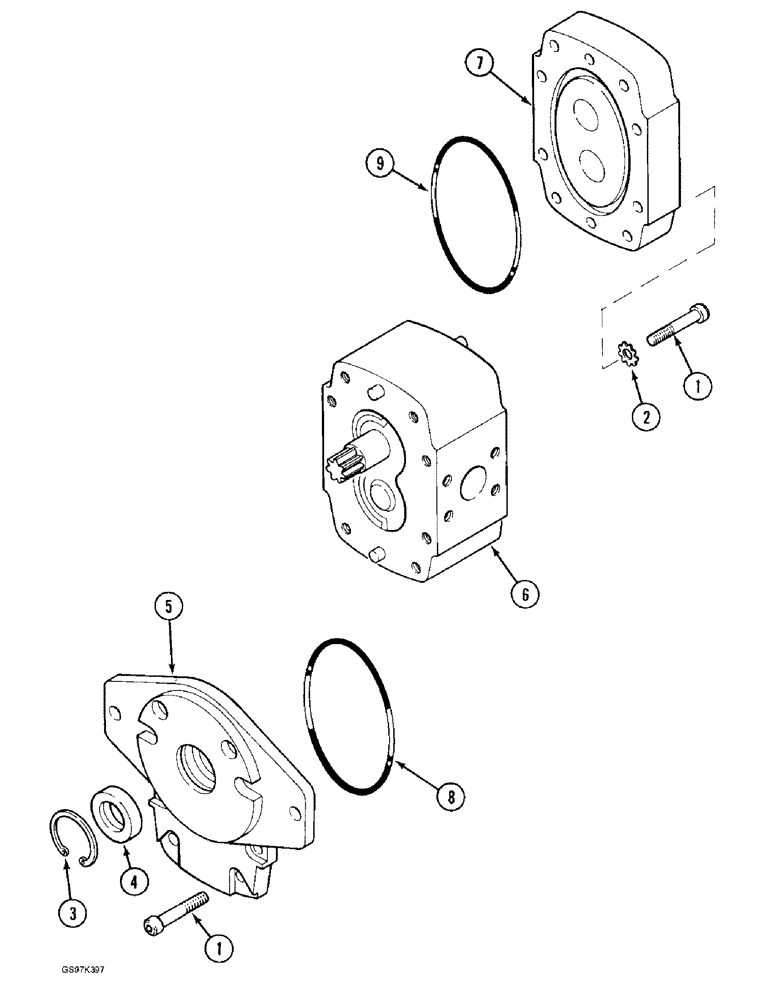

Запчасти Case 170C (8-096) - COOLER HYDRAULIC PUMP (08) - HYDRAULICS

P3943533

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic oil cooler, Includes: Ref. 1-9

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - covers to gear housing, order pump assembly P3943533

16шт.

2

NSS

NOT SOLD SEPARAT

WASHER - lock, cover bolt, order pump assembly P3943533

8шт.

3

P36225

DEUTZ PART

RING - snap, seal retaining, order from Deutz

1шт.

4

P6146083

BUSHING

SEAL - shaft

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - shaft end, order pump assembly P3943533

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - gear and shaft, order pump assembly P3943533

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - pump rear, order pump assembly P3943533

1шт.

8

P8846046

GASKET

O-RING - cover to gear housing, front

1шт.

9

P8846047

SEAL

O-RING - cover to gear housing, rear

1шт.
