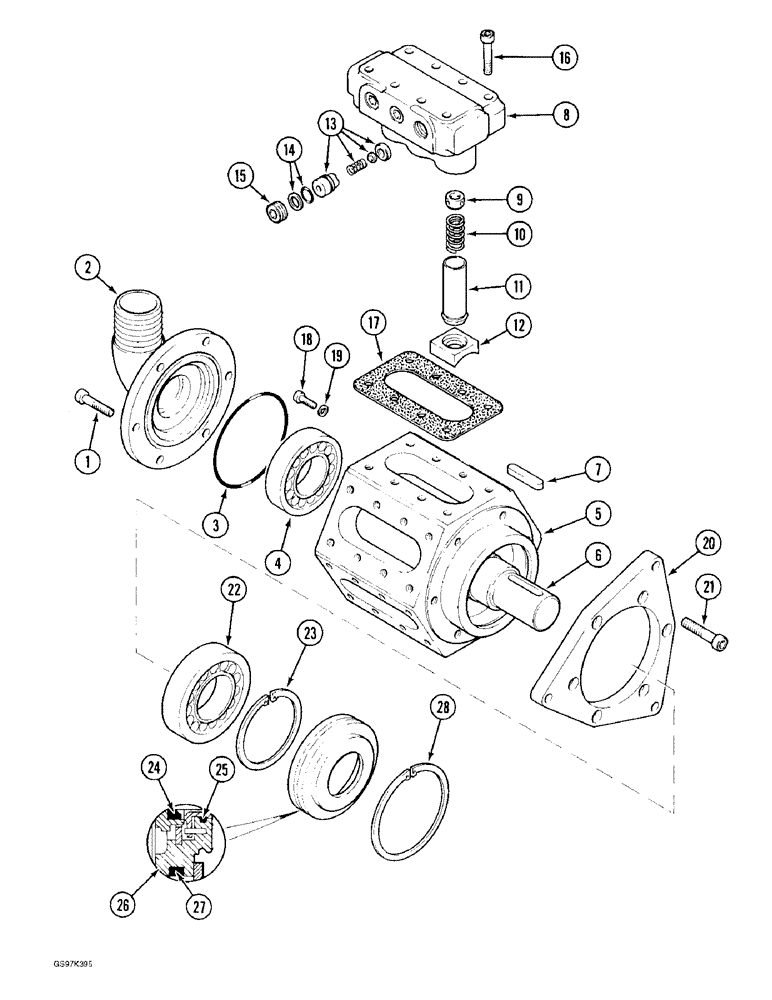

Запчасти Case 170C (8-092) - HYDRAULIC PUMP, P.I.N. 74501 THROUGH 74662, P.I.N. 02301 THROUGH 02370 (08) - HYDRAULICS

P2843585

PUMP, HYDRAULIC

PUMP ASSEMBLY - high pressure, Includes: Ref. 1-28

1шт.

1

P732909

SCREW

BOLT - hex socket, 8 mm x 25 mm, class 10.9

6шт.

2

P6046250

FLANGE

- suction

1шт.

3

P2030411

O-RING,0.094" Thk x 5.25" ID, -160, Cl 5, 75 Duro

- flange

1шт.

4

P2339837

BEARING

- pump

1шт.

5

P2740386

HOUSING

- pump

1шт.

6

P7646294

CRANKSHAFT

SHAFT - pump

1шт.

7

P236135

KEY

- shaft

1шт.

P1344377

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, pump pistons, Includes: Ref. 8-15

6шт.

8

NSS

NOT SOLD SEPARAT

HEAD - cylinder, pump pistons, order head assembly P1344377

1шт.

P3637753

PISTON

ASSEMBLY - pump, Includes: Ref. 9-12

3шт.

9

NSS

NOT SOLD SEPARAT

GUIDE - piston, order piston assembly P3637753

1шт.

10

P1838156

COMPRESSION SPRING

SPRING - piston

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - pump, order piston assembly P3637753

1шт.

12

P1628973

SKID/SHOE

SHOE - piston

1шт.

P2343369

VALVE

ASSEMBLY - discharge, Includes: Ref. 13,14

3шт.

13

NSS

NOT SOLD SEPARAT

POPPET - valve, order valve assembly P2343369

1шт.

14

P7046003

KIT

- seal, includes (1) O-ring and (1) backup ring

1шт.

15

P1037446

SCREW

PLUG - cylinder head

3шт.

16

864-10050

HEX SOC SCREW,M10 x 50mm, Cl 8.8

Hex socket, 10 - 1.5 x 50 mm (Replaces bolt P32937)

48шт.

17

P9646044

SEAL

GASKET - cylinder head

6шт.

18

P933005

SCREW

- air removal

1шт.

19

P1446072

WASHER

SEAL - air removal screw

1шт.

20

P5630116

FLANGE

PLATE - adapter, pump housing

1шт.

21

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

SCREW, Hex Soc Hd, M10 x 30, 8.8

6шт.

22

P2339837

BEARING

- pump shaft

1шт.

P1644302

SEAL

KIT - shaft and bearing seal, Includes: 23-28

1шт.

Regarding P1644302 kit, see NIT #1107. Seal kit is P5949609.

1шт.

23

800-2195

SNAP RING,M95, Internal

RING, SNAP, (Replaces ring P36256) M95, Int

1шт.

24

P30335

O-RING

- seal retainer

1шт.

25

P2030436

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

- seal retainer

1шт.

26

NSS

NOT SOLD SEPARAT

RETAINER - seal, order kit P1644302

1шт.

27

P30351

O-RING

- seal retainer

1шт.

28

P36261

RING, SNAP

RING - snap, retainer

1шт.
