Запчасти Case 170B (8-238) - ATTACHMENT CONTROL VALVE, HEAVY LIFT VALVE SECTION, P.I.N. 74341 THRU 74456 (08) - HYDRAULICS

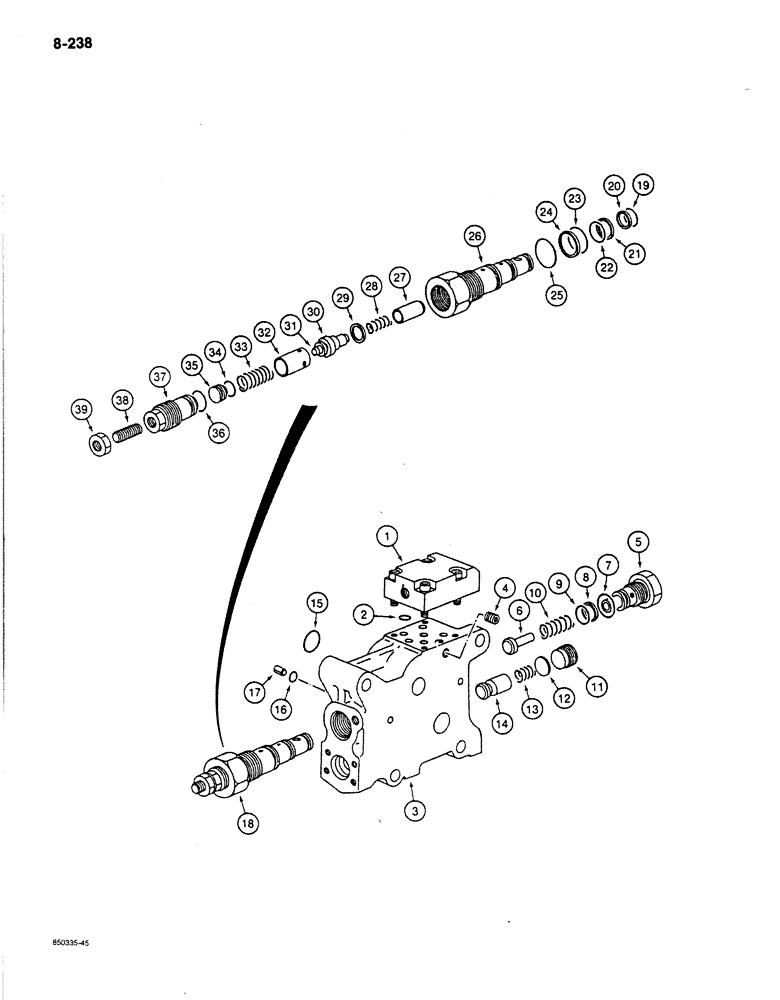

Схема запчастей Case 170B - (8-238) - ATTACHMENT CONTROL VALVE, HEAVY LIFT VALVE SECTION, P.I.N. 74341 THRU 74456 (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

P2643629

SELECTOR

SECTION ASSEMBLY - heavy lift, Includes: Refs. 1-39

1шт.

1

P1943648

VALVE

BLOCK - selector

1шт.

2

P30307

O-RING

- block

6шт.

3

NSS

NOT SOLD SEPARAT

BODY - valve section

1шт.

4

P1037475

PLUG

- body

3шт.

5

P1943683

VALVE

ASSEMBLY - check, body, Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

POPPET - check valve

1шт.

7

A43669

O-RING,1.299" ID x 1.505" OD x 0.103"

- large

1шт.

8

A1945331

RING - backup, small O-ring

1шт.

9

R30989

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

- small

1шт.

10

P738197

COMPRESSION SPRING

SPRING - poppet

1шт.

11

P737453

PLUG

- body

1шт.

12

P645050

HOLE PLUG BUTTON

SPACER - spring

1шт.

13

P738197

COMPRESSION SPRING

SPRING - poppet

1шт.

14

P529922

VALVE

POPPET - lift section

1шт.

15

P130490

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

- large

2шт.

16

L30522

O-RING,0.492" ID x 0.106" Width

- small

1шт.

17

P35754

SPLIT PIN/SAFETY PIN

PIN - roll, body

2шт.

18

P1943654

CARTRIDGE

VALVE ASSEMBLY - main relief, heavy lift valve section, Includes: Refs. 19-39

1шт.

19

P30318

O-RING

- relief valve

1шт.

20

P5346092

BACK-UP RING

RING - backup, O-ring

1шт.

21

P1945329

BACK-UP RING

RING - back, O-ring

1шт.

22

P1230465

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

- relief valve

1шт.

23

P1230487

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

- relief valve

1шт.

24

P1945330

BACK-UP RING

RING - backup, O-ring

1шт.

25

P1630459

GASKET

O-RING - relief valve

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.

27

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

28

P138102

COMPRESSION SPRING

SPRING - poppet

1шт.

P1943650

VALVE POPPET

PLUNGER ASSEMBLY - valve, Includes: Refs. 29-31

1шт.

29

P945270

WASHER, SEALING

SEAL - plunger

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - plunger

1шт.

31

NSS

NOT SOLD SEPARAT

SEAT - plunger

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE - spring

1шт.

33

P1038138

COMPRESSION SPRING

SPRING - plunger

1шт.

34

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- spring seat

1шт.

35

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

36

P1630456

O-RING

- body

1шт.

37

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

38

P33085

SCREW

- set, adjusting

1шт.

39

P34564

NUT

- locking

1шт.

Выбрано товаров: 41
