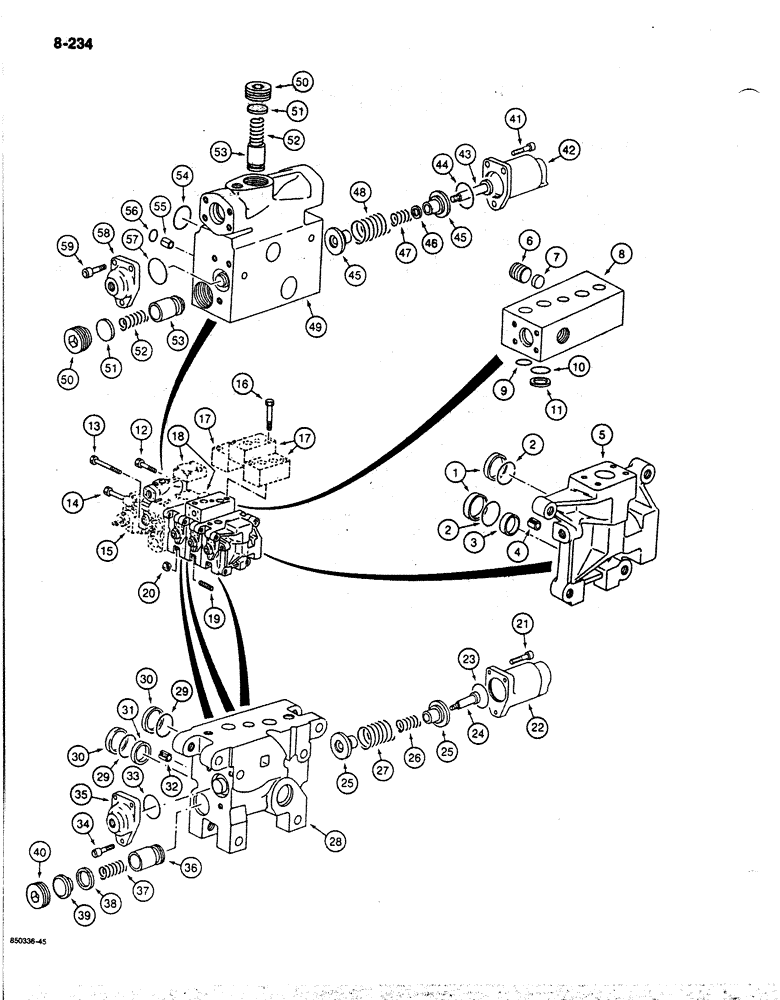

Запчасти Case 170B (8-234) - ATTCHMT CONTRL VLV, BOOM, ARM, & TOOL SECTIONS,& TOOL SECTN., & PARALLEL ARM SECTN.,PIN 74341-74456 (08) - HYDRAULICS

P2243672

LARGE PLATE

PLATE ASSEMBLY - control valve end, Includes: Refs. 1-5

1шт.

1

P945258

BACK-UP RING

RING - backup, copper

2шт.

Ref. 1, 11 & 30 are the same part number. The picture depicts Ref. 30 as having a different appearance.

1шт.

2

P630426

O-RING

- end plate

2шт.

3

P2045403

WASHER

RING - backup, steel

1шт.

4

P35754

SPLIT PIN/SAFETY PIN

PIN - roll, end plate

2шт.

5

NSS

NOT SOLD SEPARAT

PLATE - control valve end

1шт.

P2243673

BLOCK ASSY.

BLOCK ASSEMBLY - adapter, Includes: Refs. 6-11

1шт.

6

P1737486

PLUG

- block

2шт.

7

P145045

HOLE PLUG BUTTON

BUTTON - block

2шт.

8

NSS

NOT SOLD SEPARAT

BLOCK - adapter

1шт.

9

P130490

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

- block, small

1шт.

10

P630426

O-RING

- block, large

2шт.

11

P945258

BACK-UP RING

RING - backup, large O-ring

2шт.

12

P932941

SCREW

BOLT - upper

2шт.

13

P2033084

SCREW

BOLT - lower

2шт.

14

P532934

SCREW

BOLT - mounting

4шт.

15

P1943654

CARTRIDGE

VALVE ASSEMBLY - main relief, parts list Figure 8-242

1шт.

16

P2033083

SCREW

BOLT - section

2шт.

17

P1943654

CARTRIDGE

VALVE ASSEMBLY - circuit relief, parts list Figure 8-240

3шт.

18

P2643629

SELECTOR

SECTION - heavy lift, parts list Figure 8-238

1шт.

19

P1127737

THREADED ROD

STUD - section retaining

12шт.

20

825-1418

NUT,M18, Cl 8

- hex, retaining stud

24шт.

P1943641

DISTRIBUTOR

SECTION ASSEMBLY - boom, arm, and tool, Includes: Refs. 21-40

3шт.

21

P732909

SCREW

BOLT - mounting

3шт.

22

P2643678

CAP

- end, section

1шт.

23

P130412

O-RING

- cover

1шт.

24

P1229860

END FITTING

STUD - spring retaining

1шт.

25

P5130110

CUPEL

RETAINER - spring

2шт.

26

P1338193

COMPRESSION SPRING

SPRING - small, inner

1шт.

27

P1338194

COMPRESSION SPRING

SPRING - small, outer

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

P1943641

DISTRIBUTOR

SECTION ASSEMBLY - boom, arm, and tool, continued

3шт.

29

P630426

O-RING

- body

2шт.

30

P945258

BACK-UP RING

RING - backup, copper

2шт.

31

P2045403

WASHER

RING - backup, steel

1шт.

32

P35754

SPLIT PIN/SAFETY PIN

PIN - roll, body

2шт.

33

P130412

O-RING

- cover

1шт.

34

P732909

SCREW

BOLT - mounting

3шт.

35

P2643679

CAP

- end, section

1шт.

36

P929914

VALVE POPPET

POPPET - valve section

1шт.

37

P1038179

COMPRESSION SPRING

SPRING - poppet

1шт.

38

P545228

SEAL

SPACER - spring

1шт.

39

P827895

BLANK-OFF PLUG

RETAINER - spring

1шт.

40

P737441

PLUG

- body

1шт.

P2643628

DISTRIBUTOR

SECTION ASSEMBLY - parallel arm, Includes: Refs. 41-59

1шт.

41

P732909

SCREW

BOLT - mounting

3шт.

42

2643678

CAP - end, section

1шт.

43

P1229860

END FITTING

STUD - spring retaining

1шт.

44

P130412

O-RING

- cover

1шт.

45

P5130110

CUPEL

RETAINER - spring

2шт.

46

P2728850

SPACER

- spring

1шт.

47

P1538118

COMPRESSION SPRING

SPRING - small, inner

1шт.

48

NSS

NOT SOLD SEPARAT

SPRING - large, outer

1шт.

49

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

50

P737453

PLUG

- section

2шт.

51

P645050

HOLE PLUG BUTTON

SPACER - plug

2шт.

52

P738197

COMPRESSION SPRING

SPRING - poppet

2шт.

53

P529922

VALVE

POPPET - section

2шт.

54

P130490

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

- block, large

2шт.

55

P35754

SPLIT PIN/SAFETY PIN

PIN - roll, block

2шт.

56

L30522

O-RING,0.492" ID x 0.106" Width

- block, small

1шт.

57

P130412

O-RING

- spool

1шт.

58

P2643679

CAP

- end, section

1шт.

59

P732909

SCREW

BOLT - mounting

3шт.
