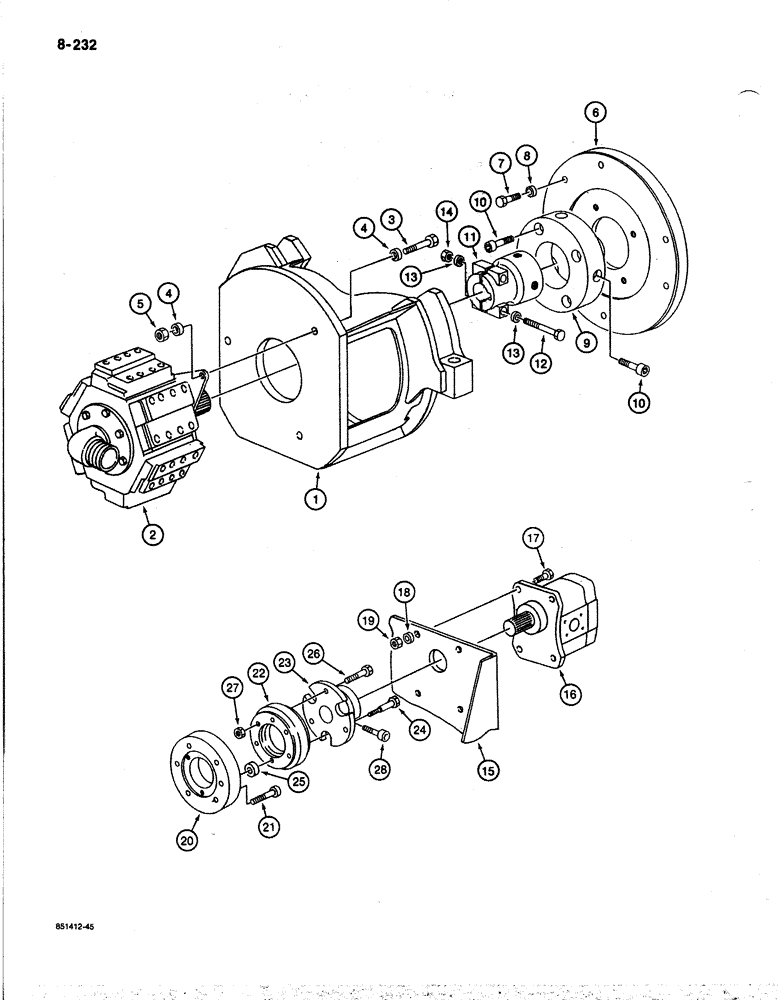

Запчасти Case 170B (8-232) - HYDRAULIC PUMP TO ENGINE COUPLINGS, P.I.N. 74341 THROUGH 74456 (08) - HYDRAULICS

1

P3840310

HOUSING

MOUNT - engine rear and main hydraulic pump, see Figure 2-22 for engine mounting parts

1шт.

2

P3443505

PUMP

ASSEMBLY - high pressure, parts list Figure 8-228

1шт.

3

P33855

SCREW

BOLT -, Serial Range: pump-mount

3шт.

4

P3528790

WASHER

SPACER - pump mounting bolt

6шт.

5

P134547

SAFETY NUT

NUT - hex, pump mounting bolt

3шт.

6

P3330187

PLATE, THRUST

ADAPTER - hydraulic pump, at engine

1шт.

7

P33842

SCREW

BOLT -, Serial Range: adapter-engine

6шт.

8

P3528793

WASHER

SPACER - adapter bolt

6шт.

9

P1241439

FLEXIBLE COUPLING

COUPLING - flexible, to engine adapter

1шт.

10

P532969

SCREW

BOLT - pump drive coupling

8шт.

11

P140023

SPLINED COUPLING

COUPLING - pump drive, at pump

1шт.

12

P33850

SCREW

BOLT - pump drive coupling

2шт.

13

P3528792

WASHER

SPACER - coupling bolt

4шт.

14

P134549

SAFETY NUT

NUT - hex, coupling bolt

2шт.

15

P154889

CROSSBAR

MOUNT - engine front and cooler hydraulic pump, see Figure 2-22 for engine mounting parts

1шт.

16

P2843552

PUMP

ASSEMBLY - hydraulic oil cooler, parts list Figure 8-230

1шт.

17

P133813

SCREW

BOLT -, Serial Range: pump-mount

4шт.

18

P3528795

WASHER

SPACER - pump mounting bolt

4шт.

19

P34598

SAFETY NUT

NUT - hex, pump mounting bolt

4шт.

20

P7230180

SPACER

ADAPTER - hydraulic pump, at engine

1шт.

21

P0732978Q

SCREW

Hex Soc Hd, M8 x 30, 10.9, Serial Range: Adapter-engine

6шт.

22

P7230177

COUPLING, BREAK AWAY

COUPLING - flex, to engine adapter

1шт.

23

P5846271

TRANSMISSION SLEEVE

COUPLING - pump drive, at pump

1шт.

24

P33830

SCREW

BOLT - coupling to engine adapter

3шт.

25

P4328730

WASHER

SPACER - flexible, Serial Range: coupling-adapter

3шт.

26

P133869

SCREW

BOLT - pump coupling to flexible coupling

3шт.

27

P34598

SAFETY NUT

NUT - hex, pump coupling bolt

3шт.

28

P832916

SCREW

BOLT - pump coupling to pump shaft

2шт.
