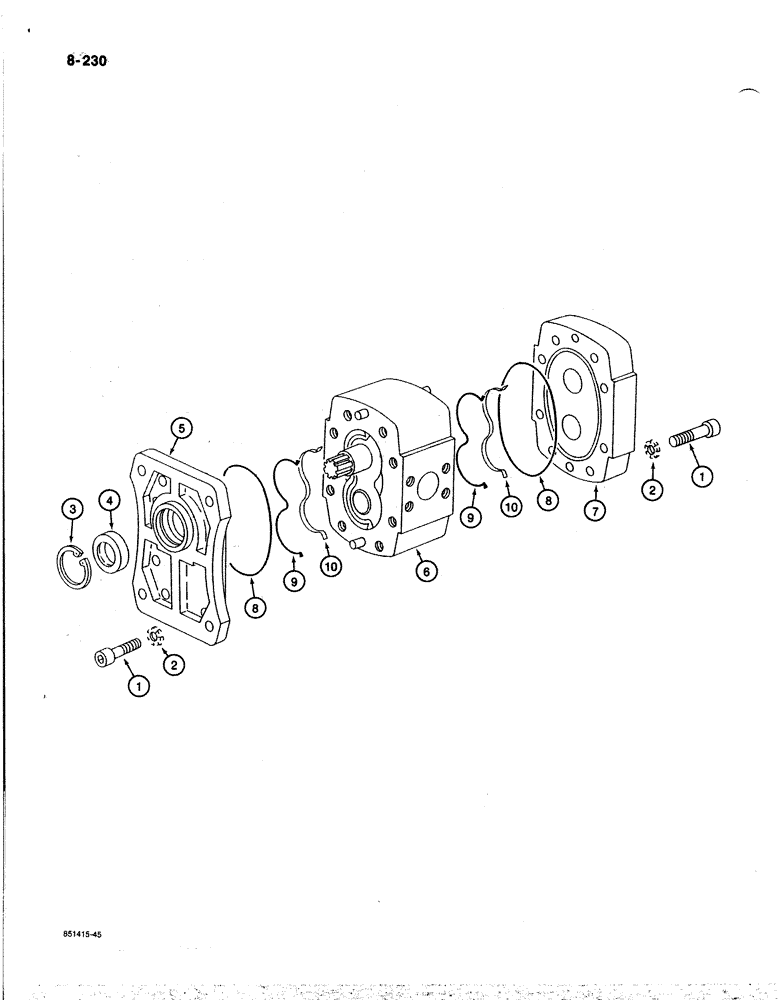

Запчасти Case 170B (8-230) - COOLER HYDRAULIC PUMP, P.I.N. 74341 THROUGH 74456 (08) - HYDRAULICS

P2843552

PUMP

ASSEMBLY - hydraulic oil cooler, Includes: Refs. 1-10

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - covers to gear housing

16шт.

2

NSS

NOT SOLD SEPARAT

WASHER - lock, cover bolt

16шт.

3

P36225

DEUTZ PART

RING - snap, seal retaining

1шт.

4

P6146083

BUSHING

SEAL - shaft

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - gear and shaft

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - pump rear

1шт.

P3749686

KIT

- seal repair, Includes: Refs. 8-10

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - covers to gear housing

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - gear housing

2шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - housing seal

2шт.
