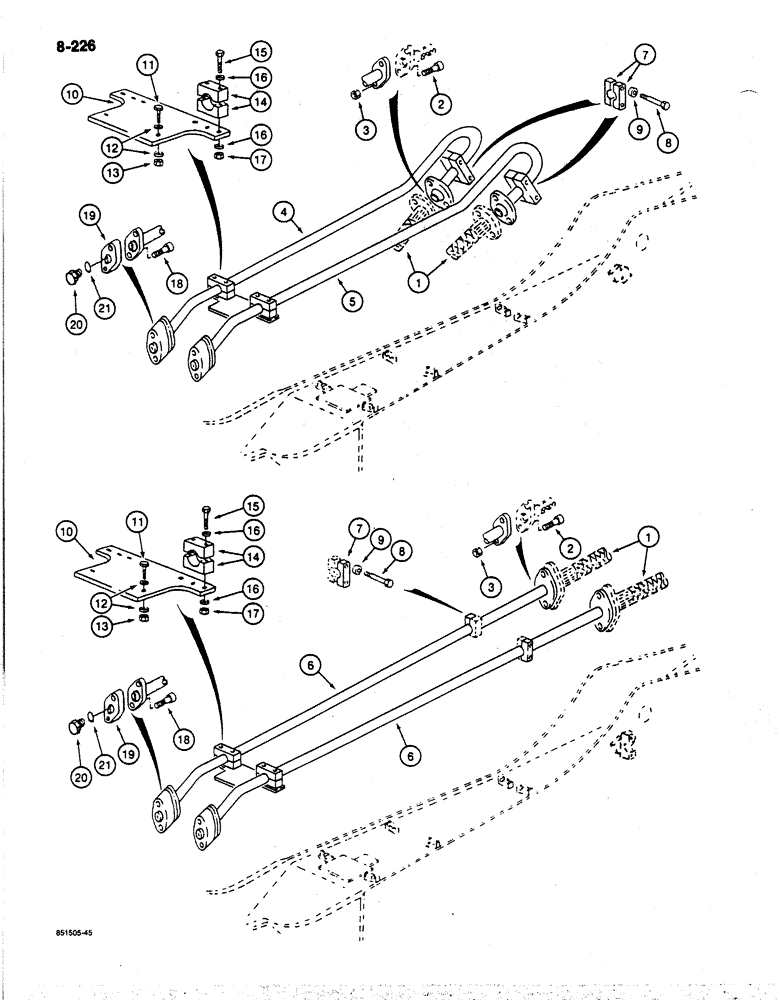

Запчасти Case 170B (8-226) - HYDRAULIC CIRCUIT FOR OPTIONS, TUBES AT ARM, P.I.N.74341 THRU 74456 (08) - HYDRAULICS

1

P1031915

HOSE

- options, from tubes at boom, see Figure 8-224

2шт.

2

P1232958

SCREW

BOLT - hose to tube flange

4шт.

3

P34185H

NUT,M8, Cl 10

- flange bolt

4шт.

4

P6249169

PIPE

TUBE - options, right-side of arm, used with 2.5 m arm

1шт.

5

P6249170

PIPE

TUBE - options, left-side of arm, used with 2.5 m arm

1шт.

6

P8147604

PIPE

TUBE - options, at arm, used with 3.2 m arm

2шт.

7

P1023402

SHIN

CLAMP - options tube, (2) used with 3.2 m arm - (4) used with 2.5 m arm

2-4шт.

8

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

- hex head, 12 mm - 1.75 x 60 mm (8.8), plated

4шт.

9

P4328797

WASHER

SPACER - clamp bolt

4шт.

10

P1624083

SUPPORT

BRACKET - tube clamp

1шт.

11

P1133839

SCREW

BOLT - bracket mounting

4шт.

12

P4328796

WASHER

SPACER - bracket bolt

8шт.

13

100016

NUT,M10 x 1.5, Cl 8

Clamp Bolt M10, Cl 8

8шт.

14

P1023402

SHIN

CLAMP - options tube

4шт.

15

43148

SUPPORT

BOLT - tube clamp

4шт.

16

P4328797

WASHER

SPACER - clamp bolt

8шт.

17

337475

NUT,M12, Cl 10

- , Clamp bolt M12, Cl 10

4шт.

18

Q732978

SCREW,Hex Skt Hd, M8 x 30mm, Cl 10.9

Tube flange to cover plate Hex Soc Hd, M8 x 30, 10.9

4шт.

19

P637395

RESTRICTOR

PLATE - cover, tube flange

2шт.

20

P737470

PLUG

- cover plate

2шт.

21

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- plug

2шт.
