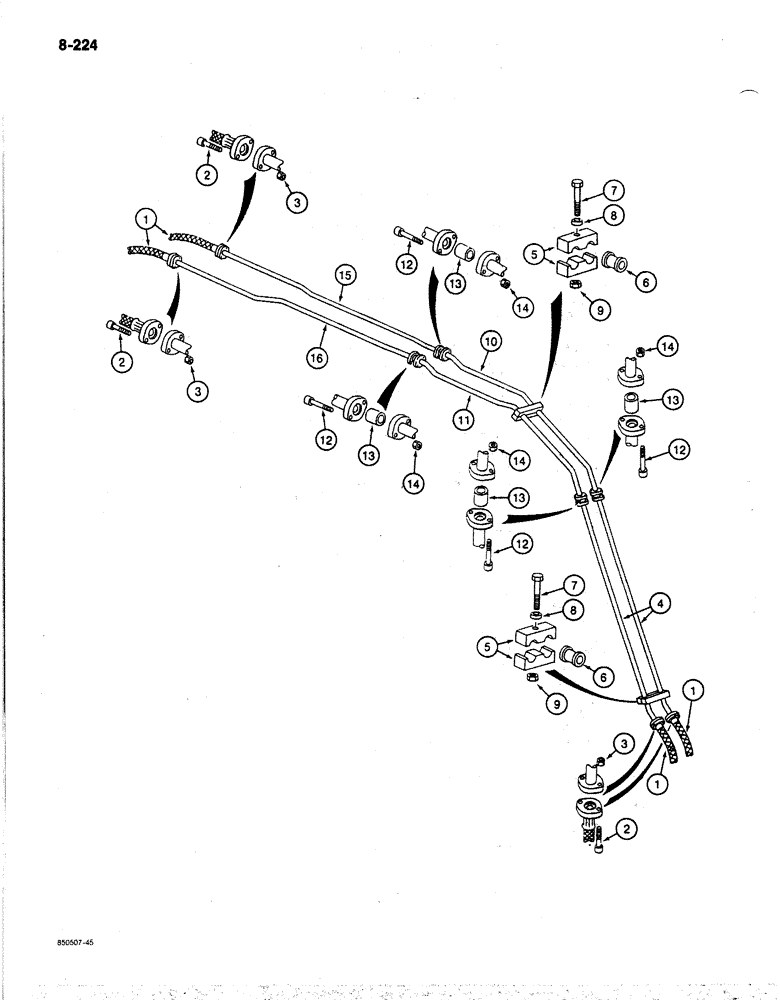

Запчасти Case 170B (8-224) - HYDRAULIC CIRCUIT FOR OPTIONS, TUBES AT BOOM, P.I.N. 74341 THRU 74456 (08) - HYDRAULICS

1

P1031915

HOSE

- 49-1/4" (1250 mm) long, from options control valve and to tubes on arm

4шт.

2

P1232958

SCREW

BOLT - tube to hose flange

8шт.

3

P34185H

NUT,M8, Cl 10

- flange bolt

8шт.

4

P6947105

PIPE

TUBE - at boom, lower section

2шт.

5

P820347

SHIN

CLAMP -, Serial Range: tubes-boom

4шт.

6

P741448

BUSHING

INSULATOR - tube clamp

4шт.

7

P33856

SCREW

BOLT - tube clamp

2шт.

8

P4328746

WASHER

SPACER - tube clamp

2шт.

9

P34169

NUT

- tube clamp

2шт.

10

P5949193

PIPE

TUBE - at boom, right-hand side, center section

1шт.

11

P5949194

PIPE

TUBE - at boom, left-hand side, center section

1шт.

12

P1232960

SCREW

BOLT - tube flange

8шт.

13

P1737761

JUNCTION

ADAPTER - tube flange

4шт.

14

P34185H

NUT,M8, Cl 10

- tube flange

8шт.

15

P5949197

PIPE

TUBE - at boom, right-hand side, upper section

1шт.

16

P5949198

PIPE

TUBE - at boom, left-hand side, upper section

1шт.
