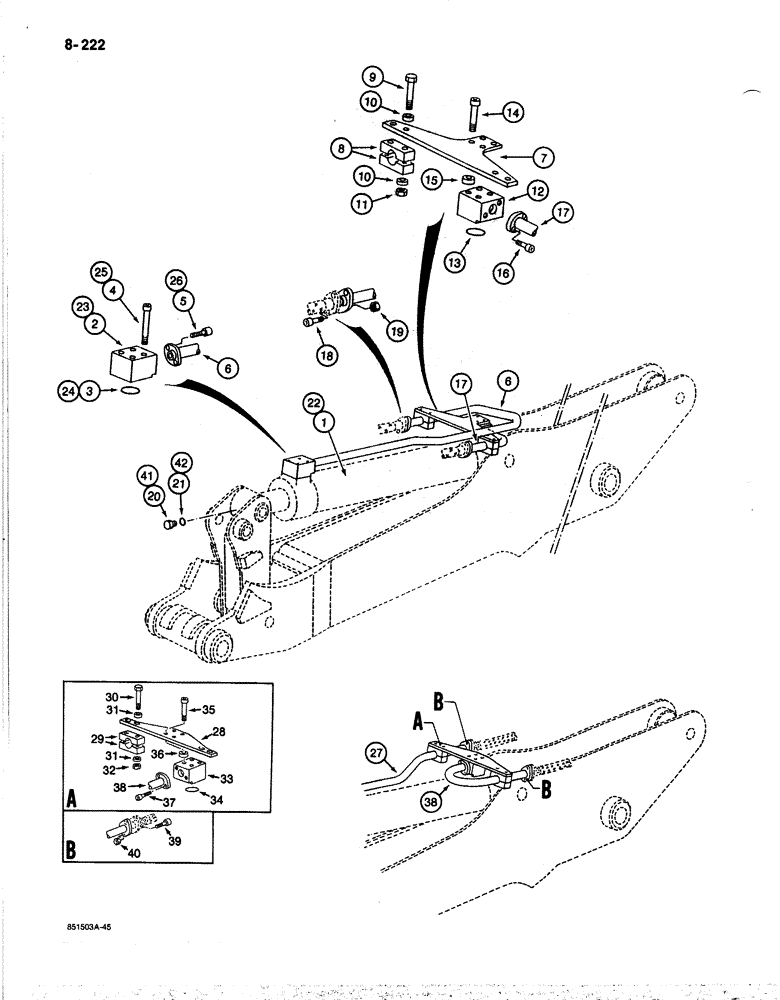

Запчасти Case 170B (8-222) - TOOL CYLINDER CIRCUIT, TUBES AT CYLINDR, P.I.N. 74341-74456, UNITS W/ 2.5 M ARM (08) - HYDRAULICS

1

P7346753

CYLINDER ASSY.

CYLINDER ASSEMBLY - tool, parts list Figure 8-294

1шт.

2

P3237793

SHIN

BLOCK - tube to cylinder, rod end

1шт.

3

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- block

1шт.

4

P32979

SCREW

BOLT -, Serial Range: block-cylinder

4шт.

5

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Tube flange to block Hex Skt Hd, M12 x 40, 10.9

2шт.

6

P5849129

PIPE

TUBE - tool cylinder, rod end

1шт.

7

P1624059

SUPPORT

BRACKET - mounting, tube clamp

1шт.

8

P520317

SHIN

CLAMP - tube

4шт.

9

P133887

SCREW

BOLT -, Serial Range: clamp-bracket

4шт.

10

P4328797

WASHER

SPACER - clamp bolt

8шт.

11

337475

NUT,M12, Cl 10

- , Clamp bolt M12, Cl 10

4шт.

12

P3237793

SHIN

BLOCK - tube to cylinder, closed end

1шт.

13

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- block

1шт.

14

P523902

BOLT - bracket and, Serial Range: block-cylinder

4шт.

15

P4628739

WASHER

SPACER -, Serial Range: bracket-block

4шт.

16

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Tube flange to block, closed end Hex Skt Hd, M12 x 40, 10.9

2шт.

17

P6547153

PIPE

TUBE - tool cylinder, closed end

1шт.

18

P632934

SCREW

BOLT - tube to hose flange

4шт.

19

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10, plated

4шт.

20

P1737451

PLUG

- cylinder rod eye, if used

1шт.

21

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- plug, if used

1шт.

22

P7346753

CYLINDER ASSY.

CYLINDER ASSEMBLY - tool, parts list Figure 8-294, units with 3.2 meter arm

1шт.

23

P3237793

SHIN

BLOCK - tube to cylinder, rod end, units with 3.2 meter arm

1шт.

24

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- block, units with 3.2 meter arm

1шт.

25

P32979

SCREW

BOLT - block to cylinder, units with 3.2 meter arm

4шт.

26

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Tube flange to block, units with 3.2 meter arm Hex Skt Hd, M12 x 40, 10.9

2шт.

27

P8147668

PIPE

TUBE - tool cylinder, rod end, units with 3.2 meter arm

1шт.

28

P1824001

SUPPORT

BRACKET - mounting, tube clamp, units with 3.2 meter arm

1шт.

29

P520317

SHIN

CLAMP - tube, units with 3.2 meter arm

4шт.

30

P133084

SCREW

BOLT - clamp to bracket, units with 3.2 meter arm

4шт.

31

P4328797

WASHER

SPACER - - clamp bolt, units with 3.2 meter arm

8шт.

32

337475

NUT,M12, Cl 10

- , Clamp bolt, Units with 3.2 meter arm M12, Cl 10

4шт.

33

P3237793

SHIN

BLOCK - tube to cylinder, closed end, units with 3.2 meter arm

1шт.

34

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- block, units with 3.2 meter arm

1шт.

35

P532902

SCREW

BOLT - bracket and block to cylinder, units with 3.2 meter arm

4шт.

36

P4628739

WASHER

SPACER - bracket to block, units with 3.2 meter arm

4шт.

37

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Tube flange to block, closed end, units with 3.2 meter arm Hex Skt Hd, M12 x 40, 10.9

2шт.

38

P6947189

PIPE

TUBE - tool cylinder, closed end, units with 3.2 meter arm

1шт.

39

P632934

SCREW

BOLT - tube to hose flange, units with 3.2 meter arm

4шт.

40

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10, plated, Units with 3.2 meter arm

4шт.

41

P1737451

PLUG

- cylinder rod eye, if used, units with 3.2 meter arm

1шт.

42

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- plug, if used, units with 3.2 meter arm

1шт.
