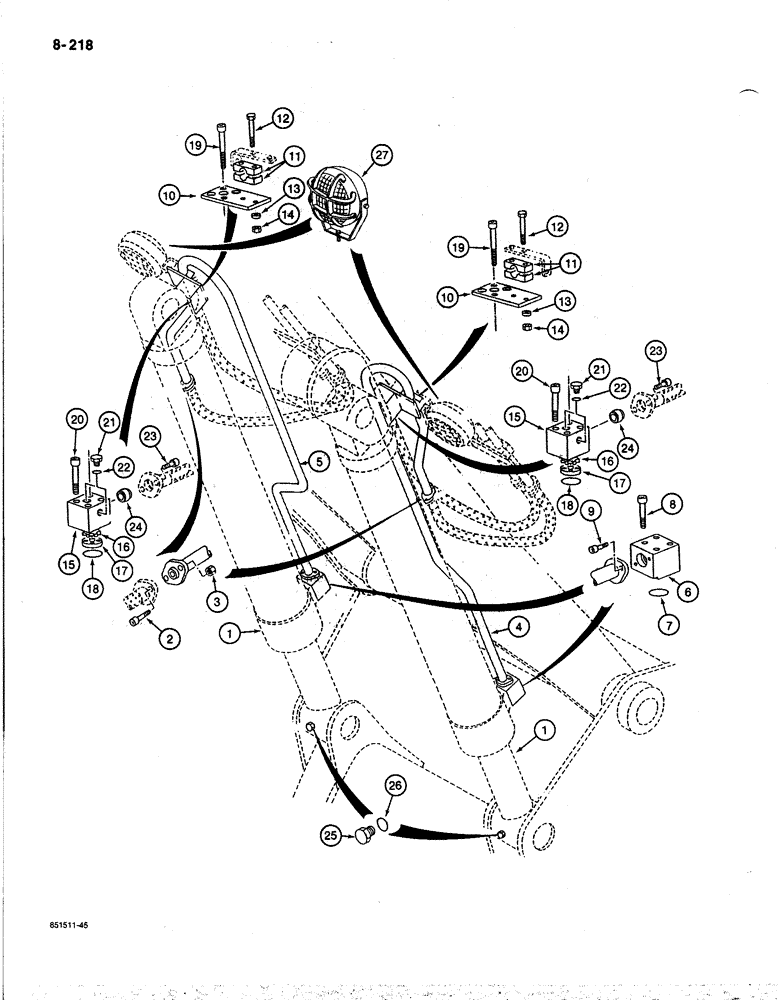

Запчасти Case 170B (8-218) - BOOM CYLINDER CIRCUIT, TUBES AT CYLINDER, P.I.N. 74341 THRU 74456 (08) - HYDRAULICS

1

P7346753

CYLINDER ASSY.

CYLINDER ASSEMBLY - boom, parts list Figure 8-294

2шт.

2

L632924

SCREW

BOLT - hose to tube flange

4шт.

3

825-1408

NUT,M8, Cl 8

- hex, 8 mm - 1.25, class 10

4шт.

4

P5849134

PIPE

TUBE - to rod end of boom cylinder, left-hand

1шт.

5

P5849135

PIPE

TUBE - to rod end of boom cylinder, right-hand

1шт.

6

P3237783

SHIN

BLOCK - mounting, tube to cylinder, rod end

2шт.

7

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- mounting block

2шт.

8

P32979

SCREW

BOLT -, Serial Range: block-cylinder

8шт.

9

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Tube to block Hex Soc Hd, M10 x 35, 10.9

4шт.

10

P3923376

SUPPORT

BRACKET - mounting, tube clamp

2шт.

11

P520318

SHIN

CLAMP - tube

4шт.

12

P833835

SCREW

BOLT -, Serial Range: clamp-bracket

4шт.

13

P4328796

WASHER

SPACER - clamp bolt

4шт.

14

825-1408

NUT,M8, Cl 8

Flange bolt, Clamp bolt M8, Cl 8

4шт.

15

P3837795

SHIN

BLOCK - tube, closed end

2шт.

16

P437752

VALVE POPPET

RESTRICTOR - tube block

2шт.

17

P930134

STOP

GUIDE - restrictor

2шт.

18

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- tube block

2шт.

19

P32980

SCREW

BOLT - block and bracket mounting, long

4шт.

20

P32979

SCREW

BOLT - block mounting, short

4шт.

21

P1737452

PLUG

- tube block

4шт.

22

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

4шт.

23

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Hose to tube block Hex Soc Hd, M10 x 35, 10.9

4шт.

24

P1528828

JUNCTION

ADAPTER - hose, Serial Range: flange-block

2шт.

25

P1737451

PLUG

- cylinder rod eye

2шт.

26

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- plug

2шт.

27

P841725

SPOTLIGHT

LAMP ASSEMBLY - work, see Figures 4-76 and 4-78 for lamp and mounting bracket

2шт.
