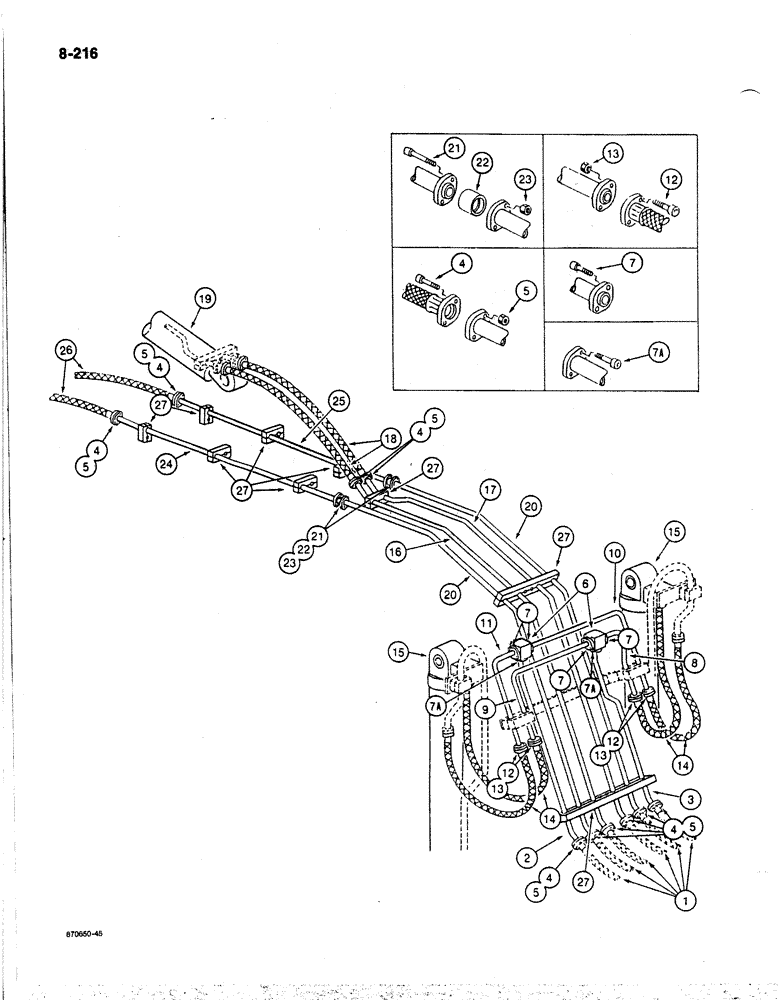

Запчасти Case 170B (8-216) - BOOM, ARM AND TOOL CYLINDER CIRCUITS, TUBES AT BOOM, P.I.N. 74341 THRU 74456 (08) - HYDRAULICS

1

P1031988

HOSE

- attachment circuit, see Figures 8-198 and 8-202, Ref. 9

6шт.

2

P7747619

PIPE

TUBE - to manifold block, rod end of boom cylinder

1шт.

3

P5849130

PIPE

TUBE - to manifold block, closed end of boom cylinder

1шт.

4

P632934

SCREW

BOLT - tube to hose flange

20шт.

5

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10, Flange bolt

20шт.

6

P537243

TEE

BLOCK - manifold

2шт.

7

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Manifold to cylinder tubes Hex Soc Hd, M10 x 35, 10.9

8шт.

7a

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Manifold to lower boom tubes Hex Skt Hd, M12 x 40, 10.9

4шт.

8

P7747618

PIPE

TUBE - manifold to right-hand boom cylinder, closed end

1шт.

9

P6547156

PIPE

TUBE - manifold to left-hand boom cylinder, closed end

1шт.

10

P6547157

PIPE

TUBE - manifold to right-hand boom cylinder, rod end

1шт.

11

P6547155

PIPE

TUBE - manifold to left-hand boom cylinder, rod end

1шт.

12

L632924

SCREW

BOLT - hose to tube flange

8шт.

13

825-1408

NUT,M8, Cl 8

- hex, 8 mm - 1.25, class 10

8шт.

14

P1031990

HOSE

- 39-3/8" (1000 mm) long, manifold tubes to boom cylinders

4шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom, see Figure 8-218 for tubes and hydraulic connections

2шт.

16

P5949113

PIPE

TUBE - to arm cylinder, rod end

1шт.

17

P5949114

PIPE

TUBE - to arm cylinder, closed end

1шт.

18

P5431911

HOSE

- 39-3/8" (1000 mm) long, to arm cylinder

2шт.

19

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm, see Figure 8-220 for tubes and huydraulic connections

1шт.

20

P5849038

PIPE

TUBE - to tool cylinder, lower boom

2шт.

21

P532930

SCREW

BOLT - tube flange

4шт.

22

P1737759

JUNCTION

ADAPTER - tube flange

2шт.

23

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10, plated

4шт.

24

P5849131

PIPE

TUBE - to tool cylinder, upper boom, left-hand

1шт.

25

P5849132

PIPE

TUBE - to tool cylinder, upper boom, right-hand

1шт.

26

P1031989

HOSE

- 70-7/8" (1800 mm) long, to tool cylinder

2шт.

27

REF

INSTRUCTION

CLAMP - tubes to boom, see Figure 9-334 for clamps and mounting parts

1шт.
