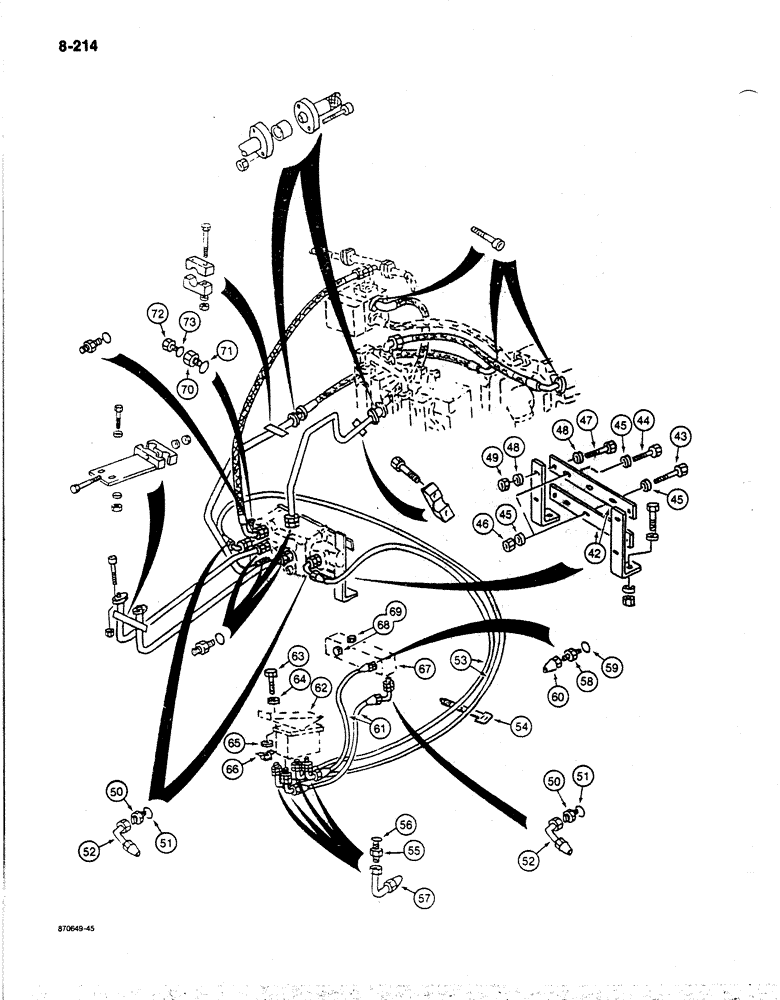

Запчасти Case 170B (8-214) - HYDRAULIC CIRCUIT FOR OPTIONS, P.I.N. 74442 THROUGH 74456 (08) - HYDRAULICS

42

P3423359

PLATE

- valve mounting

2шт.

43

P133850

SCREW

BOLT - hex head, 8 mm x 35 mm

1шт.

44

P133865

SCREW

BOLT - hes head, 8 mm x 60 mm

2шт.

45

P3528794

WASHER

SPACER - bolt, 6 mm thick

6шт.

46

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

3шт.

47

P3528795

WASHER

BOLT - hex head, 10 mm x 60 mm

4шт.

48

P3528795

WASHER

SPACER - bolt, 6 mm thick

8шт.

49

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

50

P3037546

UNION

ADAPTER - straight, control circuit hose to block and options valve

3шт.

51

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

3шт.

52

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

3шт.

53

REF

INSTRUCTION

HOSE - 126" (3200 mm) long, control circuit, cut from P1103640

2шт.

54

P51946

CLAMP

TIE STRAP - hose

1шт.

55

P4037504

UNION

ADAPTER ASSEMBLY - control circuit hose, at foot control valve, Includes: Ref. 56

4шт.

56

P7046042

SEAL

O-RING - adapter

1шт.

57

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

4шт.

58

P3037546

UNION

ADAPTER - straight, control circuit hose to manifold block

1шт.

59

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

60

P4037535

END FITTING

ADAPTER - straight, control circuit hose

1шт.

61

REF

INSTRUCTION

HOSE - control circuit, 39-3/8" (1000 mm) long, cut from P1103640

2шт.

62

P1643394

BLOCK ASSY.

VALVE ASSEMBLY - foot control, see Figures 8-262 and 8-264 for correct valve assembly and parts list

1шт.

63

P33822

SCREW

BOLT - hex head, 8 mm x 50 mm

4шт.

64

P3528794

WASHER

SPACER - bolt, 6 mm thick

4шт.

65

P4328730

WASHER

SPACER - bolt, 20 mm thick

4шт.

66

P1334571

NUT

- cage type

4шт.

67

P2643329

BLOCK ASSY.

MANIFOLD - control circuit, see reference number 4, Figure 8-182

1шт.

68

P1737451

PLUG

- manifold port

2шт.

69

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- plug

2шт.

70

P637362

RESTRICTOR

ADAPTER - pressure check assembly to control valve

1шт.

Ref. 70 - Replaced by P1037328, increasing the length from 30 mm to 32.5 mm

1шт.

71

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

P4037516

MAKING-UP

VALVE ASSEMBLY - pressure check, Includes: Refs. 72, 73

1шт.

72

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

73

P7046042

SEAL

- valve

1шт.
