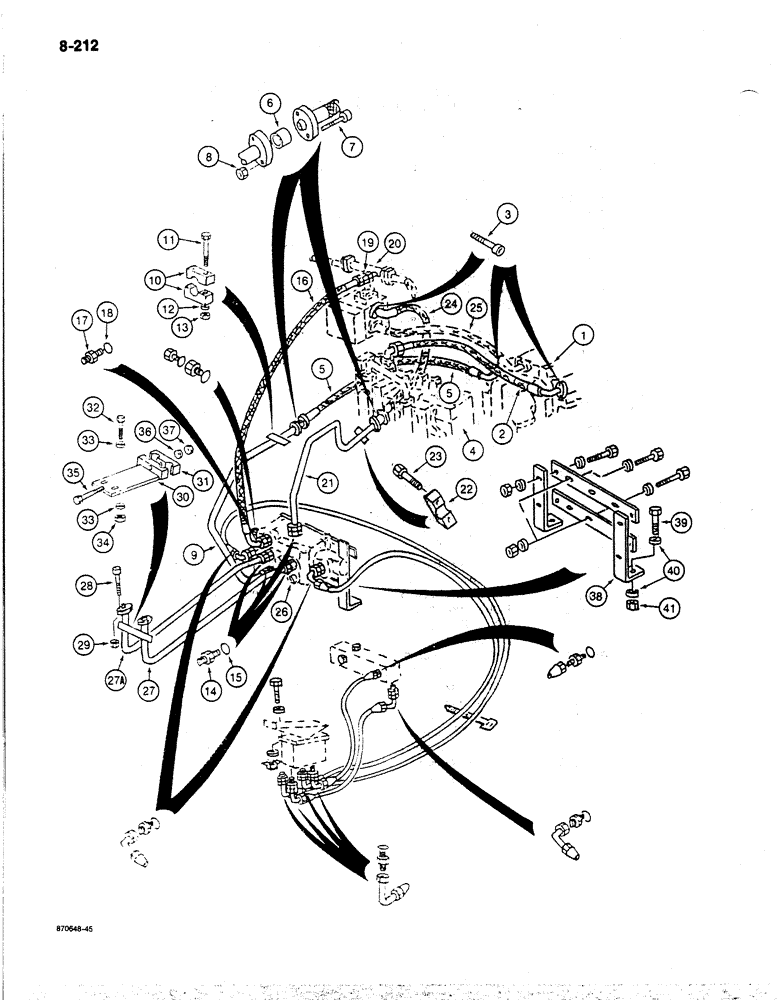

Запчасти Case 170B (8-212) - HYDRAULIC CIRCUIT FOR OPTIONS, P.I.N. 74442 THROUGH 74456 (08) - HYDRAULICS

1

P3443505

PUMP

ASSEMBLY - high pressure, parts list Figure 8-228

1шт.

2

P5931925

HOSE,15.50 mm ID x 630.00 mm

- pump to attachment control valve 15.50 mm ID x 630.00 mm

1шт.

3

P0732978Q

SCREW

6шт.

4

REF

INSTRUCTION

VALVE ASSEMBLY - attachment control, parts list Figures 8-234 - 8-242

1шт.

5

P5931926

HOSE

- 24-13/16" (630 mm) long, pump to options control valve

1шт.

6

P1737761

JUNCTION

ADAPTER - tube to hose flange

2шт.

7

P1232960

SCREW

BOLT - hex socket head, 8 mm x 75 mm, class 10.9

4шт.

8

P34185H

NUT,M8, Cl 10

- hex, 8 mm

4шт.

9

P6049015

PIPE

TUBE - pump to options control valve

1шт.

10

P723438

SHIN

CLAMP - tube

2шт.

11

P933835

SCREW

BOLT - hex head, 10 mm x 70 mm

2шт.

12

P3528795

WASHER

SPACER - clamp, 7 mm thick

2шт.

13

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

14

P3037504

UNION

ADAPTER - straight, at options valve

4шт.

15

P1230443

O-RING

- adapter

4шт.

16

P3731945

HOSE

- 49-1/4" (1250 mm) long, return, to tee at power sensing valve

1шт.

17

P3037501

UNION

ADAPTER - straight, hose to options valve

1шт.

18

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

1шт.

19

P37554

UNION

ADAPTER - straight, Serial Range: hose-tee

1шт.

20

P3050110

MANIFOLD

TUBE - return, at power sensing valve, see reference number 6, Figure 8-150

1шт.

21

P6149115

PIPE

TUBE - options valve to power sensing valve

1шт.

22

P723438

SHIN

CLAMP - tube

1шт.

23

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

plated Hex, M10 x 35, 8.8, Full Thd

2шт.

24

P5931926

HOSE

- 24-13/16" (630 mm) long, options valve to power sensing valve

1шт.

25

P4931979

HOSE

- pump to power sensing valve, see reference number 6, Figure 8-138

1шт.

26

REF

INSTRUCTION

VALVE ASSEMBLY - options control, parts list Figure 8-254

1шт.

27

P6149005

PIPE

TUBE - control valve to hoses at boom, see Figure 8-224 for option tubes at boom

1шт.

27a

P6149006

PIPE

TUBE - control valve to hoses at boom, see Figure 8-224 for option tubes at boom

1шт.

28

P1232958

SCREW

BOLT - hex socket head, 8 mm x 75 mm, class 10.9

4шт.

29

P34185H

NUT,M8, Cl 10

- hex

4шт.

30

P4327112

SUPPORT

BRACKET - options tube, includes clamp, see Figure 8-198, item 12 for mounting bracket for attachment tubes

1шт.

31

P1023468

SHIN

CLAMP - options tube

1шт.

32

P1133839

SCREW

BOLT - hex head, 10 mm x 45 mm

2шт.

33

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

34

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

35

P33843

SCREW

BOLT - hex head, 12 mm x 70 mm

1шт.

36

P3528793

WASHER

SPACER - bolt, 8 mm thick

1шт.

37

P34596

LOCK NUT

NUT - hex, self-locking, 12 mm

1шт.

38

P2326785

LARGE PLATE

BRACKET - valve mounting

2шт.

39

P532617

SCREW

BOLt - hex head, 14 mm x 75 mm

2шт.

40

P3528792

WASHER

SPACER - bolt, 10 mm thick

4шт.

41

P134549

SAFETY NUT

NUT - hex, self-locking, 14 mm

2шт.
