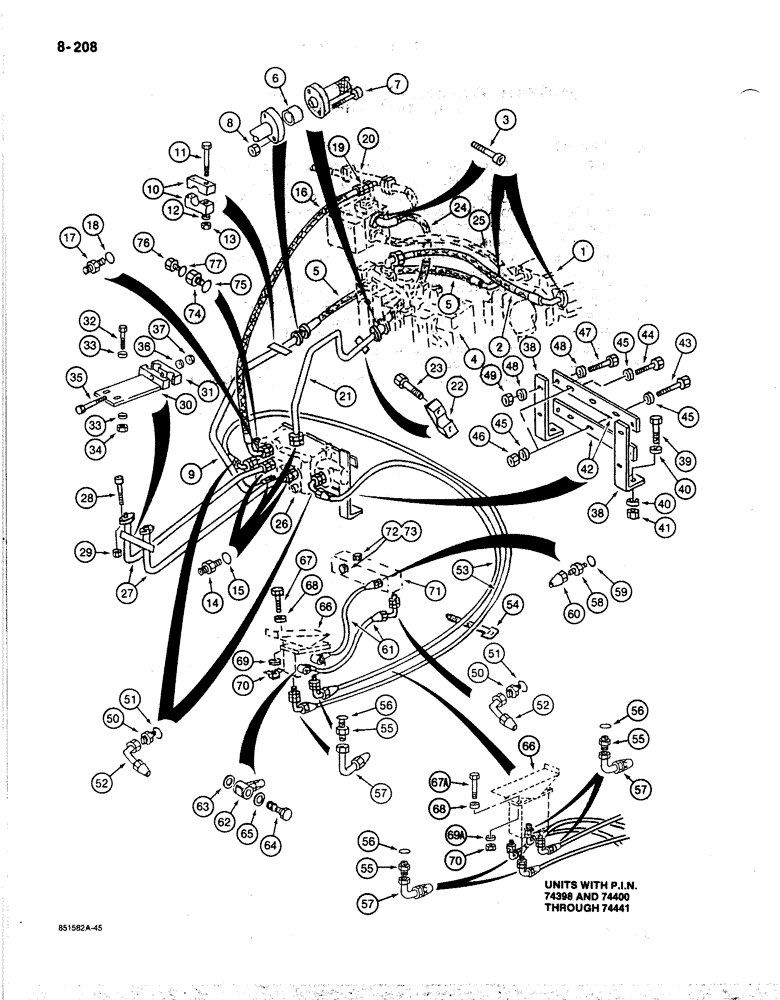

Запчасти Case 170B (8-208) - HYDRAULIC CIRCUIT FOR OPTIONS, P.I.N. 74341 THROUGH 74441 (08) - HYDRAULICS

1

P3443505

PUMP

ASSEMBLY - high pressure, parts list Figure 8-228

1шт.

2

P5931925

HOSE,15.50 mm ID x 630.00 mm

- pump to attachment control valve 15.50 mm ID x 630.00 mm

1шт.

3

P0732978Q

SCREW

Hex Soc Hd, M8 x 30, 10.9, Hose flange to pump and valve

6шт.

4

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - attachment, parts list Figures 8-234 - 8-242

1шт.

5

P5931926

HOSE

- 24-13/16" (630 mm) long, pump to options control valve

1шт.

6

P1737761

JUNCTION

ADAPTER - tube to hose flange

2шт.

7

P1232960

SCREW

BOLT - tube to hose flange

4шт.

8

P34185H

NUT,M8, Cl 10

- flange bolt

4шт.

9

P6049015

PIPE

TUBE - pump to options control valve

1шт.

10

P723438

SHIN

CLAMP - tube

2шт.

11

P33830

SCREW

BOLT - tube clamp

2шт.

12

P3528795

WASHER

SPACER - tube clamp

2шт.

13

P34598

SAFETY NUT

NUT - clamp bolt

2шт.

14

P3037504

UNION

ADAPTER - straight, at options valve

4шт.

15

P1230443

O-RING

- adapter

4шт.

16

P3731945

HOSE

- 49-1/4" (1250 mm) long, return, to tee at power sensing valve

1шт.

17

P3037504

UNION

ADAPTER - straight, hose to options valve

1шт.

18

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

1шт.

19

P37554

UNION

ADAPTER - straight, Serial Range: hose-tee

1шт.

20

P3050110

MANIFOLD

TUBE - return, at power sensing valve, see reference number 6, Figures 8-146 and 8-150

1шт.

21

P6149115

PIPE

TUBE - options valve to power sensing valve

1шт.

22

P723408

LARGE PLATE

CLAMP - tube

1шт.

23

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

plated Hex, M10 x 35, 8.8, Full Thd

2шт.

24

P5931926

HOSE

- 24-13/16" (630 mm) long, options valve to power sensing valve

1шт.

25

P4931979

HOSE

- pump to power sensing valve, see reference number 6, Figures 8-134 and 8-138

1шт.

26

REF

INSTRUCTION

VALVE ASSEMBLY - options control, see Figures 8-252 and 8-254 for correct valve

1шт.

27

P8047642

PIPE

TUBE - control valve to hoses at boom, see Figure 8-224 for option tubes at boom

2шт.

28

P1232958

SCREW

BOLT - tube flange to hose flange

4шт.

29

P34185H

NUT,M8, Cl 10

- flange bolt

4шт.

30

P2428168

SUPPORT

CLAMP AND BRACKET - options tube

1шт.

31

P1023168

CLAMP - options tube

1шт.

32

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex head, 10 mm - 1.5 x 45 mm, plated

2шт.

33

P3528795

WASHER

SPACER - mounting bolt

4шт.

34

P34598

SAFETY NUT

NUT - mounting bolt

2шт.

35

P33843

SCREW

BOLT - tube clamp

1шт.

36

P3528793

WASHER

SPACER - clamp bolt

1шт.

37

P34596

LOCK NUT

NUT - clamp bolt

1шт.

38

P2326785

LARGE PLATE

BRACKET - valve mounting

2шт.

39

P532617

SCREW

BOLT - mounting bracket

2шт.

40

P3528792

WASHER

SPACER - mounting bolt

4шт.

41

P134549

SAFETY NUT

NUT - mounting bolt

2шт.

42

P3423359

PLATE

- valve mounting

2шт.

43

P133850

SCREW

BOLT -, Serial Range: valve-plate

1шт.

44

P133865

SCREW

BOLT -, Serial Range: valve-plate

2шт.

45

P3528794

WASHER

SPACER - valve mounting bolt

6шт.

46

P134596

SAFETY NUT

NUT - valve mounting bolt

3шт.

47

P133813

SCREW

BOLT -, Serial Range: plate-bracket

4шт.

48

P3528795

WASHER

SPACER - plate to bracket bolt

8шт.

49

P34598

SAFETY NUT

NUT - plate to bracket bolt

4шт.

50

P3037546

UNION

ADAPTER - straight, control circuit hose to block and options valve

3шт.

51

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

3шт.

52

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

3шт.

53

REF

INSTRUCTION

HOSE - control circuit, 126" (3200 mm) long, cut from P1103640

2шт.

54

P51946

CLAMP

STRAP - tie, hose

1шт.

55

P4037537

END FITTING

ADAPTER ASSEMBLY - control circuit hose, at foot control valve, Includes: Ref. 56

2-4шт.

56

P7046042

SEAL

O-RING - adapter

1шт.

57

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

2-4шт.

58

P3037546

UNION

ADAPTER - straight, control circuit hose to manifold block

1шт.

59

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

60

P4037535

END FITTING

ADAPTER - straight, control circuit hose

1шт.

61

REF

INSTRUCTION

HOSE - control circuit, 39-3/8" (1000 mm) long, cut from P1103640

2шт.

P1237559

END FITTING

ELBOW ASSEMBLY - special, at foot control valve, units with P.I.N. 74341 - 74397 and 74399 only, Includes: Refs. 62-65

2шт.

62

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

63

P344419

WASHER, SEALING

SEAL - elbow to foot control valve

1шт.

64

NSS

NOT SOLD SEPARAT

BOLT - elbow

1шт.

65

P945206

WASHER, SEALING

SEAL -, Serial Range: bolt-elbow

1шт.

66

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, see Figures 8-260 - 8-264 for correct valve

1шт.

67

814-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8

- hex head, 8 mm - 1.25 x 65 mm, plated

4шт.

67a

P33822

SCREW

BOLT - mounting, foot control valve

4шт.

68

P3528794

WASHER

SPACER - upper, mounting bolt

4шт.

69

P4328731

WASHER

SPACER - lower, mounting bolt

4шт.

70

P1334571

NUT

- mounting bolt

4шт.

71

P2643329

BLOCK ASSY.

MANIFOLD - control circuit, see Figures 8-180 an 8-182, Ref. 4

1шт.

72

P1737451

PLUG

- manifold port

1шт.

73

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- plug

1шт.

74

P637362

RESTRICTOR

ADAPTER - plug to control valve

1шт.

Ref. 74 - Replaced by P1037328, increasing the length from 30 mm to 32.5 mm

1шт.

75

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

76

P1737452

PLUG

- test port

1шт.

77

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

1шт.
