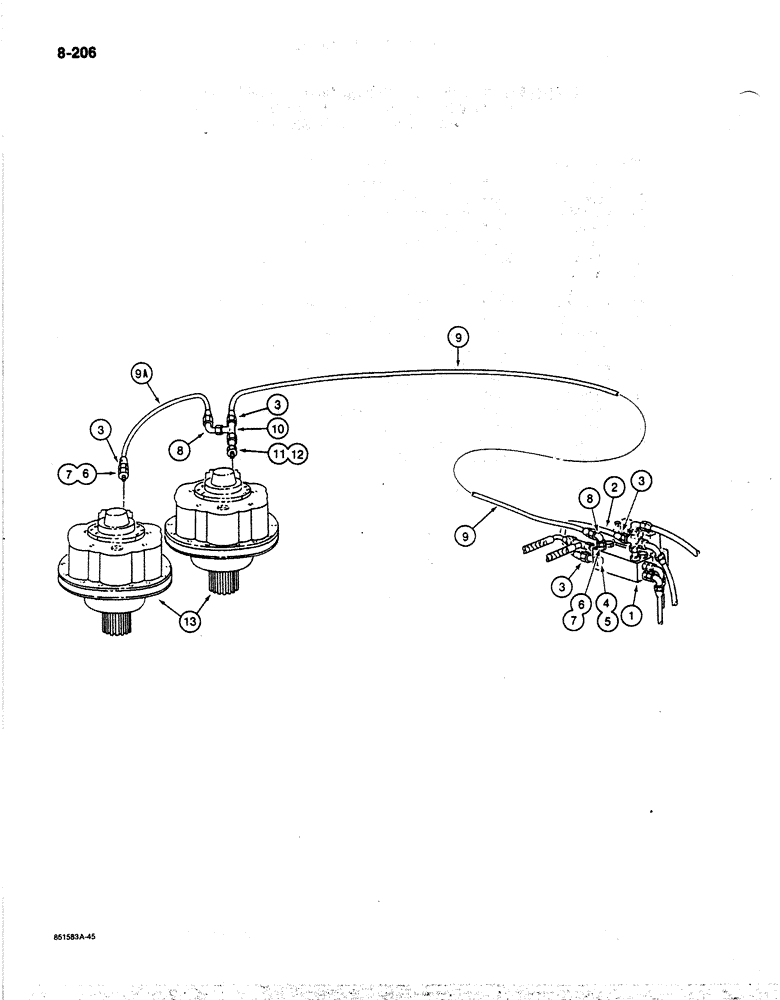

Запчасти Case 170B (8-206) - HYDRAULIC CONTROL CIRCUIT FOR SWING BRAKE, P.I.N. 74341 THRU 74456 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid control, see Figure 8-266 for solenoid valve and correct block (Refs. 4 and 5)

1шт.

2

REF

INSTRUCTION

HOSE - 19-11/16" (500 mm) long, control circuit, cut from P1103640

1шт.

3

P4037535

END FITTING

ADAPTER - straight, control circuit hose

4шт.

4

P2337591

UNION

TUBE - adapter, at solenoid valve

1шт.

5

P1230443

O-RING

- adapter

1шт.

6

P3037546

UNION

ADAPTER - straight, at solenoid valve and swing motor

2шт.

7

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

2шт.

8

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

9

REF

INSTRUCTION

HOSE - 98-7/16" (2500 mm) long, control circuit, cut from P1103640

1шт.

9a

REF

INSTRUCTION

HOSE - 27-9/16" (700 mm) long, control circuit, cut from P1103640

1шт.

10

P37236

TEE

- control circuit hose, at swing motor

1шт.

11

P3037561

FITTING

TUBE - adapter, at swing motor

1шт.

12

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

13

P3143724

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - swing, parts list Figures 8-282 and 8-284

2шт.
