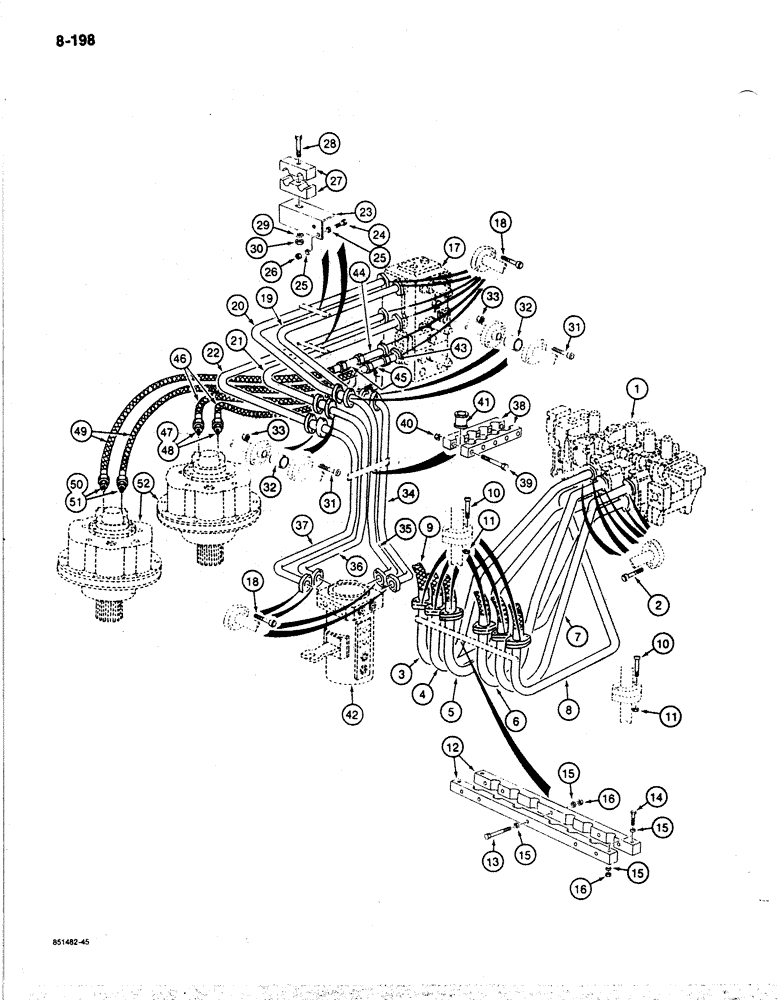

Запчасти Case 170B (8-198) - HYDRAULIC CIRCUIT FROM MAIN CONTOL VALVES, TO SWIVEL, SWING MOTORS & CYLINDERS, P.I.N. 74341 - 74441 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - attachment control, parts list Figures 8-234 - 8-242

1шт.

2

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Tube flange to attachment valve Hex Skt Hd, M12 x 40, 10.9

12шт.

3

P5849015

PIPE

TUBE - attachment circuit

1шт.

4

P5849016

PIPE

TUBE - attachment circuit

1шт.

5

P5849014

PIPE

TUBE - attachment circuit

1шт.

6

P5849012

PIPE

TUBE - attachment circuit

1шт.

7

P7747627

PIPE

TUBE - attachment circuit

1шт.

8

P5849013

PIPE

TUBE - attachment circuit

1шт.

9

P1031988

HOSE

- 63" (1600 mm) long, attachment circuit

6шт.

10

P532942

SCREW

BOLT - tube to hose flange

12шт.

11

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10, Flange bolt

12шт.

12

P3820355

SHIN

CLAMP - attachment tube

2шт.

13

P933808

SCREW

BOLT - tube clamp

5шт.

14

P33833

SCREW

BOLT - mounting, tube clamp

4шт.

15

P3528795

WASHER

SPACER - clamp bolt

18шт.

16

P1634563

SAFETY NUT

NUT - clamp bolt

9шт.

17

REF

INSTRUCTION

VALVE ASSEMBLY - swing and drive control, parts list Figures 8-244 - 8-250

1шт.

18

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Tube flange to valve end swivel Hex Soc Hd, M10 x 35, 10.9

20шт.

19

P7747646

PIPE

TUBE - drive circuit, at valve

1шт.

20

P7747645

PIPE

TUBE - drive circuit, at valve

1шт.

21

P6547172

PIPE

TUBE - drive circuit, at valve

1шт.

22

P6547171

PIPE

TUBE - drive circuit, at valve

1шт.

23

P3531587

ANGLE BAR

BRACKET - clamp mounting

2шт.

24

P1133839

SCREW

BOLT - clamp bracket

4шт.

25

P3528795

WASHER

SPACER - bracket bolt

8шт.

26

P1634563

SAFETY NUT

NUT - bracket bolt

4шт.

27

P120359

SHIN

CLAMP - drive circuit tubes

4шт.

28

P33897

SCREW

BOLT - tube clamp

2шт.

29

P3528792

WASHER

SPACER - clamp bolt

2шт.

30

P134549

SAFETY NUT

NUT - clamp bolt

2шт.

31

P1432903

SCREW

BOLT - tube flange

8шт.

32

P1737758

JUNCTION

ADAPTER - tube flange

4шт.

33

825-1408

NUT,M8, Cl 8

- hex, 8 mm - 1.25, class 10

8шт.

34

P5849030

PIPE

TUBE - drive control circuit, at swivel

1шт.

35

P5849028

PIPE

TUBE - drive control circuit, at swivel

1шт.

36

P5849029

PIPE

TUBE - drive control circuit, at swivel

1шт.

37

P5849027

PIPE

TUBE - drive control circuit, at swivel

1шт.

38

P3820357

SHIN

CLAMP - drive control tubes, at swivel

2шт.

39

P33844

SCREW

BOLT - tube clamp

5шт.

40

P834549

SAFETY NUT

NUT - tube clamp

5шт.

41

P741440

BUSHING

INSULATOR -, Serial Range: tube-clamp

4шт.

42

P1737754

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-290

1шт.

43

P1937694

PIPE,26.75 mm DIA x 90 mm L

TUBE - short, swing control circuit

1шт.

44

P2337604

PIPE

TUBE - long, swing control circuit

1шт.

45

P537203

TEE

- swing control hose

2шт.

46

P4431933

HOSE

- 19-11/16" (500 mm) long, tee to swing motor

2шт.

47

P3037501

UNION

ADAPTER - hose to swing motor

2шт.

48

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

2шт.

49

P3731976

HOSE

- 31-1/2" (800 mm) long, tee to swing motor

2шт.

50

P337584

UNION

ADAPTER - hose to swing motor

2шт.

51

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

2шт.

52

P3143724

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - swing, parts list Figures 8-282 and 8-284

2шт.
