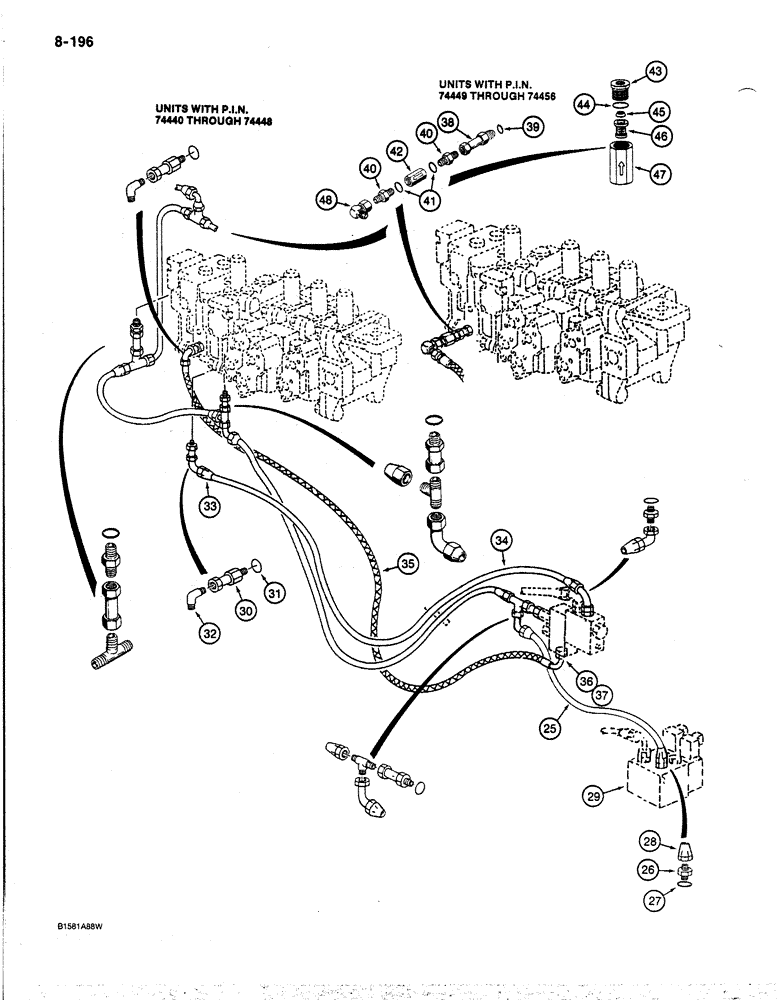

Запчасти Case 170B (8-196) - HYDRAULIC CONTROL CIRCUIT, FOR HEAVY LIFT, P.I.N. 74400 THRU 74456 (08) - HYDRAULICS

25

REF

INSTRUCTION

HOSE - 27-9/16" (700 mm) long, control circuit, to solenoid control valve, cut from P1103640

1шт.

26

P3037546

UNION

ADAPTER - straight, at valve

1шт.

27

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

28

P4037535

END FITTING

ADAPTER - straight, control circuit hose

1шт.

29

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid control, see Figure 8-266 for solenoid valve and correct block (Refs. 4 and 5)

1шт.

30

P3037561

FITTING

TUBE - adapter, at parallel arm section

2шт.

31

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

2шт.

32

P37075

ELBOW

ADAPTER - 90 degree, tube to control circuit hose

2шт.

33

P4037535

END FITTING

ADAPTER - straight, control circuit hose

1шт.

34

REF

INSTRUCTION

HOSE - 39-3/8" (1000 mm) long, control circuit, to parallel supply valve, cut from P1103640

1шт.

35

P4831901

HOSE

- 31-1/2" (800 mm) long, parallel arm section to parallel supply control valve

1шт.

36

P3037546

UNION

ADAPTER - hose to parallel supply control valve

1шт.

37

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

38

P3037561

FITTING

TUBE - adapter, at parallel arm section, P.I.N. 74449 - 74456

1шт.

39

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter, P.I.N. 74449 - 74456

1шт.

40

P3237574

UNION

ADAPTER ASSEMBLY - straight, at valve, P.I.N. 74449 - 74456, Includes: Ref. 41

2шт.

41

P7046042

SEAL

O-RING - adapter, P.I.N. 74449 - 74456

1шт.

42

P7646042

FILTER ASSEMBLY - parallel arm section, in line, P.I.N. 74449 - 74456, Includes: Refs. 43-47

1шт.

43

NSS

NOT SOLD SEPARAT

CAP - filter assembly, P.I.N. 74449 - 74456

1шт.

44

P1145268

SEAL

O-RING - cap, P.I.N. 74449 - 74456

1шт.

45

NSS

NOT SOLD SEPARAT

CONE - filter assembly, P.I.N. 74449 - 74456

1шт.

46

P1950574

CARTRIDGE

ELEMENT - filter assembly, P.I.N. 74449 - 74456

1шт.

47

NSS

NOT SOLD SEPARAT

BODY - filter assembly, P.I.N. 74449 - 74456

1шт.

48

P1737031

ANGLE

ADAPTER - 90 degree, filter to control circuit hose, P.I.N. 74449 - 74456

1шт.
