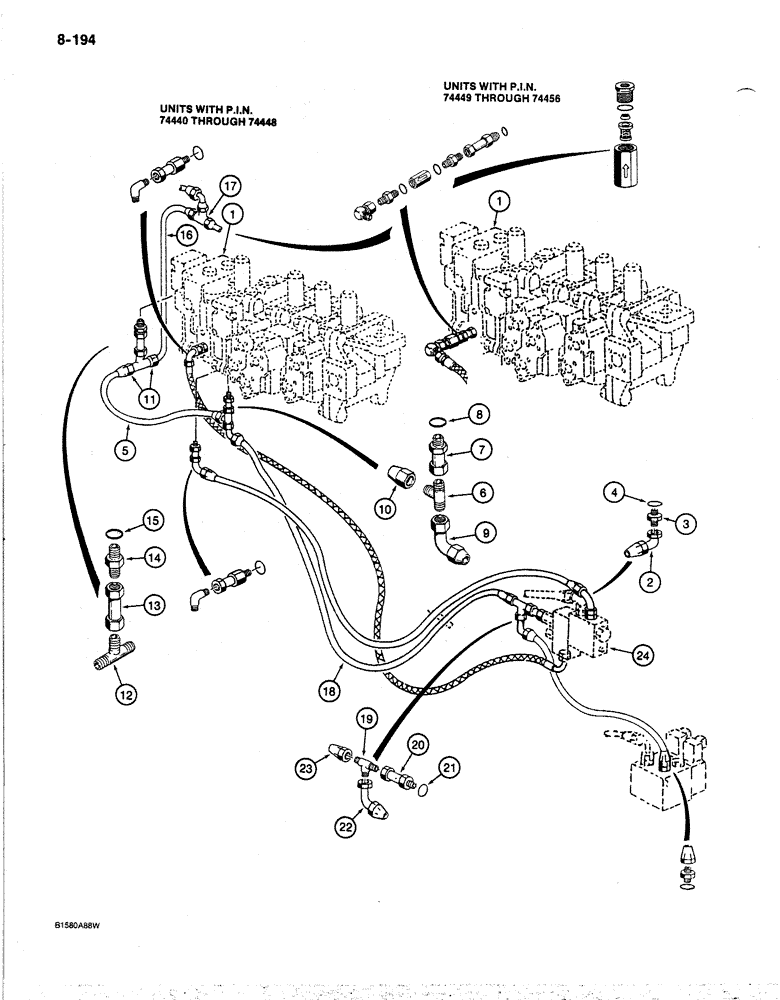

Запчасти Case 170B (8-194) - HYDRAULIC CONTROL CIRCUIT, FOR HEAVY LIFT, P.I.N. 74400 THRU 74456 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - attachment control, parts list Figures 8-234 - 8-242

1шт.

2

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose, at parallel supply valve

1шт.

3

P3037546

UNION

ADAPTER - straight, at valve

1шт.

4

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

5

REF

INSTRUCTION

HOSE - 15-3/4" (400 mm) long, control circuit, cut from P1103640

1шт.

6

P37236

TEE

- at heavy lift valve section

1шт.

7

P3037561

FITTING

TUBE - adapter, tee to valve section

1шт.

8

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

9

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

1шт.

10

P4037535

END FITTING

ADAPTER - straight, control circuit hose

2шт.

11

P4037588

END FITTING

ADAPTER - straight, control circuit hose, at tee

2шт.

12

P2643363

BLOCK ASSY.

TEE - control circuit hose, at attachment valve

1шт.

13

P3837699

PIPE

TUBE - adapter, at attachment valve

1шт.

14

P3037546

UNION

ADAPTER - straight, at attachment valve

1шт.

15

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

16

REF

INSTRUCTION

HOSE - 15-3/4" (400 mm) long, control circuit, to tee to power sensing valve, cut from P1103640

1шт.

17

P37236

TEE

- control circuit hose to power sensing valve, see Figure 8-171, Ref. 32

1шт.

18

REF

INSTRUCTION

HOSE - 27-9/16" (700 mm) long, control circuit, to parallel supply valve, cut from P1103640

1шт.

19

P37236

TEE

- at parallel supply control valve

1шт.

20

P3037561

FITTING

TUBE - adapter, tee to parallel supply valve

1шт.

21

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- tube

1шт.

22

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

1шт.

23

P4037535

END FITTING

ADAPTER - straight, control circuit hose

1шт.

24

P3143306

BLOCK

VALVE ASSEMBLY - parallel supply control, parts list Figure 8-272

1шт.
