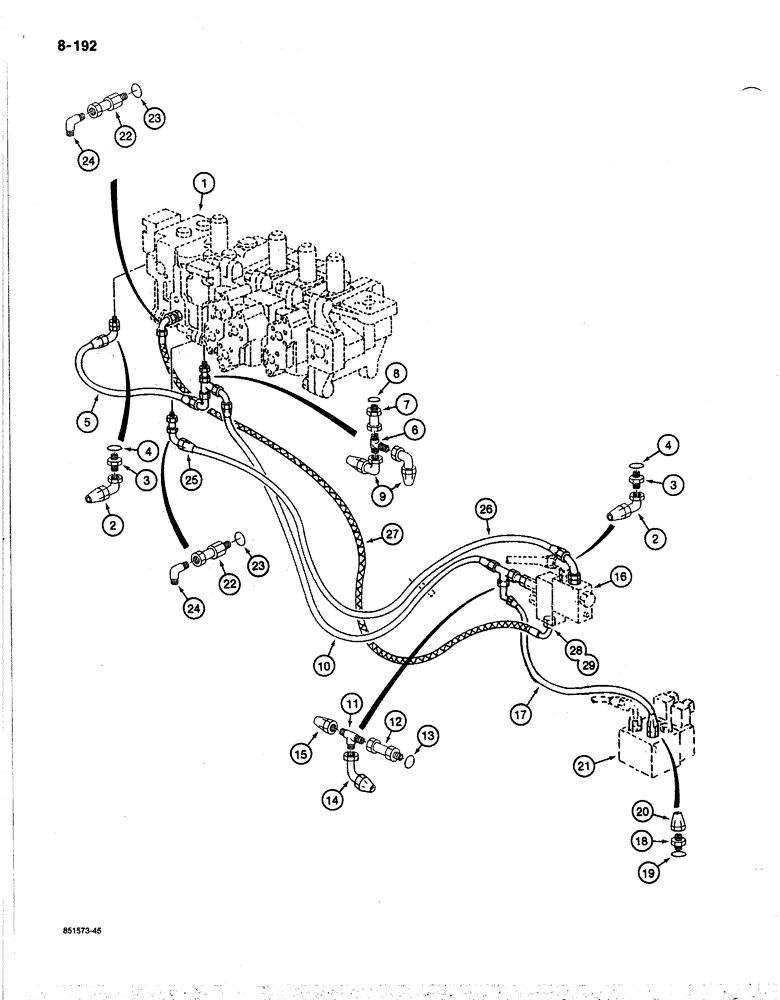

Запчасти Case 170B (8-192) - HYDRAULIC CONTROL CIRCUIT, FOR HEAVY LIFT, P.I.N. 74341 THRU 74399 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - attachment control, parts list Figures 8-234 - 8-242

1шт.

2

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

3

P3037546

UNION

ADAPTER - straight, at valve

2шт.

4

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

2шт.

5

REF

INSTRUCTION

HOSE - 15-3/4" (400 mm) long, control circuit, cut from P1103640

1шт.

6

P37236

TEE

- at heavy lift valve section

1шт.

7

P3037561

FITTING

TUBE - adapter, tee to valve section

1шт.

8

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- tube

1шт.

9

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

10

REF

INSTRUCTION

HOSE - control circuit, to parallel supply valve, 27-9/16" (700 mm) long, cut from P1103640

1шт.

11

P37236

TEE

- at parallel supply control valve

1шт.

12

P3037561

FITTING

TUBE - adapter, tee to parallel supply valve

1шт.

13

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

14

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

1шт.

15

P1237561

END FITTING

ADAPTER - straight, control circuit hose

1шт.

16

P3143306

BLOCK

VALVE ASSEMBLY - parallel supply control, parts list Figure 8-272

1шт.

17

REF

INSTRUCTION

HOSE - 27-9/16" (700 mm) long, control circuit, to solenoid control valve, cut from P1103640

1шт.

18

P3037546

UNION

ADAPTER - at solenoid control valve

1шт.

19

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

20

P4037535

END FITTING

ADAPTER - straight, control circuit hose

1шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid control, see Figure 8-266 for solenoid valve and correct block, Refs. 4 and 5

1шт.

22

P3037561

FITTING

TUBE - adapter, at parallel arm section

2шт.

23

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- tube

2шт.

24

P37075

ELBOW

ADAPTER - 90 degree, tube to control circuit hose

2шт.

25

P4037535

END FITTING

ADAPTER - straight, control circuit hose

2шт.

26

REF

INSTRUCTION

HOSE - control circuit, to parallel supply valve, 39-3/8" (1000 mm) long, cut from P1103640

1шт.

27

P4831901

HOSE

- 31-1/2" (800 mm) long, parallel arm section to parallel supply control valve

1шт.

28

P3037546

UNION

ADAPTER - hose to parallel supply control valve

1шт.

29

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.
