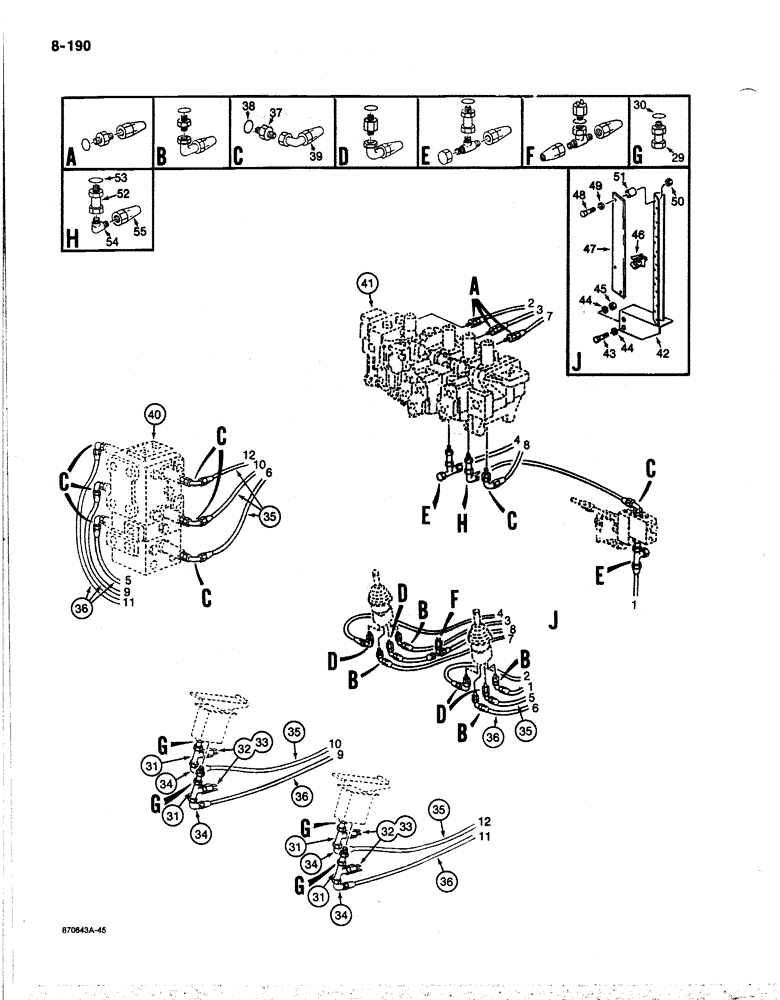

Запчасти Case 170B (8-190) - HYDRAULIC CONTROL CIRCUIT, TO MAIN CONTROL VALVES, P.I.N. 74400 THRU 74456 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
29
P4037546
FITTING
TUBE ASSEMBLY - adapter, at foot control valve, Includes: Ref. 30
4шт.
30
P7046042
SEAL
O-RING - tube
1шт.
31
P537294
TEE
- sender to control circuit
4шт.
32
P1241847
ELECTRO/HYD CONTACT
SENDER - electrical, see Figure 4-72 for electrical connections
4шт.
33
P344419
WASHER, SEALING
SEAL -, Serial Range: sender-tee
4шт.
34
P4037537
END FITTING
adapter - 90 degree, control circuit hose
4шт.
35
REF
INSTRUCTION
HOSE - 157-1/2" 4000 mm)long, control circuit, cut from P1103640
3шт.
36
REF
INSTRUCTION
HOSE - 177" (4500 mm) long, control circuit, cut from P1103640
3шт.
37
P3037546
UNION
ADAPTER - 90 degree, control circuit hose
6шт.
38
L33215
O-RING,0.737" ID x 0.943" OD x 0.103"
- adapter
6шт.
39
P4037537
END FITTING
ADAPTER - 90 degree, control circuit hose
6шт.
40
REF
INSTRUCTION
VALVE ASSEMBLY - swing and drive control, parts list Figures 8-244 - 8-250
1шт.
41
REF
INSTRUCTION
VALVE ASSEMBLY - attachment control, parts list Figures 8-234 - 8-242
1шт.
42
P4127150
SUPPORT
BRACKET - support, control circuit hose retainers
1шт.
43
P1133839
SCREW
BOLT - hex head, 10 mm x 45 mm
2шт.
44
P4328796
WASHER
SPACER - bolt, 7 mm thick
4шт.
45
P34598
SAFETY NUT
NUT - hex, self-locking, 10 mm
2шт.
46
P2036942
SUPPORT
RETAINER - control circuit hose
18шт.
47
P2023258
PLATE
- support bracket
1шт.
48
P833889
SCREW
BOLT - hex head, 6 mm x 50 mm
2шт.
49
P3528799
WASHER
SPACER - bolt, 4 mm thick
2шт.
50
P234513
SAFETY NUT
NUT - hex, self-locking, 6 mm
2шт.
51
P1231865
SPACER
- plate to support bracket
2шт.
52
P3037561
FITTING
TUBE - adapter, hose from attachment valve to parallel supply valve
1шт.
53
L33215
O-RING,0.737" ID x 0.943" OD x 0.103"
- adapter
1шт.
54
P37075
ELBOW
- 90 degree, tube to hose adapter
1шт.
55
P4037535
END FITTING
ADAPTER - straight, control circuit hose
1шт.
Выбрано товаров: 27
