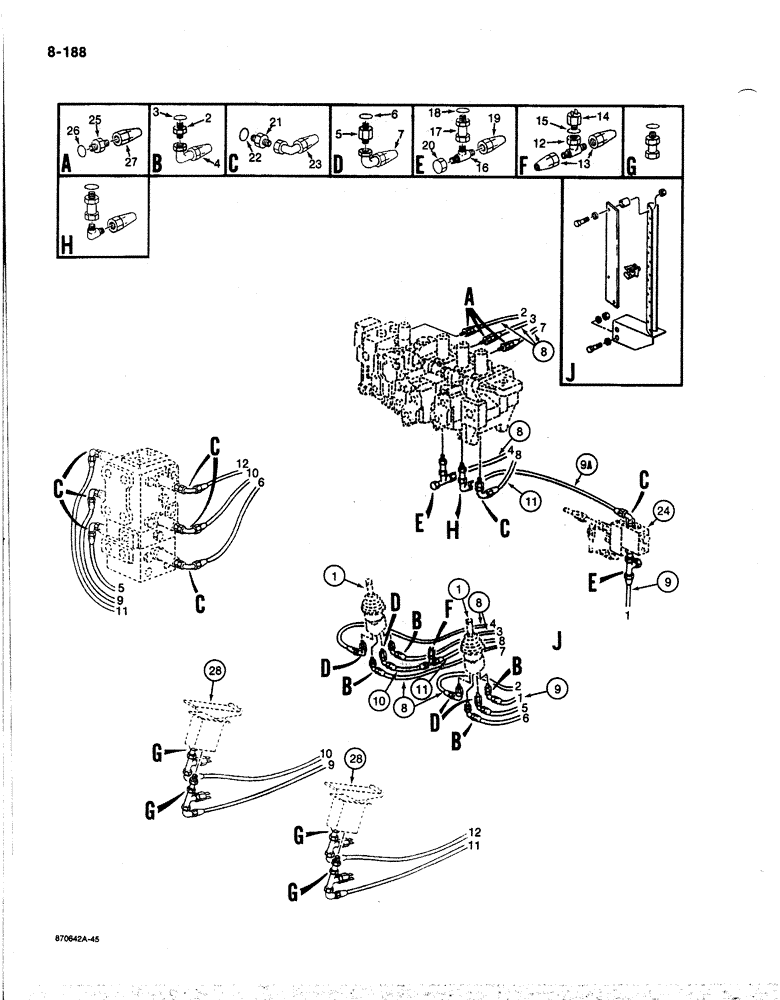

Запчасти Case 170B (8-188) - HYDRAULIC CONTROL CIRCUIT, TO MAIN CONTROL VALVES, P.I.N. 74400 THRU 74456 (08) - HYDRAULICS

1

P2643328

BLOCK ASSY.

VALVE ASSEMBLY - hand control, see Figures 8-256 and 8-258 for correct valve assembly and components

2шт.

2

P4037504

UNION

ADAPTER ASSEMBLY - straight, short, at hand control valves, Includes: Ref. 3

4шт.

3

P7046042

SEAL

O-RING - adapter

1шт.

4

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

4шт.

5

P4037505

UNION

ADAPTER - straight, long, at hand control valve, Includes: Ref. 6

4шт.

6

P7046042

SEAL

O-RING - adapter

1шт.

7

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

4шт.

8

REF

INSTRUCTION

HOSE - 126" (3200 mm) long, control circuit, cut from P1103640

4шт.

9

REF

INSTRUCTION

HOSE - 78-3/4" (2000 mm) long, control circuit, cut from P1103640

1шт.

9a

REF

INSTRUCTION

HOSE - 31-1/2" (800 mm) long, control circuit, cut from P1103640

1шт.

10

REF

INSTRUCTION

HOSE - 51-3/16" (1300 mm) long, control circuit, cut from P1103640

1шт.

11

REF

INSTRUCTION

HOSE - 78-3/4" (2000 mm) long, control circuit, cut from P1103460

1шт.

12

P537294

TEE

- control, Serial Range: circuit,-sender

1шт.

13

P4037535

END FITTING

ADAPTER - straight, control circuit hose

2шт.

14

P1241847

ELECTRO/HYD CONTACT

SENDER - electrical, see Figure 4-58 for electrical connections

1шт.

15

P344419

WASHER, SEALING

SEAL - electrical sender

1шт.

16

P37236

TEE

- control circuit, at attachment control valve and parallel supply valve

2шт.

17

P3037561

FITTING

TUBE - adapter, Serial Range: tee-valve

2шт.

18

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- tube

2шт.

19

P4037535

END FITTING

ADAPTER - straight, control circuit hose

2шт.

20

P237406

BLANK-OFF PLUG

CAP - tee

2шт.

21

P3037546

UNION

ADAPTER - straight, to attachment and parallel supply control valve

2шт.

22

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

2шт.

23

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

24

P3143306

BLOCK

VALVE ASSEMBLY - parallel supply, parts list Figure 8-272

1шт.

25

P3037546

UNION

ADAPTER - straight, to attachment control valve

3шт.

26

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

3шт.

27

P4037535

END FITTING

ADAPTER - straight, control circuit hose

3шт.

28

P1643394

BLOCK ASSY.

VALVE ASSEMBLY - foot control, see Figures 8-262 and 8-264 for correct valve assembly and components

2шт.
