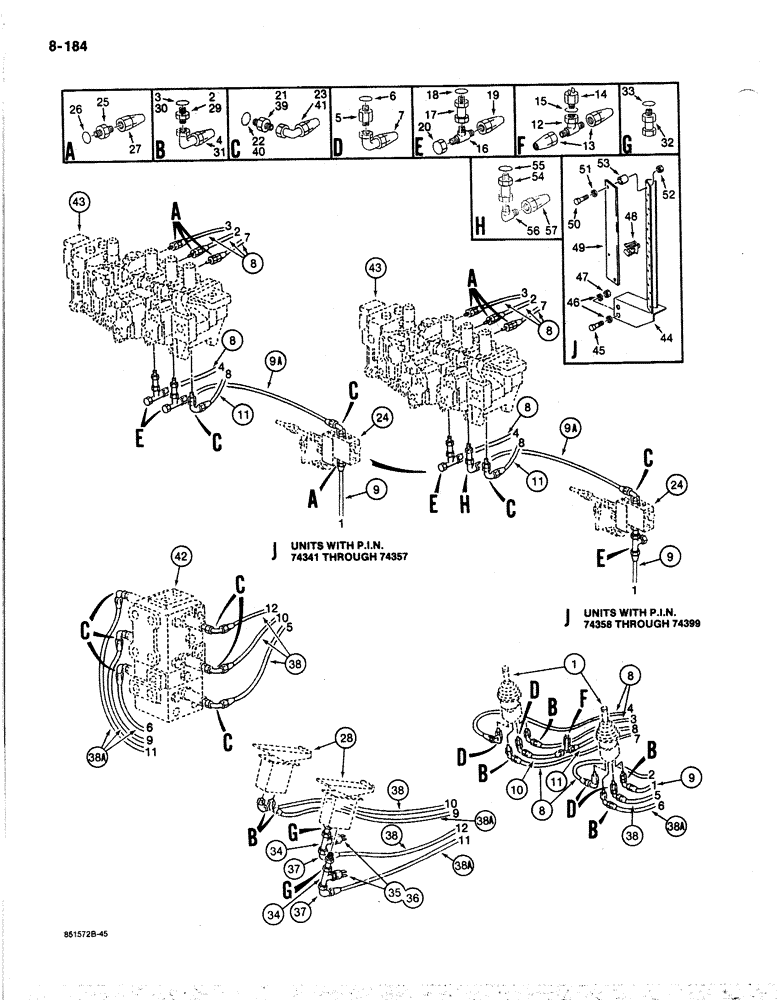

Запчасти Case 170B (8-184) - HYDRAULIC CONTROL CIRCUIT, TO MAIN CONTROL VALVES, P.I.N. 74341 THRU 74399 (08) - HYDRAULICS

1

P2643328

BLOCK ASSY.

VALVE ASSEMBLY - hand control, see Figures 8-256 and 8-258 for correct valve assembly and components

2шт.

2

P4037504

UNION

ADAPTER - straight, short, at hand control valves

4шт.

3

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter

4шт.

4

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

4шт.

5

P3237580

UNION

ADAPTER - straight, long, at hand control valve

4шт.

6

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter

4шт.

7

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

4шт.

8

REF

INSTRUCTION

HOSE - 126" (3200 mm) long, control circuit, cut from P1103640

4шт.

9

REF

INSTRUCTION

HOSE - 78-3/4" (2000 mm) long, control circuit, cut from P1103640

4шт.

9a

REF

INSTRUCTION

HOSE - 31-1/2" (800 mm) long, control circuit, cut from P1103640

1шт.

10

REF

INSTRUCTION

HOSE - 51-3/16" (1300) long, control circuit, cut from P1103640

1шт.

11

REF

INSTRUCTION

HOSE - 78-3/4" (2000 mm) long, control circuit, cut from P1103640

1шт.

12

P537294

TEE

- control, Serial Range: circuit,-sender

1шт.

13

P4037535

END FITTING

ADAPTER - straight, control circuit hose

2шт.

14

P1241847

ELECTRO/HYD CONTACT

SENDER - electrical, see Figure 4-56 for electrical connections

1шт.

15

P344419

WASHER, SEALING

SEAL - electrical sender

1шт.

16

P37236

TEE

- control circuit, at attachment control valve and parallel supply valve

2шт.

17

P3037561

FITTING

TUBE - adapter, Serial Range: tee-valve

2шт.

18

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- tube

2шт.

19

P4037535

END FITTING

ADAPTER - straight, control circuit hose

2шт.

20

P237406

BLANK-OFF PLUG

CAP - tee

2шт.

21

P3037546

UNION

ADAPTER - straight - to attachment and parallel supply control valve

2шт.

22

L3215

O-RING - adapter

2шт.

23

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

24

P3143306

BLOCK

VALVE ASSEMBLY - parallel supply, parts list Figure 8-272

1шт.

25

P3037546

UNION

ADAPTER - straight, to attachment and parallel supply control valve

3-4шт.

26

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

3-4шт.

27

P4037535

END FITTING

ADAPTER - straight, control circuit hose

3-4шт.

28

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, see Figures 8-206 and 8-262 for correct valve

2шт.

29

P4037504

UNION

ADAPTER - straight, at foot control valve

2шт.

30

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter

2шт.

31

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

32

P2337590

FITTING

TUBE - adapter, at foot control valve

2шт.

33

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter

2шт.

34

P537294

TEE

- sender to control circuit

2шт.

35

P1241847

ELECTRO/HYD CONTACT

SENDER - electrical, see Figure 4-68 for electrical connections

2шт.

36

P344419

WASHER, SEALING

SEAL -, Serial Range: sender-tee

2шт.

37

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

38

REF

INSTRUCTION

HOSE - control circuit, 157-1/2" (4000 mm) long, cut from P1103640

3шт.

38a

REF

INSTRUCTION

HOSE - control circuit, 177-3/16" (4500 mm) long, cut from P1103640

3шт.

39

P3037546

UNION

ADAPTER - straight, at swing and travel control valve

6шт.

40

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

6шт.

41

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

6шт.

42

REF

INSTRUCTION

VALVE ASSEMBLY - swing and drive control, parts list Figures 8-244 - 8-250

1шт.

43

REF

INSTRUCTION

VALVE ASSEMBLY - attachment control, parts list Figures 8-234 - 8-242

1шт.

44

P4127150

SUPPORT

BRACKET - support, control circuit hose retainers

1шт.

45

P1133839

SCREW

BOLT - support bracket

2шт.

46

P4328796

WASHER

SPACER - bracket bolt

4шт.

47

P34598

SAFETY NUT

NUT - bracket bolt

2шт.

48

P2036942

SUPPORT

RETAINER - control circuit hose

18шт.

49

P2023258

PLATE

- support bracket

1шт.

50

P433846

SCREW

BOLT - plate mounting

2шт.

51

P3528799

WASHER

SPACER - mounting bolt

2шт.

52

P234513

SAFETY NUT

NUT - mounting bolt

2шт.

53

P1231865

SPACER

- plate to support bracket

2шт.

54

P3037561

FITTING

TUBE - adapter, hose from attachment valve to parallel supply valve, P.I.N. 74358 - 74399 only

1шт.

55

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- tube, P.I.N. 74358 - 74399 only

1шт.

56

P37075

ELBOW

- 90 degree, tube to hose adapter, P.I.N. 74358 - 74399 only

1шт.

57

P4037535

END FITTING

ADAPTER - straight, control circuit hose, P.I.N. 74358 - 74399 only

1шт.
