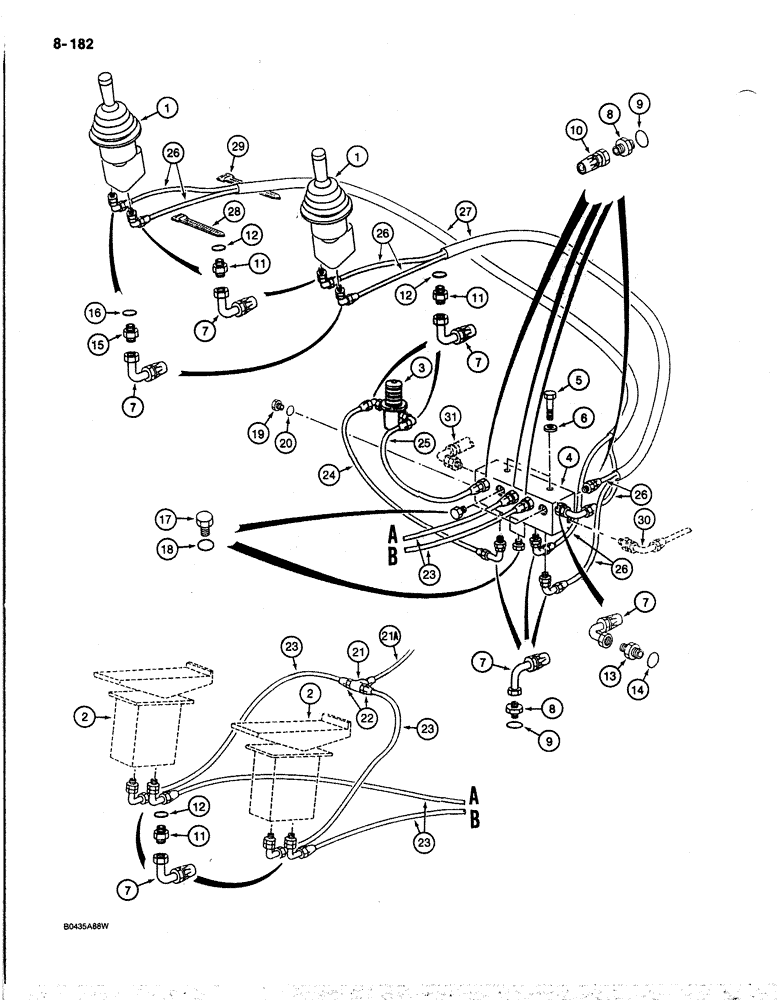

Запчасти Case 170B (8-182) - HYDRAULIC CONTROL CIRCUIT, MANIFOLD TO HAND AND FOOT CONTROL VALVES, P.I.N. 74398 & 74400 THRU 74456 (08) - HYDRAULICS

1

P2643328

BLOCK ASSY.

VALVE ASSEMBLY - hand control, see Figures 8-256 and 8-258 for correct valve assembly and components

2шт.

2

P1643394

BLOCK ASSY.

VALVE ASSEMBLY - foot control, see Figures 8-262 and 8-264 for correct valve assembly and components

2шт.

3

P1443532

PUMP

- foot

1шт.

4

P2643329

BLOCK ASSY.

MANIFOLD - control circuit

1шт.

5

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

6

P3528795

WASHER

SPACER - bolt

2шт.

7

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hoses

14шт.

8

P3037546

UNION

ADAPTER - straight

7шт.

9

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

7шт.

10

P4037535

END FITTING

ADAPTER - straight, control circuit hoses

4шт.

P4037504

UNION

ADAPTER ASSEMBLY - straight, Includes: Refs. 11, 12

8шт.

11

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

12

P7046042

SEAL

- adapter

1шт.

13

P2337591

UNION

ADAPTER - straight

1шт.

14

P1230443

O-RING

- adapter

1шт.

P4037505

UNION

ADAPTER ASSEMBLY - straight, Includes: Refs. 15, 16

2шт.

15

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

16

P7046042

SEAL

- adapter

1шт.

17

P1737451

PLUG

- manifold ports

4шт.

18

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- plug

4шт.

19

P1737443

PLUG

- manifold port, end

1шт.

20

P1230443

O-RING

- plug

1шт.

21

P37236

TEE

- control circuit lines

1шт.

21a

REF

INSTRUCTION

HOSE - control circuit, pressure, see Figure 8-172 for pilot control circuit

1шт.

22

P4037535

END FITTING

ADAPTER - straight, control circuit hoses

2шт.

23

REF

INSTRUCTION

HOSE - 27-9/16" (700 mm) long, control circuit, cut from P1103640

4шт.

24

REF

INSTRUCTION

HOSE - 19-11/16" (500 mm) long, control circuit, cut from P1103640

1шт.

25

REF

INSTRUCTION

HOSE - 15-3/4" (400 mm) long, control circuit, cut from P1103640

1шт.

26

REF

INSTRUCTION

HOSE - 63" (1600 mm) long, control circuit, cut from P1103640

4шт.

27

P4931937

LOOM

SLEEVE - control circuit hoses from hand control valves

2шт.

28

P51946

CLAMP

STRAP - tie, control circuit hoses, small

1шт.

29

P136922

CLAMP

STRAP - tie, control circuit hoses, large

1шт.

30

REF

INSTRUCTION

HOSE - control circuit, pressure, see Figure 8-172 for pilot control circuit

1шт.

31

REF

INSTRUCTION

HOSE - control circuit, return, see Figure 8-164 for leak return circuit

1шт.
