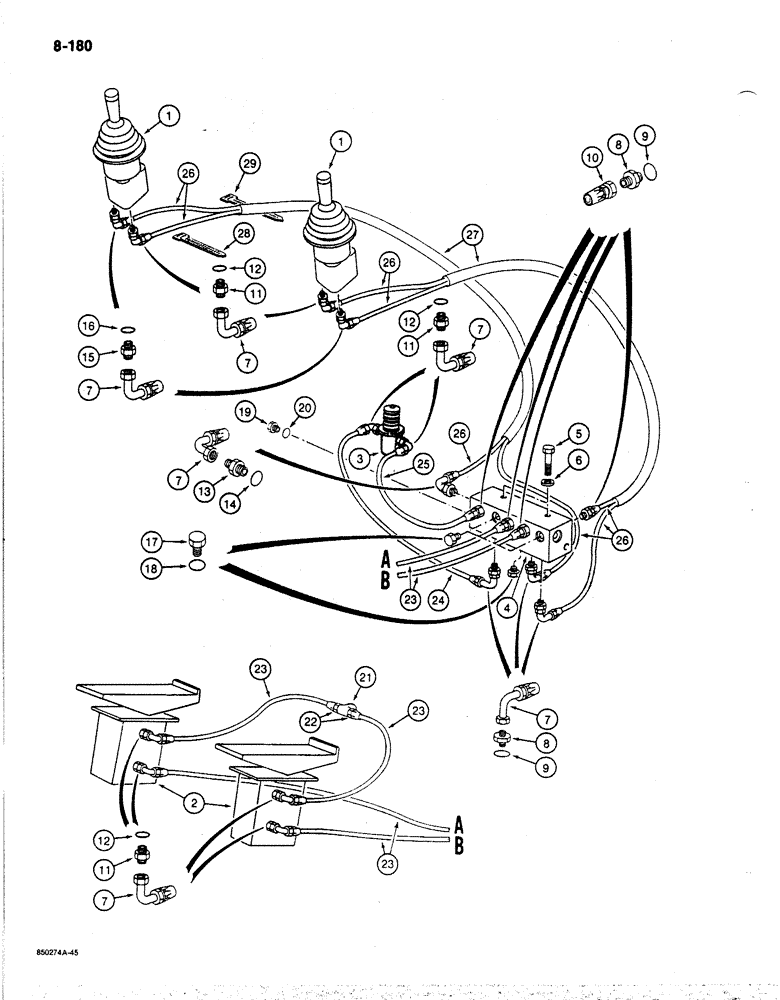

Запчасти Case 170B (8-180) - HYDRAULIC CONTROL CIRCUIT, MANIFOLD TO HAND AND FOOT CONTROL VALVES, P.I.N. 74341 THRU 74397 & 75399 (08) - HYDRAULICS

1

P2643328

BLOCK ASSY.

VALVE ASSEMBLY - hand control, see Figures 8-256 and 8-258 for correct assembly and components

2шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, see Figures 8-260 and 8-262 for correct valve

2шт.

3

P1443532

PUMP

- foot

1шт.

4

P2643329

BLOCK ASSY.

MANIFOLD - control circuits

1шт.

5

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

6

P3528795

WASHER

SPACER - bolt

2шт.

7

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hoses

14шт.

8

P3037546

UNION

ADAPTER - straight

7шт.

9

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

7шт.

10

P4037535

END FITTING

ADAPTER - straight, control circuit hoses

4шт.

11

P4037504

UNION

ADAPTER - straight

8шт.

12

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter

8шт.

13

P2337591

UNION

ADAPTER - straight

1шт.

14

P1230443

O-RING

- adapter

1шт.

15

P3237580

UNION

ADAPTER - straight ( replaced P3247580 )

2шт.

16

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter

2шт.

17

P1737451

PLUG

- manifold ports

4шт.

18

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- plug

4шт.

19

P1737451

PLUG

- manifold port, end

1шт.

20

P1230443

O-RING

- plug

1шт.

21

P37236

TEE

- control circuit lines

1шт.

22

P4037535

END FITTING

ADAPTER - straight, control circuit hoses

2шт.

23

REF

INSTRUCTION

HOSE - 27-9/16" (700 mm) long, control circuit, cut from P1103640

4шт.

24

REF

INSTRUCTION

HOSE - 19-11/16" (500 mm) long, control circuit, cut from P1103640

1шт.

25

REF

INSTRUCTION

HOSE - 15-3/4" (400 mm) long, control circuit, cut from P1103640

1шт.

26

REF

INSTRUCTION

HOSE - 63" (1600 mm) long, control circuit, cut from P1103640

4шт.

27

P491937

SLEEVE - control circuit hoses from hand control valves

2шт.

28

P51946

CLAMP

STRAP - tie, control circuit hoses, small

1шт.

29

P136922

CLAMP

STRAP - tie, control circuit hoses, large

1шт.
