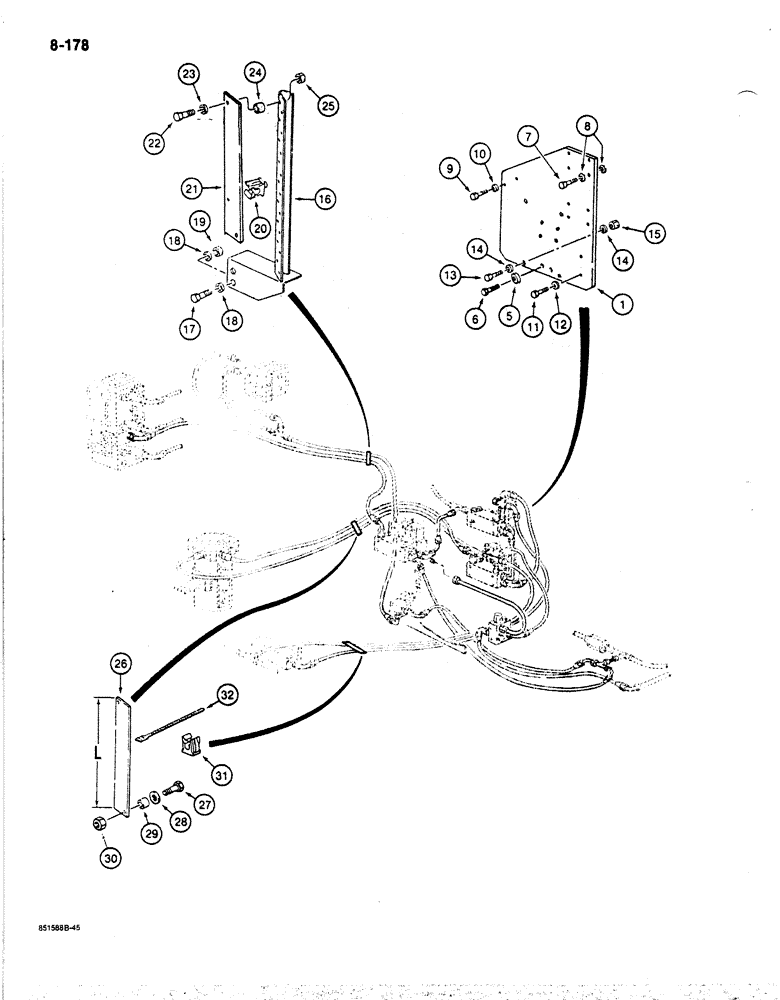

Запчасти Case 170B (8-178) - HYDRAULIC CONTROL CIRCUIT, SOLENOID VALVE BRACKETS AND HOSE CLAMPS, P.I.N. 74358 THRU 74456 (08) - HYDRAULICS

1

P4127152

LARGE PLATE

BRACKET - mounting, solenoid control and relief valve

1шт.

5

P3528799

WASHER

SPACER - mounting bracket bolt

2шт.

6

P733035

SCREW

BOLT - hex head, mounting bracket

2шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Mounting, Solenoid Control Valves to Bracket Hex, M8 x 25, 8.8

12шт.

8

P3528794

WASHER

SPACER - mounting bolt

24шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Mounting, Solenoid Control Valve to Bracket Hex, M8 x 25, 8.8

2шт.

10

P3528794

WASHER

SPACER - mounting bolt

2шт.

11

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 30 mm, plated

2шт.

12

P4328729

WASHER

SPACER - mounting bolt

2шт.

13

P933818

SCREW

BOLT - mounting bracket

4шт.

14

P3528795

WASHER

SPACER - mounting bracket

8шт.

15

P34598

SAFETY NUT

NUT - mounting bracket bolt

4шт.

16

P4127150

SUPPORT

BRACKET - control circuit hose retainers

1шт.

17

P1133839

SCREW

BOLT - bracket mounting

2шт.

18

P4328796

WASHER

SPACER - mounting bolt

4шт.

19

P34598

SAFETY NUT

NUT - mounting bracket bolt

2шт.

20

P2036942

SUPPORT

RETAINER - control circuit hoses

1шт.

21

P2023258

PLATE

SUPPORT - bracket

1шт.

22

P433846

SCREW

BOLT - support bracket

2шт.

23

P3528799

WASHER

SPACER - bracket bolt, thin

2шт.

24

P1231865

SPACER

- bracket bolt, thick

2шт.

25

P234513

SAFETY NUT

NUT - bracket bolt

2шт.

26

P2023258

PLATE

SUPPORT - control circuit hose retainers, 15" (381 mm) long

1шт.

26

P2023256

PLATE

SUPPORT - control circuit hose retainers, 11-11/16" (297 mm) long

1шт.

26

P2023257

PLATE

SUPPORT - control circuit hose retainers, 8-3/8" (213 mm) long

1шт.

27

P433846

SCREW

BOLT - hex head, hose retainer support

2шт.

28

P3528799

WASHER

SPACER - support bolt, thin

2шт.

29

P1231865

SPACER

- support bolt, thick

2шт.

30

P234513

SAFETY NUT

NUT - bracket bolt

2шт.

31

P2036942

SUPPORT

RETAINER - control circuit hoses

1шт.

32

P51946

CLAMP

TIE STRAP - control circuit hoses

1шт.
