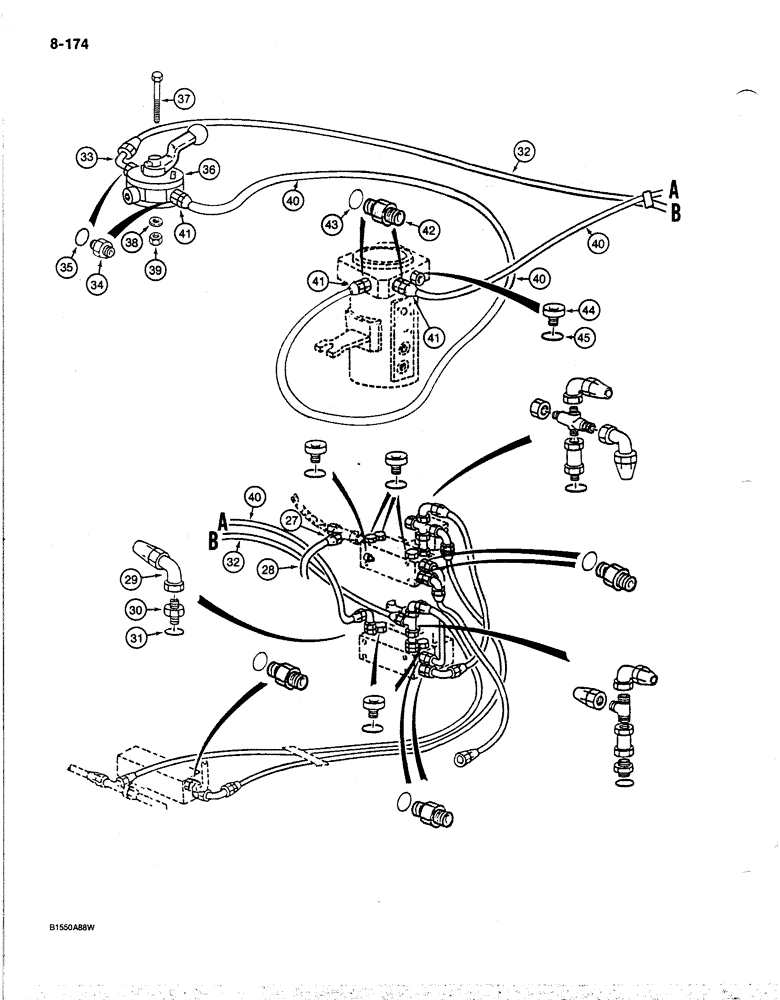

Запчасти Case 170B (8-174) - HYDRAULIC CONTROL CIRCUIT, FOR SOLENOID CONTROL VALVES, P.I.N. 74417 THRU 74456 (08) - HYDRAULICS

27

P4037535

END FITTING

ADAPTER - straight, control circuit hose

1шт.

28

REF

INSTRUCTION

HOSE - 15-3/4"(400 mm) long, control circuit, cut from P1103640, see Ref. 16 on Figure 8-170

1шт.

29

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

1шт.

30

P3037546

UNION

ADAPTER - straight, control circuit hose

1шт.

31

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

32

REF

INSTRUCTION

HOSE - 126" (3200 mm) long, control circuit, cut from P1103640

1шт.

33

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

1шт.

34

P4037504

UNION

ADAPTER - straight, control circuit hose, Includes: Ref. 35

2шт.

35

P7046042

SEAL

O-RING - adapter

1шт.

36

P3143660

BLOCK ASSY.

VALVE ASSEMBLY - selector

1шт.

37

P32918

SCREW

BOLT - hex head, 6 mm x 45 mm

2шт.

38

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

39

P234513

SAFETY NUT

NUT - hex, 6 mm

2шт.

40

REF

INSTRUCTION

HOSE - 98-3/8" (2500 mm) long, control circuit, cut from P1103640

2шт.

41

P4037535

END FITTING

ADAPTER - straight, control circuit hose

3шт.

42

P2337589

UNION

ADAPTER - straight, control circuit hose

2шт.

43

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

2шт.

44

P1737444

PLUG

- solenoid control valve

1шт.

45

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- plug

1шт.
