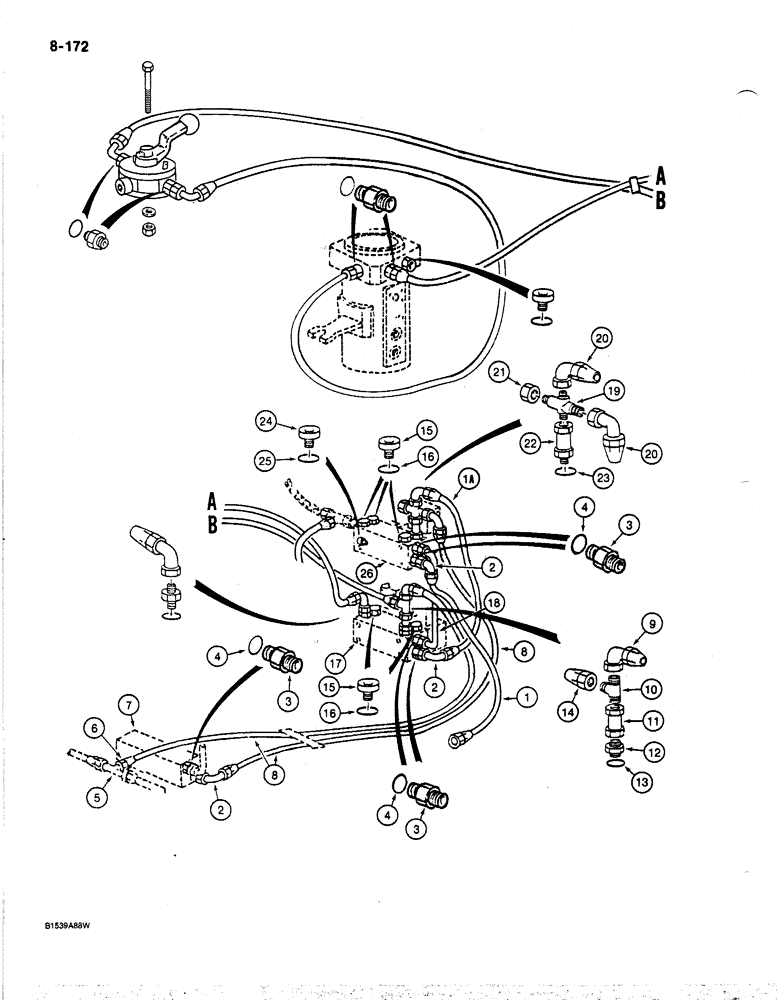

Запчасти Case 170B (8-172) - HYDRAULIC CONTROL CIRCUIT, FOR SOLENOID CONTROL VALVES, P.I.N. 74417 THRU 74456 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
HOSE - 19-11/16" (500 mm) long, control circuit, cut from P1103640 see Ref. 6A on Figure 8-170
1шт.
1a
REF
INSTRUCTION
HOSE - 19-11/16" (500 mm) long, control circuit, cut from P1103640
1шт.
2
P4037537
END FITTING
ADAPTER - 90 degree, control circuit hose
3шт.
3
P2337591
UNION
ADAPTER - straight, control circuit hose
5шт.
4
P1230443
O-RING
- adapter
5шт.
5
P37236
TEE
- hoses, see Figure 8-182, Ref. 21
1шт.
6
P4037535
END FITTING
ADAPTER - straight, control circuit hose
1шт.
7
P2643329
BLOCK ASSY.
MANIFOLD - control circuit, see Figure 8-182, Ref. 4
1шт.
8
REF
INSTRUCTION
HOSE - control circuit, 63" (1600 mm) long, cut from P1103640
2шт.
9
P4037537
END FITTING
ADAPTER - 90 degree, control circuit hose
1шт.
10
P37236
TEE
- control circuit hose
1шт.
11
P1937672
PIPE
TUBE - adapter, tee to solenoid valve
1шт.
12
P3037546
UNION
ADAPTER - straight, control circuit hose
1шт.
13
L33215
O-RING,0.737" ID x 0.943" OD x 0.103"
- adapter
1шт.
14
P4037535
END FITTING
ADAPTER - straight, control circuit hose
1шт.
15
P1737451
PLUG
- solenoid block
5шт.
16
L33215
O-RING,0.737" ID x 0.943" OD x 0.103"
- plug
5шт.
17
REF
INSTRUCTION
BLOCK - manifold, solenoid valve, see Figure 8-266 for solenoid valve and correct block (Refs. 4 and 5)
1шт.
18
P8047602
PIPE
TUBE - connecting, solenoid control valves
1шт.
19
P937219
CROSS
TEE - control circuit, at solenoid valve
1шт.
20
P4037537
END FITTING
ADAPTER - 90 degree, control circuit hose
2шт.
21
P237406
BLANK-OFF PLUG
CAP - tee
1шт.
22
P3037561
FITTING
TUBE - adapter, tee to solenoid valve
1шт.
23
L33215
O-RING,0.737" ID x 0.943" OD x 0.103"
- adapter
1шт.
24
P1737443
PLUG
- solenoid control valve
1шт.
25
P1230443
O-RING
- plug
1шт.
26
REF
INSTRUCTION
BLOCK - manifold, solenoid valve, see Figure 8-266 for solenoid valve and correct block (Refs. 4 and 5)
1шт.
Выбрано товаров: 27
