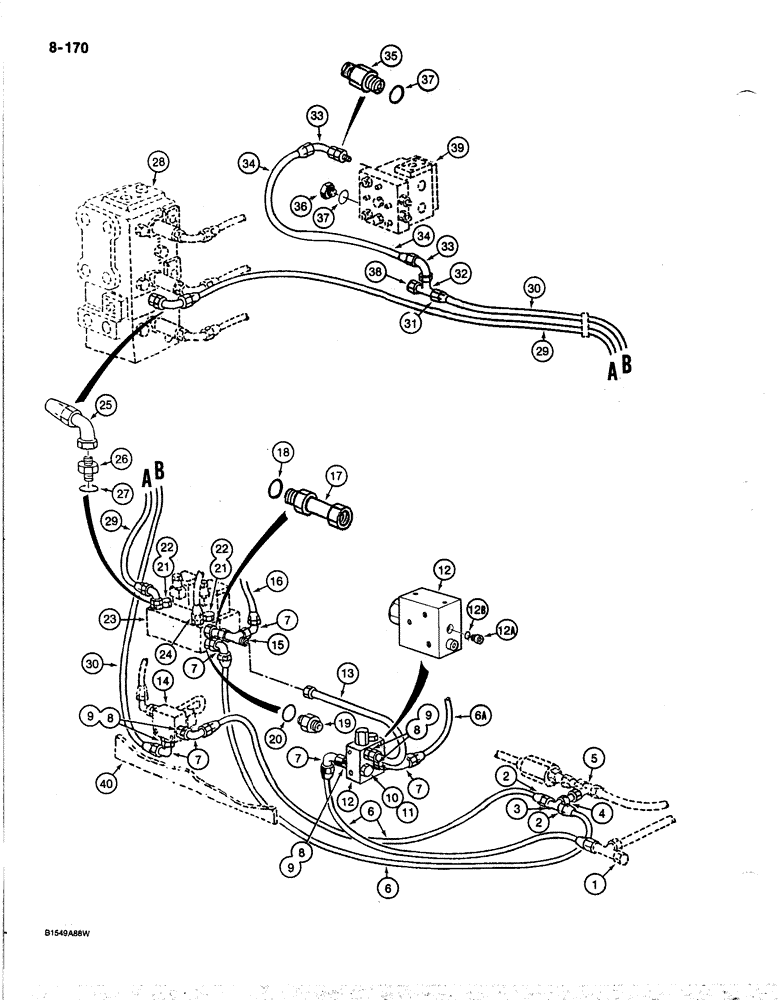

Запчасти Case 170B (8-170) - HYDRAULIC CONTROL CIRCUIT, FOR SOLENOID CONTROL VALVES, P.I.N. 74417 THRU 74456 (08) - HYDRAULICS

1

P537267

TEE

- control circuit, see Figure 8-142, Ref. 15

1шт.

2

P4037535

END FITTING

ADAPTER - straight, control circuit hose

2шт.

3

P37236

TEE

- control circuit hose

1шт.

4

P1937672

PIPE

TUBE - adapter, to control circuit tee

1шт.

5

P537222

TEE

- return tubes to cooler, see Figure 8-142, Ref. 13

1шт.

6

REF

INSTRUCTION

HOSE - 19-11/16" (500 mm) long, control circuit, cut from P1103640

1шт.

6a

REF

INSTRUCTION

HOSE - 19-11/16" (500 mm) long, control circuit, cut from P1103640, see Figure 8-172, Ref. 1

1шт.

7

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

6шт.

8

P4037504

UNION

ADAPTER - straight, at solenoid and relief valve, Includes: Ref. 9

5шт.

9

P7046042

SEAL

O-RING - adapter

1шт.

10

P1737452

PLUG

- relief valve

1шт.

11

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

1шт.

P1843398

BLOCK ASSY.

VALVE ASSEMBLY - relief, control circuit, Includes: Refs. 12, 12A, 12B

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

P2537448

PLUG

ASSEMBLY - valve body, Includes: Refs. 12A, 12B

1шт.

12a

NSS

NOT SOLD SEPARAT

PLUG - valve body

1шт.

12b

P2230441

SEAL

O-RING - plug

1шт.

13

P6947140

PIPE

TUBE - relief valve to solenoid valve tee

1шт.

14

P3143633

BLOCK ASSY.

VALVE ASSEMBLY - solenoid control, parts list Figure 8-270

1шт.

15

P37236

TEE

- control circuit hose

1шт.

16

REF

INSTRUCTION

HOSE - control circuit, 15-3/4" (400 mm) long, cut from P1103640, see Ref. 28 on Figure 8-174

1шт.

17

P3037502

FITTING

ADAPTER - straight, at solenoid valve

1шт.

18

P1230443

O-RING

- adapter

1шт.

19

P2337591

UNION

ADAPTER - straight, at solenoid valve

1шт.

20

P1230443

O-RING

- adapter

1шт.

21

P1737451

PLUG

- solenoid valve

2шт.

22

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- plug

2шт.

23

REF

INSTRUCTION

BLOCK - manifold, solenoid valve, see Figure 8-266 for solenoid valve and correct block (Refs. 4 and 5)

1шт.

24

REF

INSTRUCTION

ADAPTER - hose, see Figure 8-196, Ref. 26

1шт.

25

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

26

P3037546

UNION

ADAPTER - straight, solenoid and center block valves

2шт.

27

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter

2шт.

28

REF

INSTRUCTION

VALVE ASSEMBLY - swing and drive control, parts list Figures 8-244 - 8-250

1шт.

29

REF

INSTRUCTION

HOSE - 98-3/8" (2500 mm) long, control circuit, cut from P1103640

1шт.

30

REF

INSTRUCTION

HOSE - 51-3/16" (1300 mm) long, control circuit, cut from P1103640

1шт.

31

P4037535

END FITTING

ADAPTER - straight, control circuit hose

1шт.

32

P37236

TEE

- control circuit hose

1шт.

33

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

34

REF

INSTRUCTION

HOSE - 27-9/16" (700 mm) long, control circuit, cut from P1103640

1шт.

35

P1343376

BLOCK ASSY.

ADAPTER - straight, control circuit hose to power sensing valve

1шт.

36

P1737451

PLUG

- power sensing valve

1шт.

37

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter and plug

2шт.

38

P237406

BLANK-OFF PLUG

CAP - tee, used when heavy lift feature is not installed

1шт.

39

P3143338

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, parts list Figure 8-274

1шт.

40

P4127152

LARGE PLATE

BRACKET - support, control circuit hoses, see Figure 8-178 for clamps and brackets

1шт.
