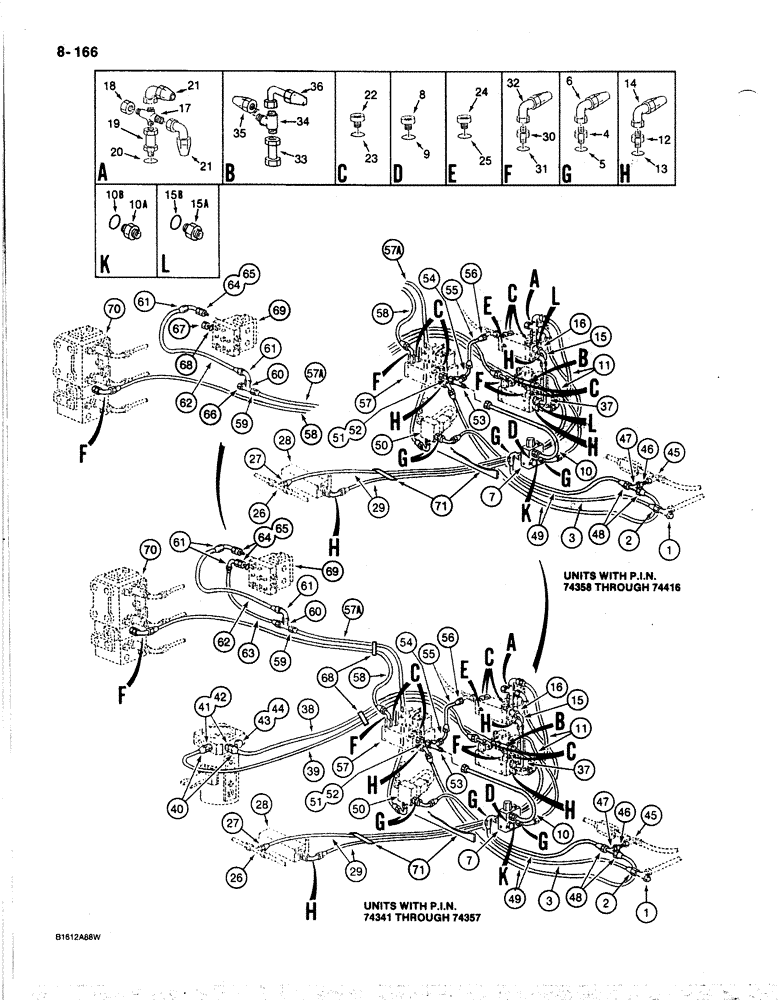

Запчасти Case 170B (8-166) - HYDRAULIC CONTROL CIRCUIT, FOR SOLENOID CONTROL VALVES, P.I.N. 74341 THRU 74416 (08) - HYDRAULICS

1

P537267

TEE

- control circuit, see reference number 15, Figure 8-142

1шт.

2

P4037535

END FITTING

ADAPTER - straight, control circuit hose

1шт.

3

REF

INSTRUCTION

HOSE - control circuit, 19-11/16" (500 mm) long, cut from P1103640

1шт.

4

P4037504

UNION

ADAPTER - straight, at solenoid and relief valve

4-5шт.

5

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter

4-5шт.

6

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

4шт.

7

P1843398

BLOCK ASSY.

VALVE - relief, control circuit

1шт.

8

P1737452

PLUG

- relief valve

1шт.

9

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

1шт.

10

P6947140

PIPE

TUBE - relief valve to solenoid valve tee

1шт.

10a

P4037504

UNION

ADAPTER - straight, relief valve tube, P.I.N. 74358 - 74416 only

1шт.

10b

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter, P.I.N. 74358 - 74416 only

1шт.

11

REF

INSTRUCTION

HOSE - 19-11/16" (500 mm) long, control circuit, cut from P1103640

2шт.

12

P2337591

UNION

ADAPTER - straight, at solenoid valve and manifold

4-6шт.

13

P1230443

O-RING

- adapter

4-6шт.

14

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

4шт.

15

P8047602

PIPE

TUBE - connecting, solenoid control valves

1шт.

15a

P2337591

UNION

ADAPTER - straight, connecting tube, P.I.N. 74358 - 74416

2шт.

15b

P1230443

O-RING

- adapter, P.I.N. 74358 - 74416

2шт.

16

REF

INSTRUCTION

BLOCK - manifold, solenoid valve, see Figure 8-266 for solenoid valve and correct block (Refs. 4 and 5)

1шт.

17

P937219

CROSS

TEE - control circuit, at solenoid valve

1шт.

18

P237406

BLANK-OFF PLUG

CAP - tee

1шт.

19

P3037561

FITTING

TUBE - adapter, tee to solenoid valve

1шт.

20

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

21

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

22

P1737451

PLUG

- solenoid control valve

7шт.

23

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- plug

7шт.

24

P1737443

PLUG

- solenoid control valve

1шт.

25

P1230443

O-RING

- plug

1шт.

26

P37236

TEE

- hoses, see Figure 8-180, Ref. 21

1шт.

27

P4037535

END FITTING

ADAPTER - straight, control circuit hose

1шт.

28

P2643329

BLOCK ASSY.

MANIFOLD - control circuit, see Figure 8-180, Ref. 4

1шт.

29

REF

INSTRUCTION

HOSE - 63" (1600 mm)long, control circuit, cut from P1103640

2шт.

30

P3037546

UNION

ADAPTER - straight, solenoid and center block valves

4шт.

31

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

4шт.

32

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

4шт.

33

P1937672

PIPE

TUBE - adapter, tee to solenoid valve

1шт.

34

P37236

TEE

- control circuit hose

1шт.

35

P4037535

END FITTING

ADAPTER - straight, control circuit hose

1шт.

36

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

1шт.

37

REF

INSTRUCTION

BLOCK - manifold, solenoid valve, see Figure 8-266 for solenoid valve and correct block (Refs. 4 and 5)

1шт.

38

REF

INSTRUCTION

HOSE - 98-1/2" (2500 mm) long, control circuit, cut from P1103640

1шт.

39

REF

INSTRUCTION

HOSE - 79-3/4" (2000 mm) long, control circuit, cut from P1103640

1шт.

40

P4037535

END FITTING

ADAPTER - straight, control circuit hose

2шт.

41

P2337589

UNION

ADAPTER - straight, at hydraulic swivel

2шт.

42

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

2шт.

43

P1737444

PLUG

- hydraulic swivel

1шт.

44

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- plug

1шт.

45

P537222

TEE

- return tubes to cooler, see reference number 13, Figure 8-142

1шт.

46

P1937672

PIPE

TUBE - adapter, to control circuit tee

1шт.

47

P37236

TEE

- control circuit hose

1шт.

48

P4037535

END FITTING

ADAPTER - straight, control circuit hose

2шт.

49

REF

INSTRUCTION

HOSE - 19-11/16" (500 mm) long, control circuit, cut from P1103640

2шт.

50

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid control, see Figures 8-269 and 8-271 for correct valve

1шт.

51

P3037502

FITTING

TUBE - adapter, tee to solenoid control valve

1шт.

52

P1230443

O-RING

- adapter

1шт.

53

P37236

TEE

- control circuit hose

1шт.

54

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

1шт.

55

REF

INSTRUCTION

HOSE - control circuit, 15-3/4" (400 mm) long, cut from P4403640

1шт.

56

P4037535

END FITTING

ADAPTER - straight, control circuit hose

1шт.

57

REF

INSTRUCTION

BLOCK - manifold, solenoid valve, see Figure 8-266 for solenoid valve and correct block (Refs. 4 and 5)

1шт.

57a

REF

INSTRUCTION

HOSE - 51-3/16" (1300 mm) long, control circuit, cut from P1103640

1шт.

58

REF

INSTRUCTION

HOSE - 98-7/16" (2500 mm) long, control circuit, cut from P1103640

1шт.

59

P4037535

END FITTING

ADAPTER - straight, control circuit hose

2шт.

60

P37236

TEE

- control circuit hose

1шт.

61

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

2-3шт.

62

REF

INSTRUCTION

HOSE - 27-9/16" (700 mm) long, control circuit, cut from P1103640

1шт.

63

REF

INSTRUCTION

HOSE - 31-1/2" (800 mm) long, control circuit, cut from P1103640, P.I.N. 74341 - 74399

1шт.

64

P1343376

BLOCK ASSY.

ADAPTER - straight, control circuit hose to power sensing valve

1-2шт.

65

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1-2шт.

66

P237406

BLANK-OFF PLUG

CAP - tee, used when heavy lift feature is not installed, P.I.N. 74400 - 74416

1шт.

67

P1737451

PLUG

- power sensing valve, P.I.N. 74400 - 74416

1шт.

68

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- plug, P.I.N. 74400 - 74416

1шт.

69

P3143338

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, parts list Figure 8-274

1шт.

70

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - swing and drive, parts list Figures 8-244 - 8-250

1шт.

71

P4127152

LARGE PLATE

BRACKET - support, control circuit hoses, see Figures 8-176 and 8-178 for clamps and brackets

1шт.
