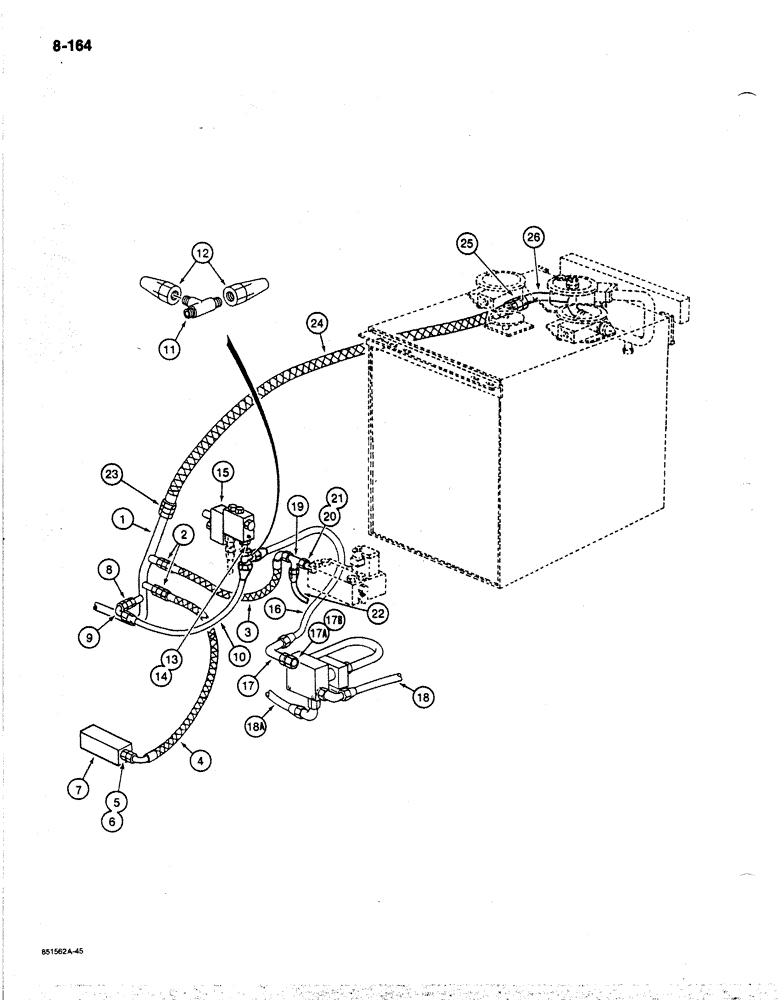

Запчасти Case 170B (8-164) - HYDRAULIC CIRCUIT RETURN LINES, LEAK RETURN TO FILTER, P.I.N. 74358 THRU 74456 (08) - HYDRAULICS

1

P3050119

MANIFOLD

TUBE - manifold, see reference number 23, Figure 8-158

1шт.

2

P37550

UNION

ADAPTER - hose to manifold tube

2шт.

3

P3731901

HOSE

- 19-11/16" (500 mm) long, return from solenoid control valve

1шт.

4

P4431992

HOSE

- 63" (1600 mm) long, return from control circuit manifold block

1шт.

5

P2337592

UNION

ADAPTER - hose to manifold block

1шт.

6

P1230443

O-RING

- adapter

1шт.

7

P2643329

BLOCK ASSY.

BLOCK - manifold, control circuit, see reference number 4, Figure 8-182

1шт.

8

P37553

UNION

ADAPTER - leak return hose to manifold tube

1шт.

9

P4037537

END FITTING

ADAPTER - 90 degree, leak return hose

1шт.

10

REF

INSTRUCTION

HOSE - 27-9/16" (700 mm) long, leak return, cut from P1103640

1шт.

11

P37236

TEE

- leak return hose, at parallel supply valve

1шт.

12

P4037535

END FITTING

ADAPTER - straight, leak return hose

2шт.

13

P3037561

FITTING

ADAPTER - straight, tee to parallel supply valve

1шт.

14

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

15

P3143306

BLOCK

VALVE ASSEMBLY - parallel supply control, parts list Figure 8-272

1шт.

16

REF

INSTRUCTION

HOSE - 15-3/4" (400 mm) long, leak return, cut from P1103640

1шт.

17

P4037537

END FITTING

ADAPTER - 90 degree, leak return hose

1шт.

17a

P4037504

UNION

ADAPTER - straight, at solenoid valve

1шт.

17b

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter

1шт.

18

REF

INSTRUCTION

HOSE - control circuit, at solenoid valve, see Figure 8-166, Ref. 49

1шт.

18a

REF

INSTRUCTION

HOSE - control circuit, at solenoid valve, see Figure 8-166, 57A

1шт.

19

P37285

TEE

- leak return, at solenoid control valve

1шт.

20

P2337593

FITTING

ADAPTER - tee to solenoid valve

1шт.

21

P1230443

O-RING

- adapter

1шт.

22

REF

INSTRUCTION

HOSE - control circuit, at solenoid valve, see Figure 8-166, Ref. 55

1шт.

23

P37551

UNION

ADAPTER - manifold tube to return hose

1шт.

24

P3231983

HOSE

- 39-3/8" (1000 mm) long, return to hydraulic reservoir

1шт.

25

P37551

UNION

ADAPTER - return hose to reservoir return tube

1шт.

26

P3050118

MANIFOLD

TUBE - leak return to reservoir, see Figure 8-144, Ref. 74

1шт.

27

P1843371

SHIN

VALVE ASSSEMBLY - solenoid, 35 bar, parts list Figure 8-266

1шт.

28

P3143633

BLOCK ASSY.

VALVE ASSEMBLY - solenoid, 13 bar, parts list Figure 8-270

1шт.
