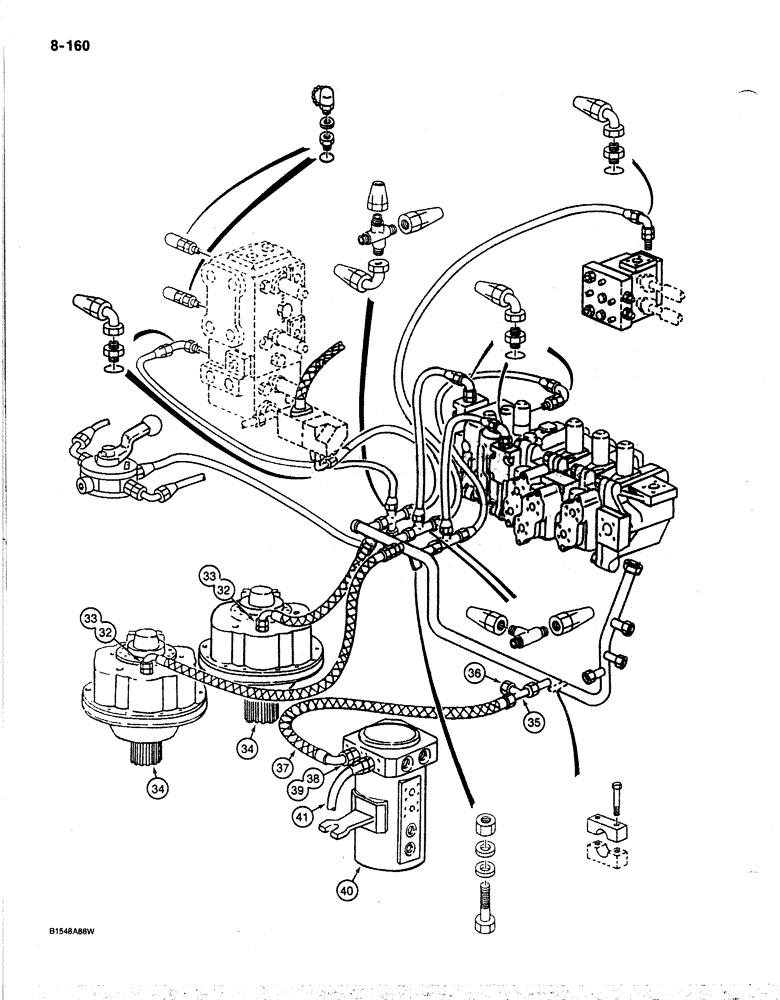

Запчасти Case 170B (8-160) - HYDRAULIC CIRCUIT RETURN LINES, LEAK RETURN TO FILTER, P.I.N. 74417 THRU 74456 (08) - HYDRAULICS

32

P3237565

UNION

ADAPTER - hose to swing motor

2шт.

33

R30989

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

- adapter

2шт.

34

P3143724

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - swing, parts list Figures 8-282 and 8-284

2шт.

35

P137789

BLANK-OFF PLUG

TEE - at manifold tube

1шт.

36

P137789

BLANK-OFF PLUG

CAP - at tee

1шт.

37

P3231996

HOSE

- 31-1/2" (800 mm) long, return, from hydraulic swivel

1шт.

38

P3037501

UNION

ADAPTER - hose, at swivel

1шт.

39

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

1шт.

40

P1737754

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-290

1шт.

41

REF

INSTRUCTION

HOSE - pilot circuit, see Figure 8-175, Ref. 40

1шт.
