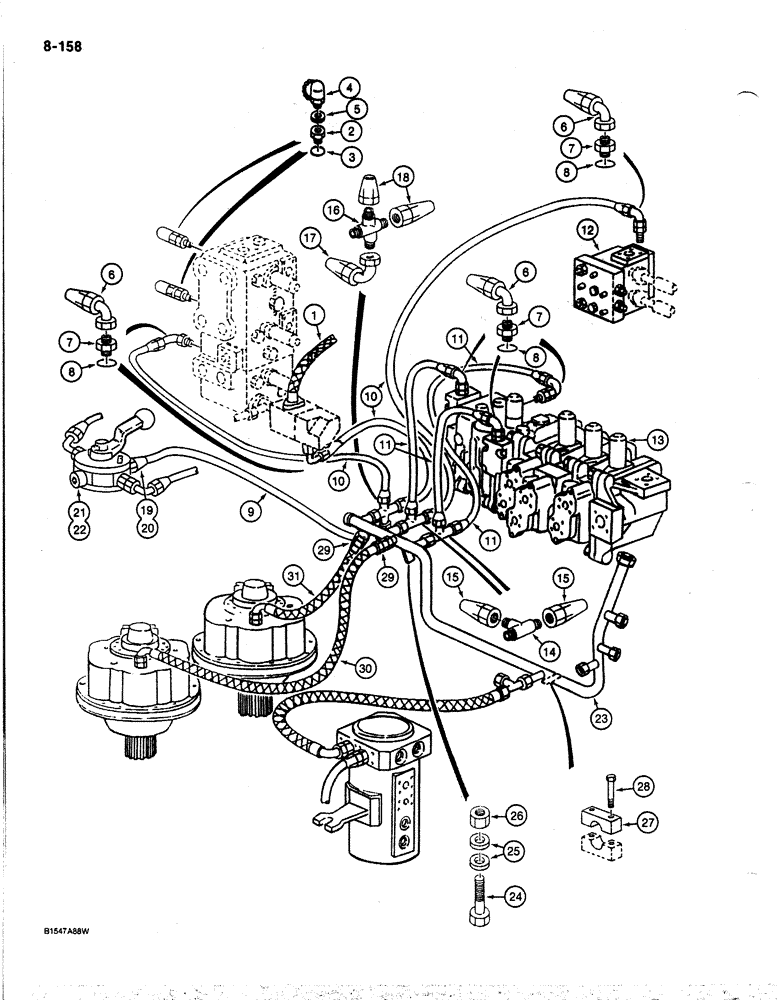

Запчасти Case 170B (8-158) - HYDRAULIC CIRCUIT RETURN LINES, LEAK RETURN TO FILTER, P.I.N. 74417 THRU 74456 (08) - HYDRAULICS

1

P5931927

HOSE

- return, at regulating valve, see Figure 8-150, Ref. 5

1шт.

2

P637358

RESTRICTOR

ADAPTER - straight, pressure check valve

2шт.

3

P1230443

O-RING

- adapter

2шт.

P4037516

MAKING-UP

VALVE ASSEMBLY - pressure check, Includes: Refs. 4, 5

2шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

5

P7046042

SEAL

- valve

1шт.

6

P4037537

END FITTING

ADAPTER - 90 degree, leak return hose

6шт.

7

P3037546

UNION

ADAPTER - at valve, leak return hose

6шт.

8

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

6шт.

9

REF

INSTRUCTION

HOSE - leak return, 39-3/8" (1000 mm) long, cut from P1103640

1шт.

10

REF

INSTRUCTION

HOSE - leak return, 31-1/2" (800 mm) long, cut from P1103640

3шт.

11

REF

INSTRUCTION

HOSE - leak return, 19-11/16" (500 mm) long, cut from P1103640

3шт.

12

P3143338

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, parts list Figure 8-274

1шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - attachment control, parts list Figures 8-234 - 8-242

1шт.

14

P37236

TEE

- leak return hose to manifold tube

2шт.

15

P4037535

END FITTING

ADAPTER - leak return, Serial Range: hose-tee

4шт.

16

P937219

CROSS

- leak return, Serial Range: hose-manifold

1шт.

17

P4037537

END FITTING

ADAPTER - 90 degree, leak return hose

1шт.

18

P4037535

END FITTING

ADAPTER - leak return, Serial Range: hose-cross

2шт.

19

P4037504

UNION

ADAPTER - leak return hose to tee, Includes: Ref. 20

1шт.

20

P7046042

SEAL

RING - adapter

1шт.

21

P1737452

PLUG

- selector valve

1шт.

22

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

1шт.

23

P3050119

MANIFOLD

TUBE - manifold, leak return hoses, see Figure 8-164 for, Serial Range: hoses-filter

1шт.

24

P833802

SCREW

BOLT - hex head, 10 mm x 50 mm

2шт.

25

P4328796

WASHER

SPACER - bolt, 7 mm thick

4шт.

26

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

27

P520303

SHIN

CLAMP - tube

1шт.

28

P28374

SCREW

BOLT - hex head, 10 mm x 50 mm

2шт.

29

P37550

UNION

ADAPTER - straight, hose to manifold tube

2шт.

30

P4431947

HOSE

- 49-1/4" (1250 mm) long, swing motor leak return

1шт.

31

P3731901

HOSE

- 24-13/16" (630 mm) long, swing motor leak return

1шт.
