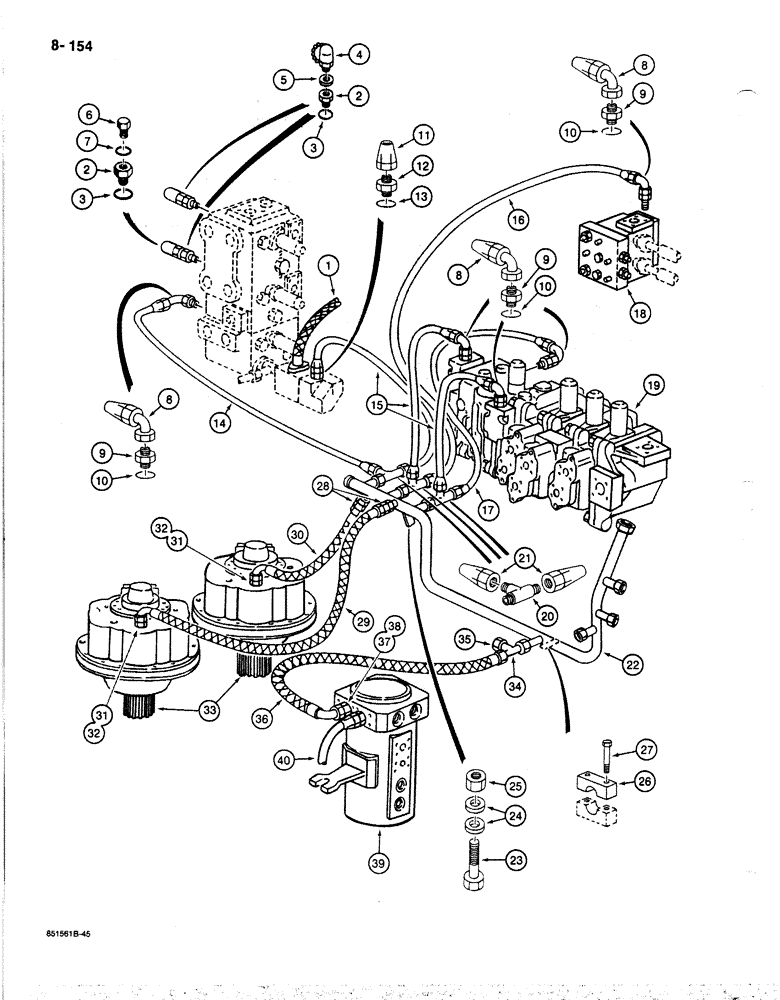

Запчасти Case 170B (8-154) - HYDRAULIC CIRCUIT RETURN LINES, LEAK RETURN TO FILTER, P.I.N. 74341 THRU 74416 (08) - HYDRAULICS

1

P5931927

HOSE

- return, from regulating valve, see Figure 8-146, Ref. 5

1шт.

2

P637358

RESTRICTOR

ADAPTER - straight, pressure check valve

2шт.

3

P1230443

O-RING

- adapter

2шт.

P4037516

MAKING-UP

VALVE ASSEMBLY - pressure check, 1 used on P.I.N. 74341 - 74357 - 2 used on P.I.N. 74358 - 74416, Includes: Refs. 4, 5

2шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

5

P7046042

SEAL

- valve

1шт.

6

P1737452

PLUG

- disconnect, used on P.I.N. 74341 - 74357 only, Includes: Ref. 7

1шт.

7

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug, used on P.I.N. 74341 - 74357 only

1шт.

8

P4037537

END FITTING

ADAPTER - 90 degree, leak return hose

5шт.

9

P3037546

UNION

ADAPTER - at valve, leak return hose

5шт.

10

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

5шт.

11

P4037535

END FITTING

ADAPTER - leak return hose, straight

1шт.

12

P3037546

UNION

ADAPTER - leak return hose, at valve

1шт.

13

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

14

REF

INSTRUCTION

HOSE - 31-1/2" (800 mm) long, leak return, cut from P1103640

1шт.

15

REF

INSTRUCTION

HOSE - 19-11/16" (500 mm) long, leak return, cut from P1103640

3шт.

16

REF

INSTRUCTION

HOSE - 31-1/2" (800 mm) long, leak return, cut from P1103640

1шт.

17

REF

INSTRUCTION

HOSE - 19-11/16" (500 mm) long, leak return cut from P1103640

1шт.

18

P3143338

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, parts list Figure 8-274

1шт.

19

REF

INSTRUCTION

VALVE ASSEMBLY - attachment control, parts list Figures 8-234 - 8-242

1шт.

20

P37236

TEE

- leak return hose to manifold tube

3шт.

21

P4037535

END FITTING

ADAPTER - leak return, Serial Range: hose-tee

6шт.

22

P3050119

MANIFOLD

TUBE - manifold, leak return hoses, see Figure 8-162 for hose and, Serial Range: tube-filter

1шт.

23

P133813

SCREW

BOLT - manifold

2шт.

24

P4328796

WASHER

SPACER - bolt

4шт.

25

P34598

SAFETY NUT

NUT - manifold bolt

2шт.

26

P520303

SHIN

CLAMP - tube

1шт.

27

P28374

SCREW

BOLT - tube clamp

2шт.

28

P37550

UNION

ADAPTER - straight, hose to manifold tube

2шт.

29

P4431947

HOSE

- 49-1/4" (1250 mm) long, swing motor leak return

1шт.

30

P3731901

HOSE

- 24-13/16" (630 mm) long, swing motor leak return

1шт.

31

P3237565

UNION

ADAPTER - hose to swing motor

2шт.

32

R30989

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

- adapter

2шт.

33

P3143724

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - swing, parts list Figures 8-282 and 8-284

2шт.

34

P37233

TEE

- at manifold tube

1шт.

35

P137789

BLANK-OFF PLUG

CAP - at tee

1шт.

36

P3231996

HOSE

- 31-1/2" (800 mm) long, return, from hydraulic swivel

1шт.

37

P3037501

UNION

ADAPTER - hose, at swivel

1шт.

38

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- ADAPTER

1шт.

39

P1737754

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-290

1шт.

40

REF

INSTRUCTION

HOSE - pilot circuit, see Figure 8-169, Ref. 39

1шт.
