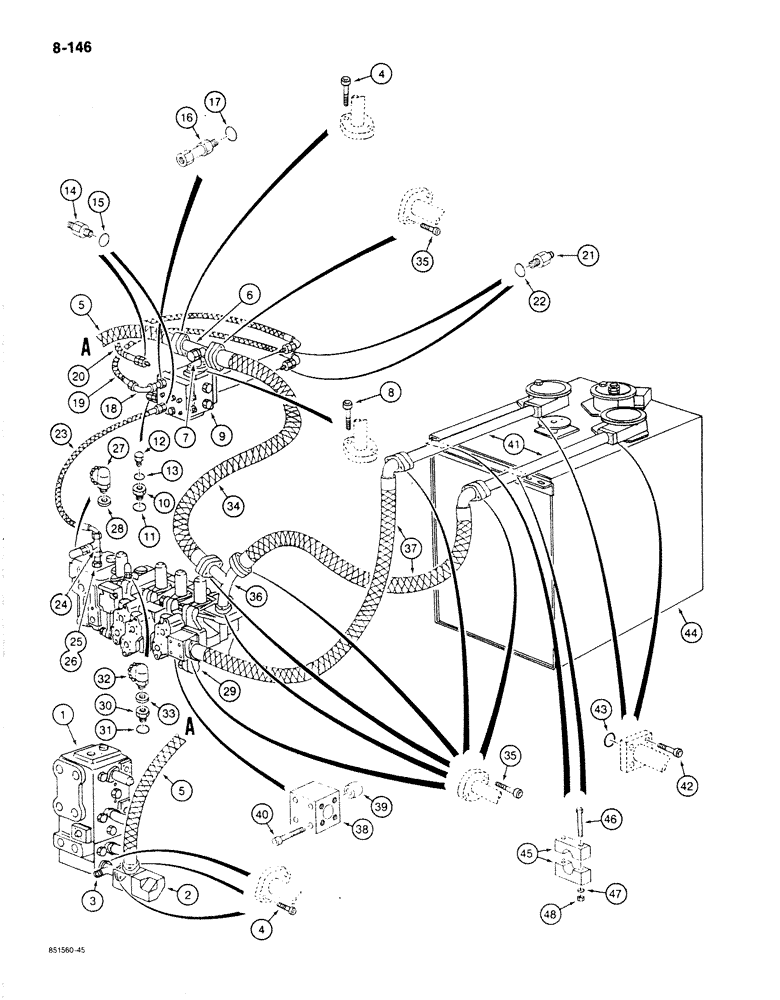

Запчасти Case 170B (8-146) - HYDRAULIC CIRCUIT RETURN LINES, TO FILTERS AT RESERVOIR, P.I.N. 74341 THRU 74352 & 74354 THRU 74360 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, swing and drive, parts list Figures 8-244 - 8-250

1шт.

2

P3443333

BLOCK ASSY.

VALVE ASSEMBLY - pressure regulating, 18 bar, see Figure 8-278, Refs. 9 - 15

1шт.

3

P3050109

MANIFOLD

TUBE - return, at regulating valve, see Figure 8-142, Ref. 1

1шт.

4

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Tube and hose flanges Hex Skt Hd, M12 x 40, 10.9

8шт.

5

P5931927

HOSE

- 39-3/8" (1000 mm) long, return, from regulating valve

1шт.

6

P3050110

MANIFOLD

TUBE - return, at power sensing valve

1шт.

7

P137413

PLUG

- return tube

1шт.

8

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Tube to valve Hex Soc Hd, M10 x 35, 10.9

2шт.

9

P3143338

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, parts list Figure 8-274

1шт.

10

P637358

RESTRICTOR

ADAPTER -, Serial Range: plug-valve

1шт.

11

P1230443

O-RING

- adapter

1шт.

12

P1737452

PLUG

- power sensing valve

1шт.

13

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

1шт.

14

P2337591

UNION

ADAPTER - short, Serial Range: hose-valve

2шт.

15

P1230443

O-RING

- adapter

2шт.

16

P2337593

FITTING

ADAPTER - long, Serial Range: hose-valve

1шт.

17

P1230443

O-RING

- adapter

1шт.

18

P137020

ELBOW-CONNECTION

TUBE -, Serial Range: adapter-hose

1шт.

19

P4431936

HOSE

- 24-13/16" (630 mm) long, return, power sensing valve

1шт.

20

P4431999

HOSE

- 19-11/16" (500 mm) long, return, power sensing valve

1шт.

21

P3037546

UNION

ADAPTER - short, Serial Range: hose-valve

2шт.

22

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

2шт.

23

P4431999

HOSE

- 19-11/16" (500 mm) long, main relief valve to power sensing valve

1шт.

24

P537294

TEE

- hose at main relief valve

1шт.

25

P3037502

FITTING

ADAPTER -, Serial Range: tee-valve

1шт.

26

P1230443

O-RING

- adapter

1шт.

P4037516

MAKING-UP

VALVE ASSEMBLY - pressure check, Includes: Refs. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

28

P7046042

SEAL

- valve

1шт.

29

REF

INSTRUCTION

VALVE ASSEMBLY - control, attachment, parts list Figures 8-234 - 8-242

1шт.

30

P637358

RESTRICTOR

ADAPTER - test port to heavy lift valve section

1шт.

31

P1230443

O-RING

- adapter

1шт.

P4037516

MAKING-UP

VALVE ASSEMBLY - pressure check, Includes: Refs. 32, 33

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

33

P7046042

SEAL

- valve

1шт.

34

P3231976

HOSE

- 24-13/16" (630 mm) long, power sensing valve to manifold tube

1шт.

35

P532924

SCREW

BOLT - tube and hose flange

14шт.

36

P3050107

MANIFOLD

TUBE - manifold, Serial Range: hoses-reservoir

1шт.

37

P3231980

HOSE

- 31-1/2" (800 mm) long, valve end cover and, Serial Range: manifold-reservoir

2шт.

38

P1337066

SHIN

BLOCK - adapter, hose to valve end cover

1шт.

39

P1528830

JUNCTION

ADAPTER - block to end cover

1шт.

40

P532948

SCREW

BOLT - block to end cover

4шт.

41

P3050108

PIPE

TUBE - return, Serial Range: hoses-filters

2шт.

42

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Tube flange to reservoir Hex Skt Hd, M12 x 40, 10.9

8шт.

43

P1230493

O-RING

-, Serial Range: flange-reservoir

2шт.

44

P1540224

OIL RESERVOIR

RESERVOIR - hydraulic oil,see Figure 8-126 for filters and breather

1шт.

45

P820304

SHIN

CLAMP - return, Serial Range: tubes-reservoir

4шт.

46

P33856

SCREW

BOLT - tube clamp

4шт.

47

P4328746

WASHER

SPACER - tube clamp bolt

4шт.

48

P134547

SAFETY NUT

NUT - tube clamp bolt

4шт.
