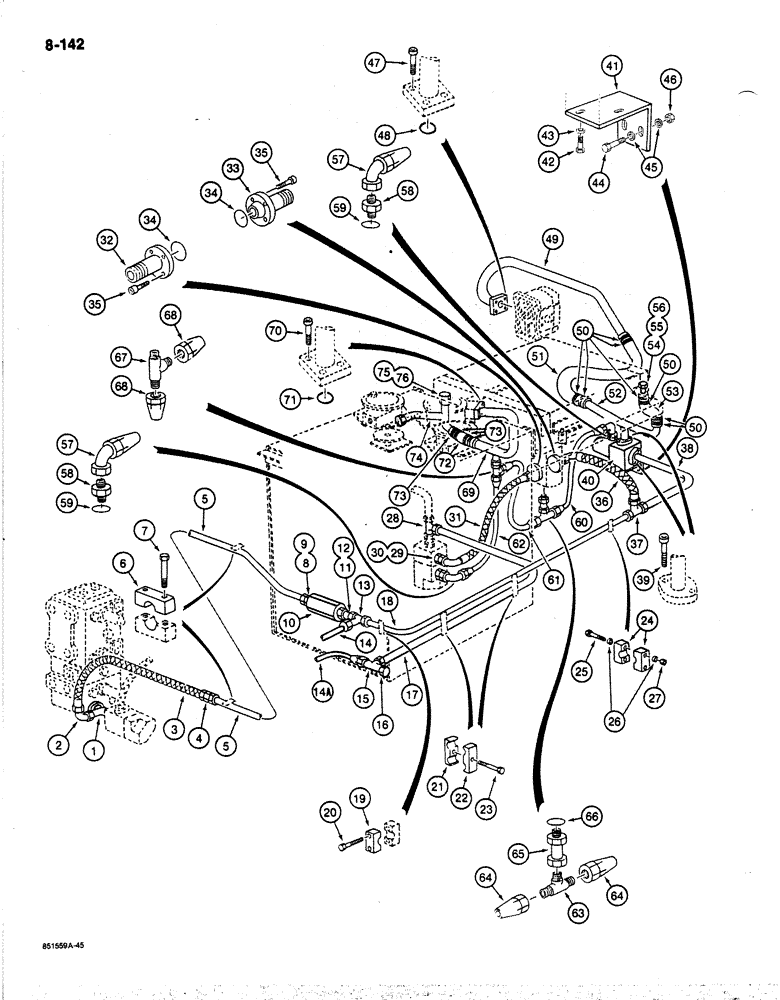

Запчасти Case 170B (8-142) - HYDRAULIC CIRCUIT RETURN LINES, TO OIL COOLER AND FAN MOTOR, P.I.N. 74341 THRU 74456 (08) - HYDRAULICS

1

P3050109

MANIFOLD

TUBE - return, at regulating valve, see Figure 8-150, Ref. 3

1шт.

2

P37078

ELBOW-CONNECTION

ELBOW - 90 degree, at return tube

1шт.

3

P3731957

HOSE

- 19-11/16" (500 mm) long, Serial Range: return-cooler

1шт.

4

P37554

UNION

ADAPTER - straight

1шт.

5

P8047603

PIPE

TUBE - return, to check valve

1шт.

6

P723438

SHIN

CLAMP - tube

2шт.

7

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- tube clamp Hex, M10 x 35, 8.8, Full Thd

4шт.

8

P3037506

UNION

ADAPTER - straight, at check valve

1шт.

9

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- adapter

1шт.

10

P2043310

BLOCK ASSY.

VALVE ASSEMBLY - check, parts list Figure 8-280

1шт.

11

P3037507

FITTING

ADAPTER - check, Serial Range: valve-tee

1шт.

12

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- adapter

1шт.

13

P537222

TEE

- return, Serial Range: tubes-cooler

1шт.

14

P1937672

PIPE

TUBE - to pilot circuit, see Figure 8-168, Ref. 46

1шт.

14a

REF

INSTRUCTION

HOSE - control circuit, see Figure 8-166, Ref. 3

1шт.

15

P537267

TEE

- to pilot circuit

1шт.

16

P237406

BLANK-OFF PLUG

CAP - tee

1шт.

17

P6947103

PIPE

TUBE - to pilot circuit tee

1шт.

18

P6947101

PIPE

TUBE - return, to cooler fan motor and regulator valve

1шт.

19

P820357

SHIN

CLAMP - tube, to tapped block

1шт.

20

P28374

SCREW

BOLT - tube clamp

2шт.

21

P1023403

SUPPORT

CLAMP - inner, double tube

2шт.

22

P1023404

SHIN

CLAMP - outer, double tube

2шт.

23

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex head, 12 mm - 1.75 x 45 mm, plated

2шт.

24

P723438

SHIN

CLAMP - single tube

2шт.

25

P33830

SCREW

BOLT - tube clamp

2шт.

26

P3528795

WASHER

SPACER - clamp bolt

4шт.

27

P34598

SAFETY NUT

NUT - hex, tube clamp bolt

2шт.

28

P37233

TEE

- at valve, see Figure 8-130, Ref. 27

1шт.

29

P3037521

UNION

ADAPTER - straight

1шт.

30

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- adapter

1шт.

31

P3231998

HOSE

- 39-3/8" (1000 mm) long, to cooler fan motor

1шт.

32

P3837759

SHIN

ADAPTER - hose to cooler fan motor

1шт.

33

P3837760

SHIN

ADAPTER - hose to cooler fan motor

1шт.

34

D54277

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

- adapter to motor

2шт.

35

P732958

SCREW

BOLT -, Serial Range: adapter-motor

8шт.

36

P3231997

HOSE

- 39-3/8" (1000 mm) long, cooler fan motor to tee ( replaced P3231986 0

1шт.

37

P537203

TEE

- return tube

1шт.

38

P6947137

PIPE

TUBE - return, to regulator valve

1шт.

39

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Flange, at regulator valve Hex Soc Hd, M10 x 35, 10.9

4шт.

40

P1143343

BLOCK ASSY.

VALVE ASSEMBLY - pressure regulating, 13 bar, see Figure 8-278, Refs. 1 - 8

1шт.

41

P4825642

ANGLE BAR

BRACKET - valve mounting

1шт.

42

P933818

SCREW

BOLT -, Serial Range: valve-bracket

2шт.

43

P4328730

WASHER

SPACER - valve mounting bolt

2шт.

44

P1133839

SCREW

BOLT - bracket mounting

2шт.

45

P3528795

WASHER

SPACER - bracket mounting bolt

4шт.

46

P34598

SAFETY NUT

NUT - bracket mounting bolt

2шт.

47

P732909

SCREW

BOLT - tube, Serial Range: flange-pump

4шт.

48

P30461

O-RING

- tube, Serial Range: flange-pump

1шт.

49

P5849091

PIPE

TUBE - cooler hydraulic pump to oil cooler

1шт.

50

P36935

COLLAR CLAMP

CLAMP - HOSE

8шт.

51

REF

INSTRUCTION

HOSE - pump to manifold, 31-1/2" (800 mm) long, cut from P1103610

1шт.

52

P3050117

MANIFOLD

TUBE - manifold, at regulator valve

1шт.

53

REF

INSTRUCTION

HOSE - manifold to hydraulic oil cooler, 15-3/4" (400 mm) long, cut from P1103610

1шт.

54

P3637646

PIPE

TUBE - oil cooler hose

1шт.

55

P2337595

UNION

ADAPTER - tube to oil cooler

1шт.

56

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- adapter

1шт.

57

P4037537

END FITTING

ADAPTER - 90 degree, hose

2шт.

58

P3037546

UNION

ADAPTER - straight, at valve ports

2шт.

59

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

2шт.

60

REF

INSTRUCTION

HOSE - tee to pressure regulator valve, 39-3/8" (1000 mm) long, cut from P1103640

1шт.

61

REF

INSTRUCTION

HOSE - cooler fan motor to manifold, 19-11/16" (500 mm) long, cut from P1103640

1шт.

62

REF

INSTRUCTION

HOSE - tee to pressure regulating valve, 31-1/2" (800 mm) long, cut from P1103640

1шт.

63

P37236

TEE

- hose, at cooler fan motor

1шт.

64

P4037534

ADAPTER - hose, straight

2шт.

65

P2337590

FITTING

TUBE - adapter, at cooler fan motor

1шт.

66

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter tube

1шт.

67

P37236

TEE

- hose, at manifold tube

1шт.

68

P4034535

ADAPTER - straight

2шт.

69

P3050112

MANIFOLD

TUBE - manifold, Serial Range: return-filter

1шт.

70

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Tube flange to filter Hex Skt Hd, M12 x 40, 10.9

4шт.

71

P1230493

O-RING

-, Serial Range: flange-filter

1шт.

72

REF

INSTRUCTION

HOSE - return to reservoir, 15-3/4" (400 mm) long, cut from P1103610

1шт.

73

P36935

COLLAR CLAMP

CLAMP - hose

4шт.

74

P3050118

MANIFOLD

TUBE - leak return, to reservoir, see Figure 8-162 for related hydraulics

1шт.

75

P2337595

UNION

CAP - leak return tube

1шт.

76

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- tube cap

1шт.
